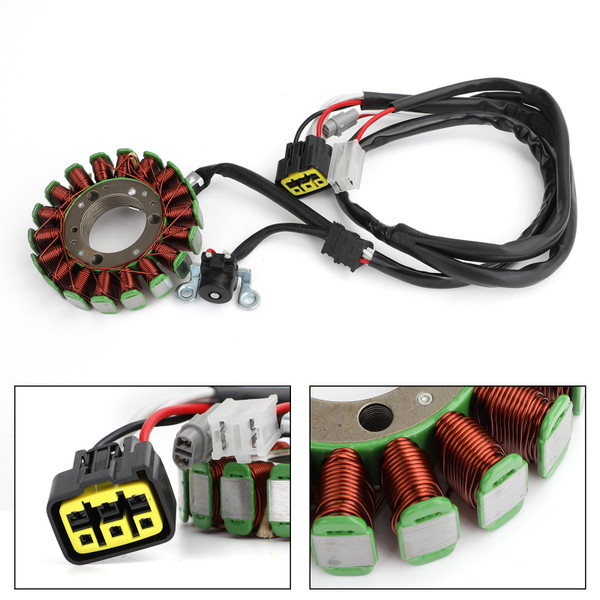

Stator Coil Pick Up For Yamaha WR250R 07-17 Yamaha WR250X 07-12 2014 16-17

MSRP: $113.98
$73.88
(You save $40.10 )
(No reviews yet) Write a Review
SKU:
M550-A347
Shipping:
Free Shipping

FREE fast shipping for USA. International delivery may take longer.

Magneto Generator Engine Stator Coil For Yamaha WR250R WR250X 2007-2017

FEATURES:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.
Highest grade copper windings, resistant to 200 degrees Celsius.
Pick up pulsar coil included.
Connector included.
All products shipped are tested.

SPECIFICATIONS:
Condition: Aftermarket 100% Brand New
Quanity: 1PC
Type: Generator Stator Coil
Replacement Part Number: 3D7-81410-00, 3D7-81410-01

Dimensions :
Interior diameter : 36.9mm/1.45"
Exterior diameter : 97mm/3.82"
Pole's Thickness : 21.8mm/0.85"
Pole's Width : 12.3mm/0.48"

Other specifications :
Number of wires: 9
Number of pins: 9
Number of plugs: 3
Number of fixation holes: 3(+1)
Number of poles: 18

FITMENT:
For Yamaha WR250R 2007-2017
For Yamaha WR250X 2007-2012/2014/2016-2017

PACKAGE INCLUDED:
1x Generator Stator Coil

NOTICE:
Before installing your new stator

Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
