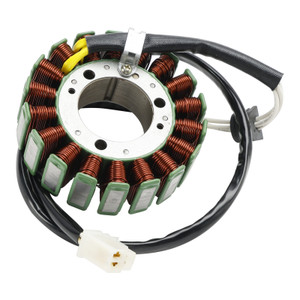

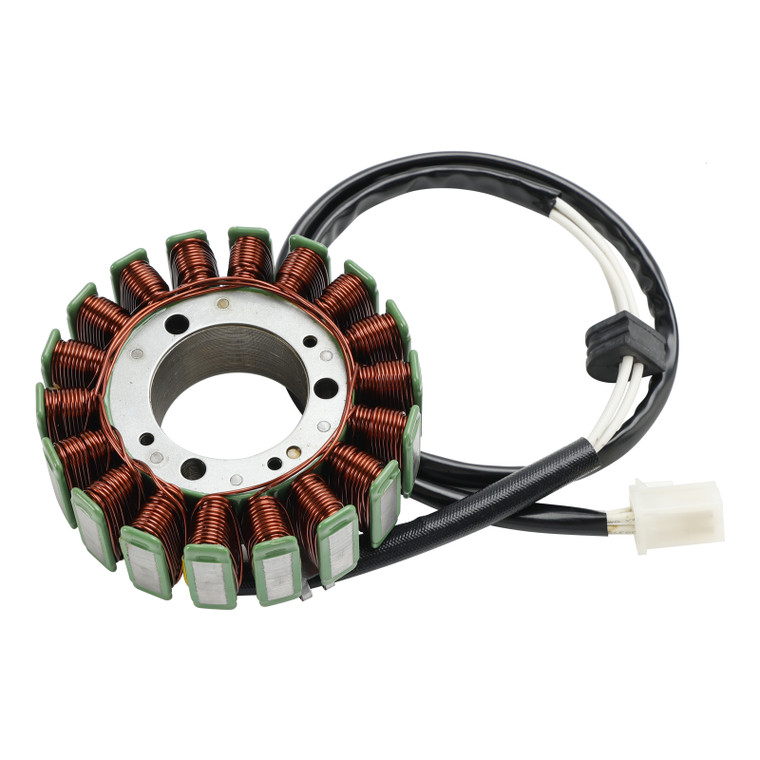

Ducati Monster 400 620 695 696 750 800 1000 S2R S4R Generator Stator 26440143B Generic

$49.88
SKU:
M550-D018
Shipping:
Free Shipping
Generator Stator Fit for Ducati Monster 696 796 800 900 1000 1100 - 26440143B

Features:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.
Connector included.
Rubber grommet included.
All products shipped are tested.

Specifications:
Condition: Aftermarket 100% Brand New
Quanity: 1PC
Type: Stator Coil

other specifications:
Number of wires: 3
Number of plugs: 1
Number of pins: 3
Number of poles: 18

Dimensions :
Exterior diameter : 104mm
Interior diameter : 42mm

Replacement Part Number:
26440143B

Fits Make/Model/Year:
Fit for Ducati Monster – 400 cc – 2000 – 2008
Fit for Ducati Monster Dark – 400 cc – 2005 – 2005
Fit for Ducati Monster ie – 620 cc – 2002 – 2006
Fit for Ducati Supersport ie – 620 cc – 2003 – 2004
Fit for Ducati Monster – 695 cc – 2007 – 2008
Fit for Ducati Monster – 696 cc – 2009 – 2013
Fit for Ducati 748 – 748 cc – 2001 – 2001
Fit for Ducati 748 R – 748 cc – 2001 – 2002
Fit for Ducati 748 S – 748 cc – 2001 – 2002
Fit for Ducati Monster ie – 750 cc – 2000 – 2002
Fit for Ducati Supersport – 750 cc – 2001 – 2002
Fit for Ducati Monster 796 – 796 cc – 2012 – 2012
Fit for Ducati Monster ie – 800 cc – 2003 – 2004
Fit for Ducati Monster S2R – 800 cc – 2005 – 2007
Fit for Ducati Supersport – 800 cc – 2003 – 2005
Fit for Ducati Monster – 900 cc – 2001 – 2002
Fit for Ducati Supersport SS – 900 cc – 2001 – 2002
Fit for Ducati 996 – 996 cc – 2001 – 2001
Fit for Ducati 996 R – 996 cc – 2001 – 2001
Fit for Ducati 996 S – 996 cc – 2001 – 2001
Fit for Ducati 998 – 998 cc – 2002 – 2004
Fit for Ducati 998 R – 998 cc – 2002 – 2004
Fit for Ducati 998 S – 998 cc – 2002 – 2004
Fit for Ducati 1000 GT – 1000 cc – 2007 – 2008
Fit for Ducati 1000 Sport S – 1000 cc – 2007 – 2008
Fit for Ducati Monster – 1000 cc – 2003 – 2005
Fit for Ducati Monster S – 1000 cc – 2005 – 2005
Fit for Ducati Monster S2R – 1000 cc – 2006 – 2008
Fit for Ducati Monster S4R – 1000 cc – 2007 – 2008
Fit for Ducati Monster S4RS – 1000 cc – 2007 – 2008
Fit for Ducati Multistrada – 1000 cc – 2003 – 2004
Fit for Ducati Multistrada – 1000 cc – 2005 – 2006
Fit for Ducati Multistrada S – 1000 cc – 2005 – 2006
Fit for Ducati Paul Smart – 1000 cc – 2006 – 2006
Fit for Ducati Supersport – 1000 cc – 2003 – 2006
Fit for Ducati Monster – 1100 cc – 2009 – 2010
Fit for Ducati Monster S – 1100 cc – 2009 – 2010
Fit for Ducati Multistrada – 1100 cc – 2007 – 2008
Fit for Ducati Multistrada S – 1100 cc – 2007 – 2008

(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitments)

Package Included:
1x 118mm Stator Generator

NOTICE:
Before installing your new stator

Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Battery condition is important. No stator can make up for a bad or weak battery. If in doubt charge your battery and have it load tested, or simply replace it.
ALWAYS START WITH A FULLY CHARGED BATTERY !
