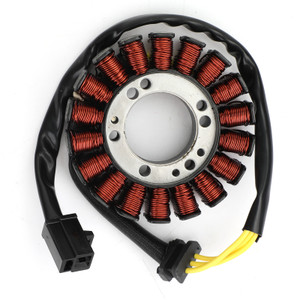

Magneto Generator Engine Stator Coil For MV Agusta F4 1000 2010-2015 u. Brutale 920 990 1090 2010-2013
Features:
1.Free Shipping
2.Low price and good quality
3.Easy and quick refund
4.Full day customer service support
5.Guaranteed Fitment£ºAlways the correct part
SPECIFICATIONS:
Condition: Aftermarket 100% Brand New
Quanity: 1PC
Type: Generator Stator Coil
Dimensions :
Interior diameter : 34mm / 1.35 inches
Exterior diameter : 93mm / 3.67 inches
Pole's Thickness : 25mm / 0.99 inches
Pole's Width : 10mm / 0.42 inches
Other Specifications :
Number of wires: 3
Number of pins: 3
Number of plugs: 1
Plug's L*W:16.5mm/0.65"*13mm/0.51 inches
Number of fixation holes: 8
Number of poles: 18
Fixation holes length: 20mm / 0.78 inches
REPLACEMENT PART NUMBER:
8000C0107
8000B4872
8000B9185
8000B8312
FITMENT:
Fit for MV Agusta 8000C0107
Fit for MV Agusta Turismo Veloce 800 2015-2017
Fit for MV Agusta Turismo Veloce 800 Lusso 2015-2017
Fit for MV Agusta Turismo Veloce 800 Edition 1 2015-2016
Fit for MV Agusta 8000B4872
Fit for MV Agusta 8000B9185
Fit for MV Agusta F41000 2013-2015
Fit for MV Agusta F41000S 2010-2012
Fit for MV Agusta F41000R 2011-2015
Fit for MV Agusta F41000RR 2011-2015
Fit for MV Agusta F41000RC 2015-2016
Fit for MV Agusta F41000 Frecce Tricolori 2011
Fit for MV Agusta Brutale B4 920 2011-2012
Fit for MV Agusta Brutale B4 990R 2010-2011
Fit for MV Agusta Brutale B4 1090R 2012-2013
Fit for MV Agusta Brutale B4 1090RR 2010-2013
Fit for MV Agusta 8000B8312
Fit for MV Agusta Dragster LH 2016
Fit for MV Agusta Dragster 2014-2017
Fit for MV Agusta Dragster RR 2015-2016
Fit for MV Agusta Rivale 800 2015-2017
Fit for MV Agusta Stradale 800 2015-2016
Fit for MV Agusta F3 675 RC 2016
Fit for MV Agusta F3 675 2012-2016
Fit for MV Agusta F3 675 Serie ORO 2013
Fit for MV Agusta F3 800 RC 2016
Fit for MV Agusta F3 800 2012-2016
Fit for MV Agusta F3 800 AGO 2014-2015
Fit for MV Agusta Brutale B3 675 2012-2015
Fit for MV Agusta Brutale B3 800 2013-2017
Fit for MV Agusta Brutale B3 800RR 2015-2016
PACKAGE INCLUDES:
1x Generator Stator Coil
NOTICE:
Before installing your new stator
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
