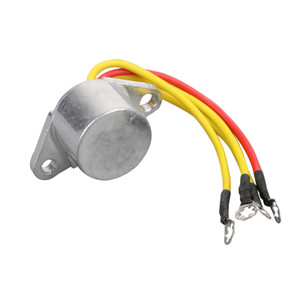

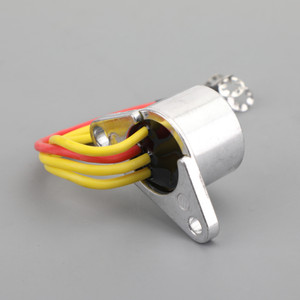

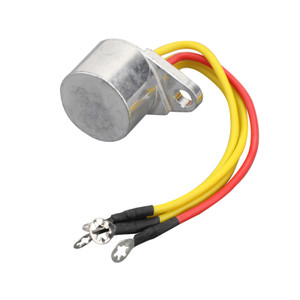

4-Wire Regulator Rectifier Fit For Johnson / Evinrude Outboard 4.5hp-60hp 173692 581366 581778
Features:
Direct replacement to your original unit.
Plug-and-play, direct fit, easy installation.
No assembly required.
Higher grade of electric components.
Improved heat sink and charging capabilities.
The quality exceeds or meet the OEM equipment.
All products shipped are tested.
Specifications:
Condition: Aftermarket 100% Brand New
Quanity: 1 PC
Type: Voltage Regulator Rectifier
Dimensions:
Length: 33.1mm / 1.30 inches
Width: 33.1mm / 1.30 inches
Height: 25mm / 0.98 inches
Mounting Holes: 47mm / 1.87 inches
Other Specifications:
Number of plug interface pins: 4
Number of Plugs: 4
Number of Wires: 4
Wiring Diagram:
Red - B+
Yellow - AC
Yellow - AC
Yellow - AC
Shell - Ground
Replacement Part Number:
173692
581366
581778
582304
583940
Fits Models:
Fit for Johnson / Evinrude 4.5 HP 1982-1983
Fit for Johnson / Evinrude 5 HP 1996-1998
Fit for Johnson / Evinrude 6 HP 1984-2001
Fit for Johnson / Evinrude 7.5 HP 1982-1983
Fit for Johnson / Evinrude 8 HP 1984-2001
Fit for Johnson / Evinrude 9.9 HP 1980-1992
Fit for Johnson / Evinrude 15 HP 1980-1992
Fit for Johnson / Evinrude 20 HP 1985-1998
Fit for Johnson / Evinrude 25 HP 1980-2003
Fit for Johnson / Evinrude 28 HP 1986-1996
Fit for Johnson / Evinrude 30 HP 1984-2003
Fit for Johnson / Evinrude 35 HP 1980-1984/1986-1988/1993
Fit for Johnson / Evinrude 40 HP 1984-1993
Fit for Johnson / Evinrude 45 HP 1989-1992
Fit for Johnson / Evinrude 48 HP 1987-1993
Fit for Johnson / Evinrude 50 HP 1980-1993
Fit for Johnson / Evinrude 55 HP 1980-1981/1989-1992/1996-1997
Fit for Johnson / Evinrude 60 HP 1980-1985
Package Includes:
1x Regulator Rectifier
Note:
Before installing your new regulator rectifier;
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors.
How to distinguish CDI box with AC fired or CDI box with DC fired?
If headlights turn on without the engine running(with just the key on), it is a DC system. In the AC system, turning headlights on require the engine to be running. Another indication is, if the engine will only runs with a battery it is DC. If it will runs without a battery, it is a AC system.
What does the voltage regulator do?
This regulator has the task of converting the alternating voltage (AC) generated by the alternator into the direct voltage (DC) 12V used in the vehicle electrical system and keeping the voltage within a certain range.
The voltage regulator is also responsible for ensuring that the battery is charged and that the light bulbs do not burn out.
How do I know if the charge regulator can be defective?
- Incandescent lamps burn out all the time.
- Headlights get brighter and darker.
- The battery is constantly empty.
