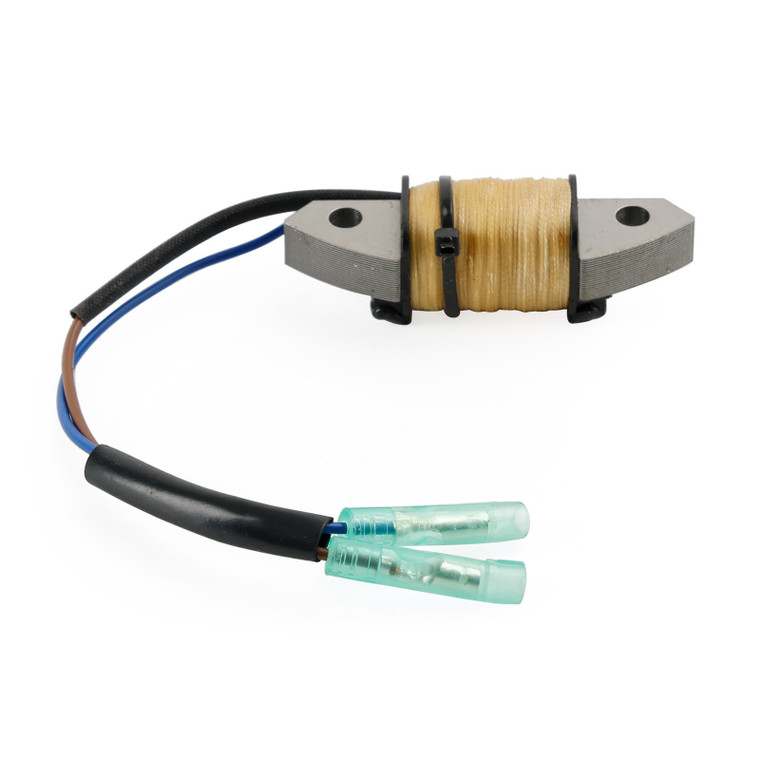

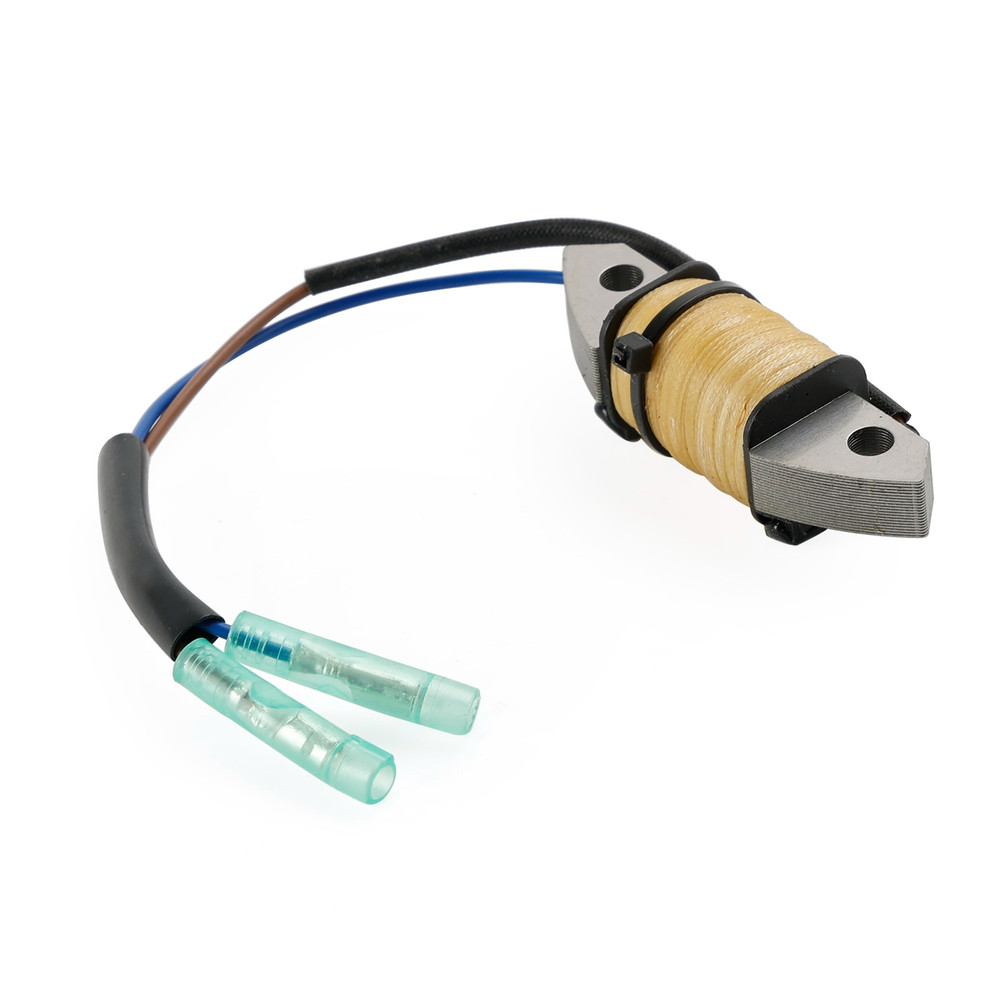

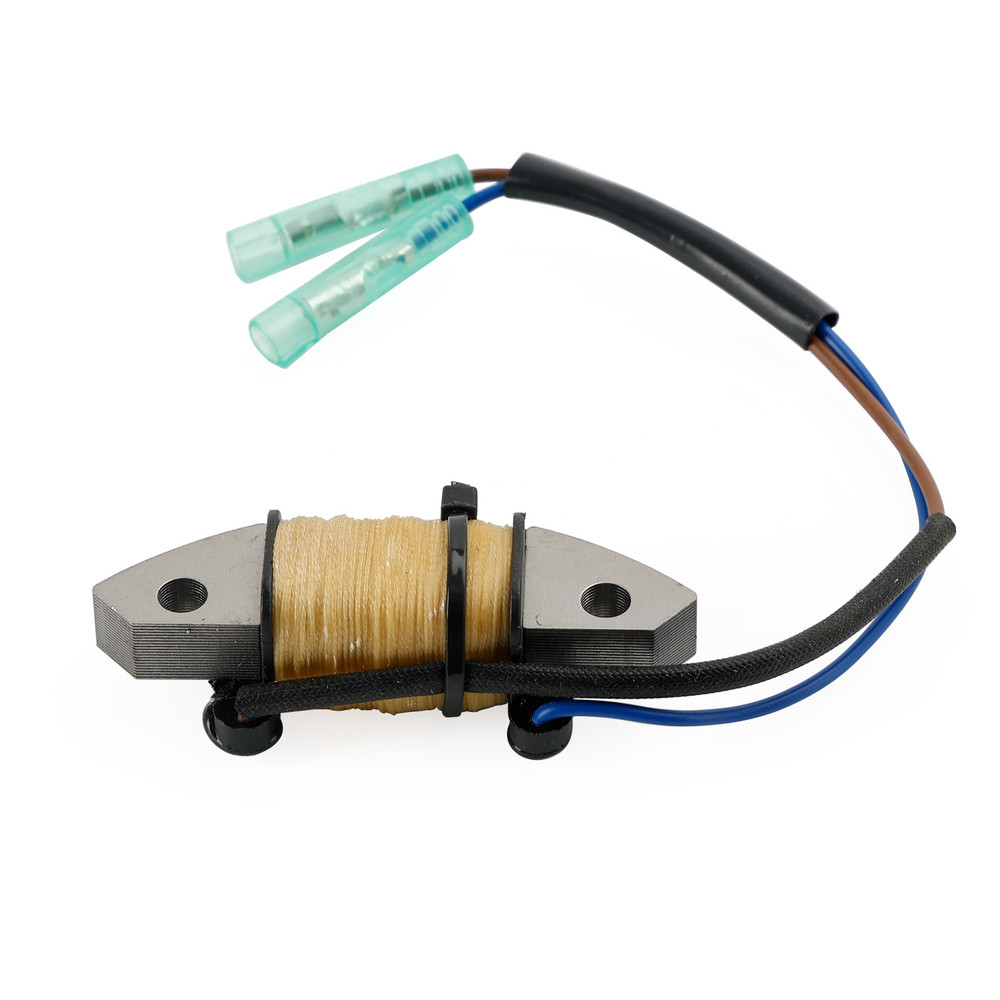

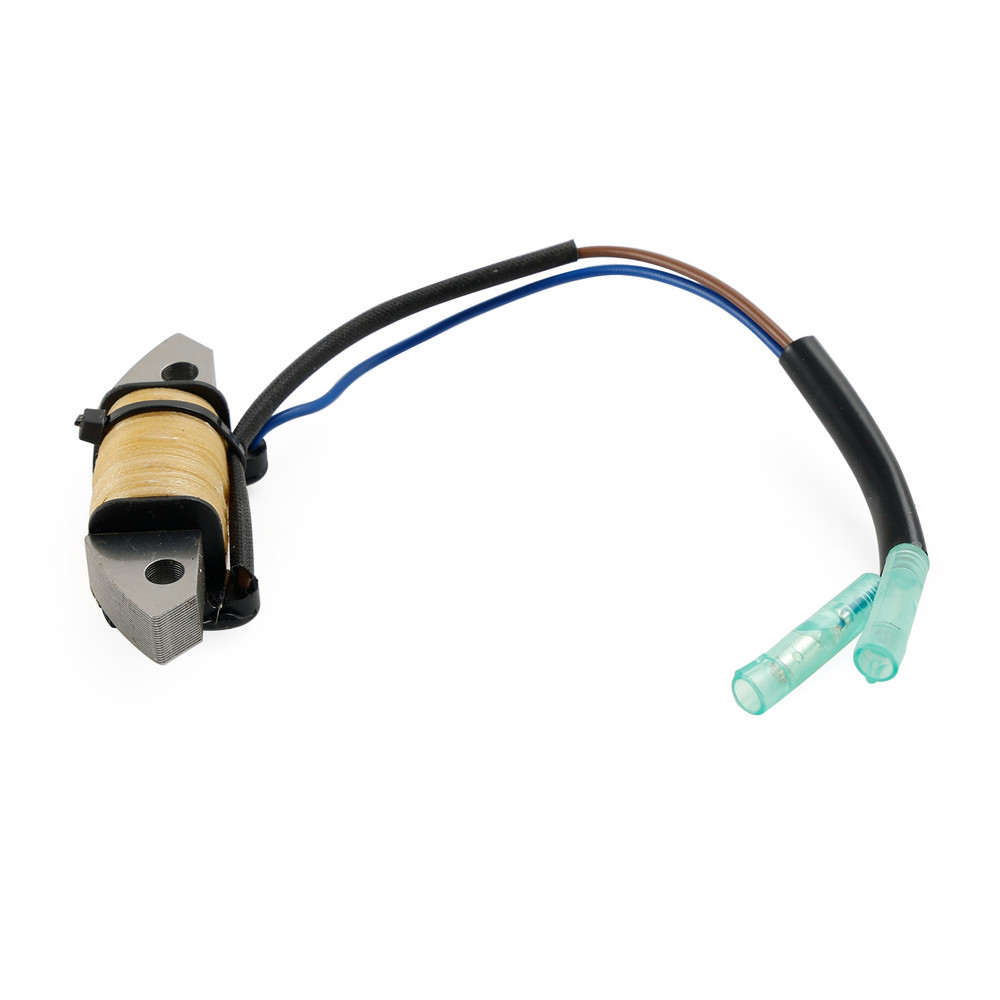

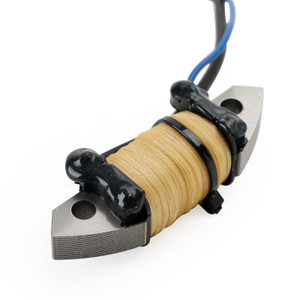

Charge Coil Assy Fit for Yamaha Outboard 20Hp 25Hp Engines 6L2-85520-10 6L2-85520-11 6L2-85520-12
Features:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Connector included.
All products shipped are tested.
Specifications:
Condition: Aftermarket 100% Brand New
Quanity: 1PC
Type: Charging coil
other specifications:
Number of wires: 2
Number of plugs: 2
Number of pins: 2
Replacement Part Number:
6L2-85520-10
6L2-85520-11
6L2-85520-12
Fits Models:
Fit for Yamaha 20HP 20 MS/LH 1996-1997
Fit for Yamaha 20HP 20D MHOS/L 1994-2012
Fit for Yamaha 20HP 20D EMS/L 1994
Fit for Yamaha 20HP 20D MHS/L 1995-2012
Fit for Yamaha 20HP 20D WOS/L 2002-2009
Fit for Yamaha 20HP 20D MHOS 2010
Fit for Yamaha 20HP 20D MHOL 2010
Fit for Yamaha 20HP 20D WOS 2010
Fit for Yamaha 20HP 20D WOL 2010
Fit for Yamaha 20HP 20D MHOL 2011
Fit for Yamaha 25HP 25 MS/LH 1994-2009
Fit for Yamaha 25HP 25 ES/LH 1994-2009
Fit for Yamaha 25HP 25N MHOS/L 1994-2013
Fit for Yamaha 25HP 25N WHS/L 1999/2001-2010
Fit for Yamaha 25HP 25N MHOS 2010-2016
Fit for Yamaha 25HP 25N MHOL 2010-2016
(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitments)
Package included:
1x Charge Coil
(Comes exactly as pictured.)
NOTICE:
Before installing your new stator
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
The product on offer is an accessory or spare part and thus is not an original product of the vehicle manufacturer.
The name of the vehicle manufacturer is stated only as an indication of the determination of the product being offered as an accessory or spare part, to clarify, for which vehicle the product on offer fits."
