Front Rear Cylinder Barrel Jug Piston Kit for Suzuki V Strom 650 DL650 2004-2011

Front and Rear Cylinder Piston Gasket Top End Rebuild Kit For Suzuki SV650 SV650S ABS 1999-2008 V-Strom 650 2004-2011

Features:
If your cylinder blows through, the compression is too low, or even a piston seizure has occurred, then this kit is exactly the right thing for you.

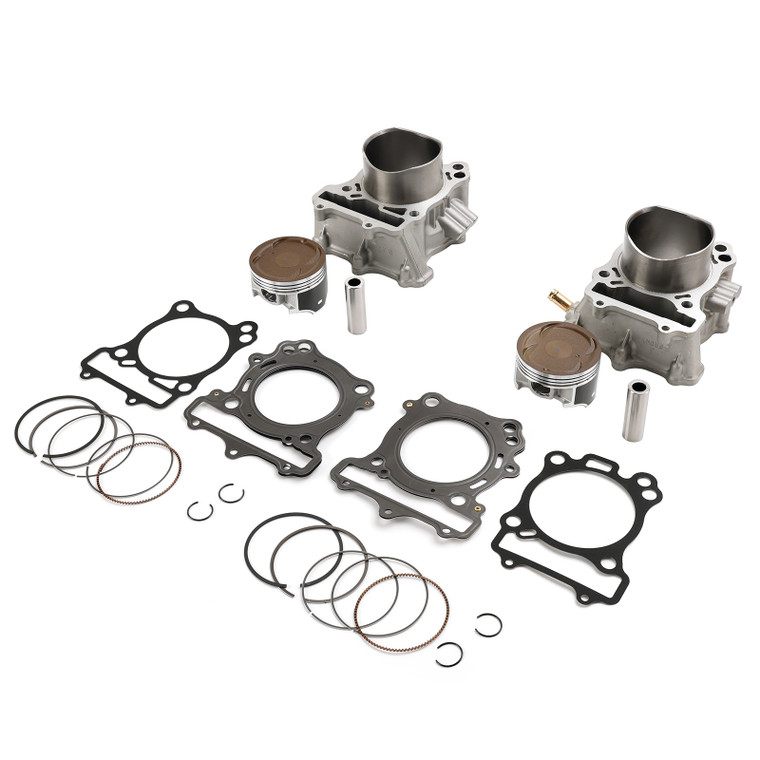

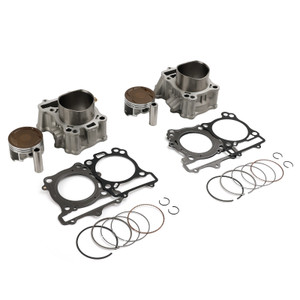

Kit includes (front + rear) cylinder, piston, rings, pin, clips & top end gasket kit (you get exactly what is pictured).
Piston is anodized for superior heat resistance and longer lifespan.
The gaskets use performance materials to increase durability and provide greater reliability.
Includes all gaskets pictured to rebuild top end.
Kit is for standard bore size - 81mm x 62.6mm stroke.
Compression Ratio: 11.2:1.
This kit is excellent as a low-cost replacement for defects in the original cylinder.

Specifications:
Condition: Aftermarket 100% Brand New
Quantity: 1 Set
Material: Aluminum
Displacement: 645cc
Bore Type: Standard Bore
Placement on Vehicle: Front, Rear
Bore diameter: STD 81mm
Stroke: 62.6mm

Replacement Part Number:
Front Cylinder: 11210-20F01-0F0, 11210-20F10-0F0, 11210-20F30-0F0
Front Cylinder Base Gasket: 11241-19F00
Front Cylinder Head Gasket: 11141-20F00
Rear Cylinder: 11220-20F01-0F0, 11220-20F10-0F0, 11220-20F20-0F0
Rear Cylinder Base Gasket: 11242-19F00
Rear Cylinder Head Gasket: 11141-20F00
Piston (Std): 12111-20F00-0F0
Pin, Piston: 12151-05A00
Piston Ring Set (Std): 12140-20F00
Circlips, piston: 09381-20004

Fits Make/Year/Model:
Fit for Suzuki Motorcycle 1999 SV650
Fit for Suzuki Motorcycle 2000 SV650
Fit for Suzuki Motorcycle 2001 SV650
Fit for Suzuki Motorcycle 2002 SV650
Fit for Suzuki Motorcycle 2003 SV650
Fit for Suzuki Motorcycle 2004 SV650
Fit for Suzuki Motorcycle 2005 SV650
Fit for Suzuki Motorcycle 2006 SV650
Fit for Suzuki Motorcycle 2007 SV650
Fit for Suzuki Motorcycle 2008 SV650

Fit for Suzuki Motorcycle 2003 SV650A
Fit for Suzuki Motorcycle 2004 SV650A
Fit for Suzuki Motorcycle 2005 SV650A
Fit for Suzuki Motorcycle 2006 SV650A
Fit for Suzuki Motorcycle 2007 SV650A
Fit for Suzuki Motorcycle 2008 SV650A

Fit for Suzuki Motorcycle 1999 SV650S
Fit for Suzuki Motorcycle 2000 SV650S
Fit for Suzuki Motorcycle 2001 SV650S
Fit for Suzuki Motorcycle 2002 SV650S
Fit for Suzuki Motorcycle 2003 SV650S
Fit for Suzuki Motorcycle 2004 SV650S
Fit for Suzuki Motorcycle 2005 SV650S
Fit for Suzuki Motorcycle 2006 SV650S
Fit for Suzuki Motorcycle 2007 SV650S
Fit for Suzuki Motorcycle 2008 SV650S

Fit for Suzuki Motorcycle 2003 SV650SA
Fit for Suzuki Motorcycle 2004 SV650SA
Fit for Suzuki Motorcycle 2005 SV650SA
Fit for Suzuki Motorcycle 2006 SV650SA
Fit for Suzuki Motorcycle 2007 SV650SA
Fit for Suzuki Motorcycle 2008 SV650SA

Fit for Suzuki Motorcycle 2004 V-STROM - DL650
Fit for Suzuki Motorcycle 2005 V-STROM - DL650
Fit for Suzuki Motorcycle 2006 V-STROM - DL650
Fit for Suzuki Motorcycle 2007 V-STROM - DL650
Fit for Suzuki Motorcycle 2007 V-STROM - DL650A
Fit for Suzuki Motorcycle 2008 V-STROM - DL650
Fit for Suzuki Motorcycle 2008 V-STROM - DL650A
Fit for Suzuki Motorcycle 2009 V-STROM - DL650
Fit for Suzuki Motorcycle 2009 V-STROM - DL650A
Fit for Suzuki Motorcycle 2011 V-STROM - DL650AL1
Fit for Suzuki Motorcycle 2011 V-STROM - DL650L1

(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitment)

Package Includes:
1x Front Cylinder
1x Front Cylinder Base Gasket
1x Front Cylinder Head Gasket
1x Rear Cylinder
1x Rear Cylinder Base Gasket
1x Rear Cylinder Head Gasket
2x Pistons
2x Wristpins
2x Piston Ring Set
2x Circlips(2)

(Comes exactly as pictured.)

Note:
Carefully compare to your old parts to be sure this is the correct part for your machine.

The product on offer is an accessory or spare part and thus is not an original product of the vehicle manufacturer.
The name of the vehicle manufacturer is stated only as an indication of the determination of the product being offered as an accessory or spare part, to clarify, for which vehicle the product on offer Fits.
