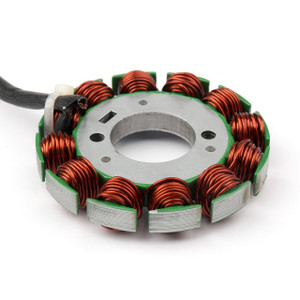

Magneto Generator Engine Stator Coil For Yamaha WR250F WR 250 F 2004 2005 2006 2007 2008 2009 2011 2012 2013 2014
FEATURES:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.
Highest grade copper windings, resistant to 200 degrees Celsius.

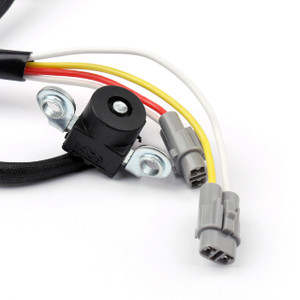

Pick up pulsar coil included.
Connector included.
All products shipped are tested.
Installation instruction NOT included.
SPECIFICATIONS:
Condition: Aftermarket 100% Brand New
Quanity: 1PC
Type: Generator Stator Coil
Replacement Part Number: 5UM-81410-09-00,5UM-81410-31-00
Dimensions :
Interior diameter : 30mm / 1.18"
Exterior diameter : 85mm / 3.34"
Other specifications :
Number of wires: 4
Number of pins: 4
Number of plugs: 2
Number of fixation holes: 2
FITMENT:
For Yamaha WR250F 2004-2009/2011-2014
PACKAGE INCLUDED:
1x Generator Stator Coil
NOTICE:
Before installing your new stator
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
