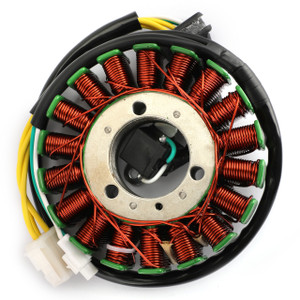

Generator Stator Magneto Coil 18 Poles For Suzuki SFV650 Gladius SV650 ABS Generic

Generator Stator Magneto Coil 18 Poles For Suzuki SFV650 Gladius SV650 ABS Generic
Magneto Generator Engine Stator Coil Fit for Suzuki SFV650 Gladius 2009-2015 SV650, ABS 2017-2020
Features:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.
Highest grade copper windings, resistant to 200 degrees Celsius.
Pick up pulsar coil included.
Connector included.
All products shipped are tested.
Specifications:
Condition: Aftermarket 100% Brand New
Quanity: 1PC
Type: Generator Stator Coil

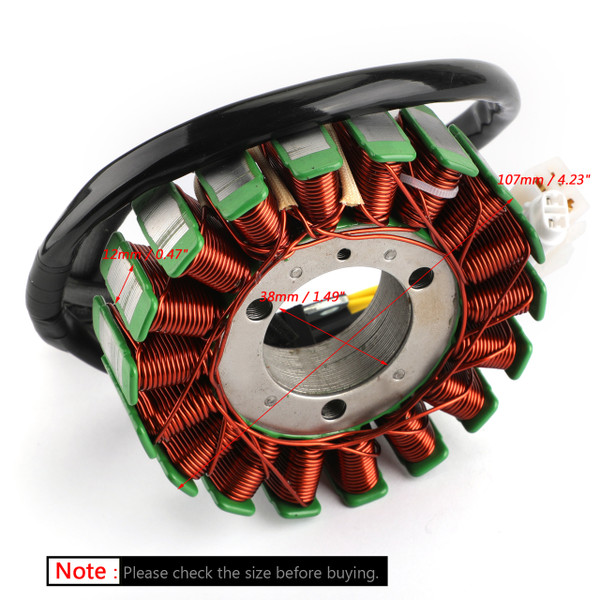

Dimensions :
Interior diameter : 38mm / 1.49"
Exterior diameter : 107mm / 4.23"
Thickness : 12mm / 0.47"
Other Specifications :
Number of wires: 5
Number of pins: 5
Number of plugs: 2
Number of fixation holes: 3
Replacement Part Numbers:
32101-17G22
32101-17G23
Fitment:
Fit for Suzuki SFV650 Gladius 2009-2015
Fit for Suzuki SV650 2017-2020
Fit for Suzuki SV650 ABS 2017-2020
Package Included:
1x Generator Stator Coil
NOTICE:
Before installing your new stator
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
