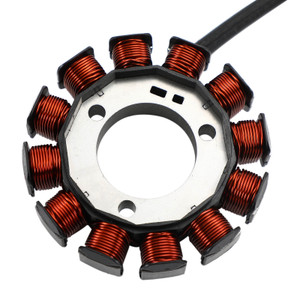

Magneto Generator Stator Fit for Yamaha YZF R15 R125 XSR125 MT125 2015-2021
Features:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.
Highest grade copper windings, resistant to 200 degrees Celsius.

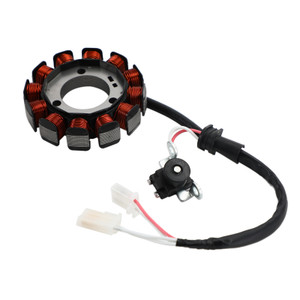

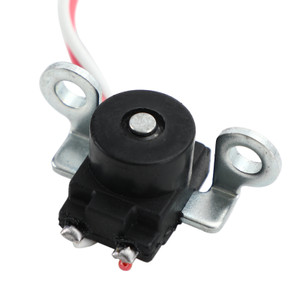

Pick up pulsar coil included.
Connector included.
All products shipped are tested.
Specifications:
Condition: Aftermarket 100% Brand New
Quanity: 1PC
Type: Generator Stator Coil
Replacement Part Number:
2FB-H1410-00
BK7-H1410-00
BK6-H1410-02
Fitments:
Fit for Yamaha YZF R15 2015-2021
Fit for Yamaha YZF155L YZF R15 2020
Fit for Yamaha YZF155K YZF R15 2019
Fit for Yamaha XSR125 XSR125 2021
Fit for Yamaha YZF R125 YZF-R 125 2019-2021
Fit for Yamaha MT125 MT-125 ABS 2020-2021
Fit for Yamaha MT125 MT-125 ABS Ice Fluo 2020
(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitments)
Package Included:
1x Generator Stator Coil
NOTICE:
Before installing your new stator
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Features:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.
Highest grade copper windings, resistant to 200 degrees Celsius.
Pick up pulsar coil included.
Connector included.
All products shipped are tested.
Specifications:
Condition: Aftermarket 100% Brand New
Quanity: 1PC
Type: Generator Stator Coil
Replacement Part Number:
2FB-H1410-00
BK7-H1410-00
BK6-H1410-02
Fitments:
Fit for Yamaha YZF R15 2015-2021
Fit for Yamaha YZF155L YZF R15 2020
Fit for Yamaha YZF155K YZF R15 2019
Fit for Yamaha XSR125 XSR125 2021
Fit for Yamaha YZF R125 YZF-R 125 2019-2021
Fit for Yamaha MT125 MT-125 ABS 2020-2021
Fit for Yamaha MT125 MT-125 ABS Ice Fluo 2020
(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitments)
Package Included:
1x Generator Stator Coil
NOTICE:
Before installing your new stator
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
