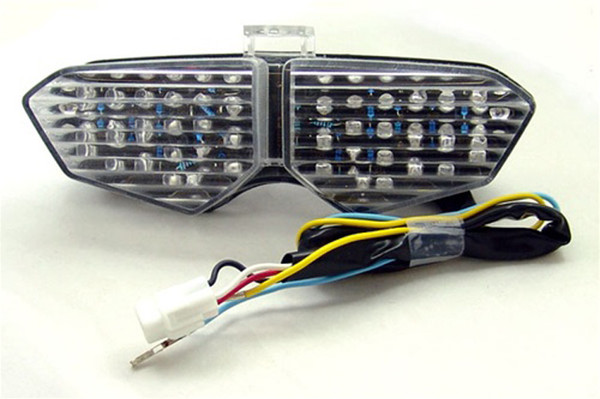

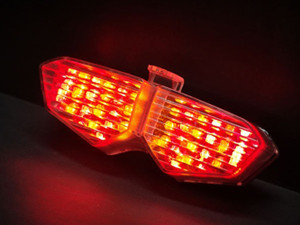

Enhance the look with these EURO Clear LED Tail Light with Turn Signals (you can remove your rear turn signals)
Laser weld finished; not glued
Direct bolt on; Easy installation, no modification required
Condition: Brand New
Quantity: 1
Approximate Dimensions: 6 5/8" x 2 1/2" x 2 3/4" (Width x Height x Depth) measured at normal mounting position including housing.
Fitment:
For YAMAHA YZF R6 2003-2005
For YAMAHA YZF R6S 2006-2009
For YAMAHA XTZ1200 2012-2021
Wire Diagram (by color):
1. Black = Ground Wire
2. Red = Brake Light
3. White = Running Light
4. Yellow = Right Turn Signal
5. Blue = Left Turn Signal
NOTE: The BLACK(ground wire), RED(break light) and WHITE(running light) wires must be inserted into the (white) wire clip provided and plugged into motorcycle wire clip.
***Please be sure to place the wire in the correct slots; based on the setup of the motorcycle.
Delivery:
Free Shipping
Delivery Time:3-10 Working Days
Warranty:
Warranty Period:1 Years
Return:Goods can be returned within 60 days of receipt
24-Hour Support:Customer service throughout the day
