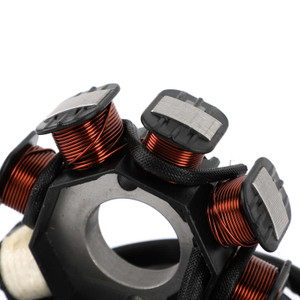

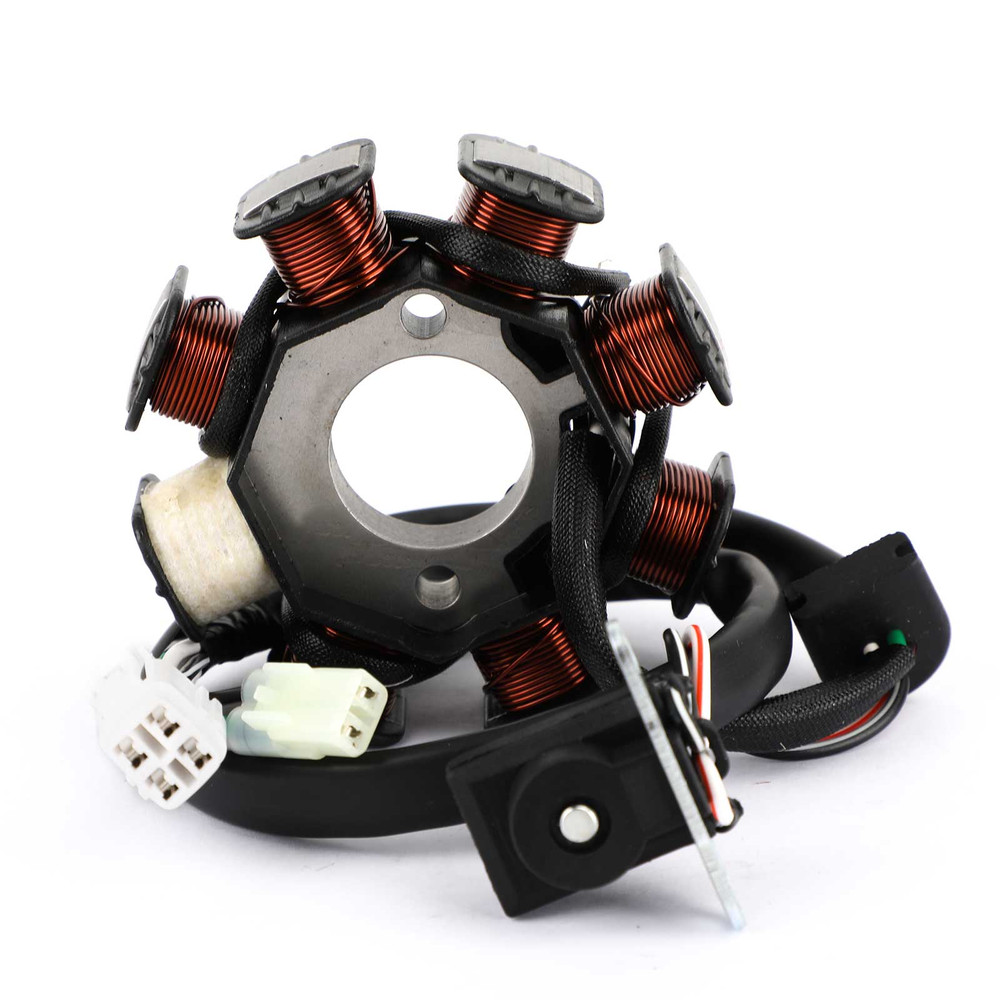

Magneto Generator Engine Stator Rotor Coil For Yamaha YFM90R RAPTOR 90 2009-2013 Generic

$50.89
SKU:
M550-A492
Shipping:
Free Shipping
Shipping Note:
Estimated in 3-10 working days Free Quick Shipping
Magneto Generator Engine Stator Rotor Coil Fit For Yamaha YFM90R RAPTOR 90 2009-2013 43D-H5510-00

Features:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.
Highest grade copper windings, resistant to 200 degrees Celsius.
Pick up pulsar coil included.
Connector included.
All products shipped are tested.

Specifications:
Condition: Aftermarket 100% Brand New
Quanity: 1PC
Type: Generator Stator Coil

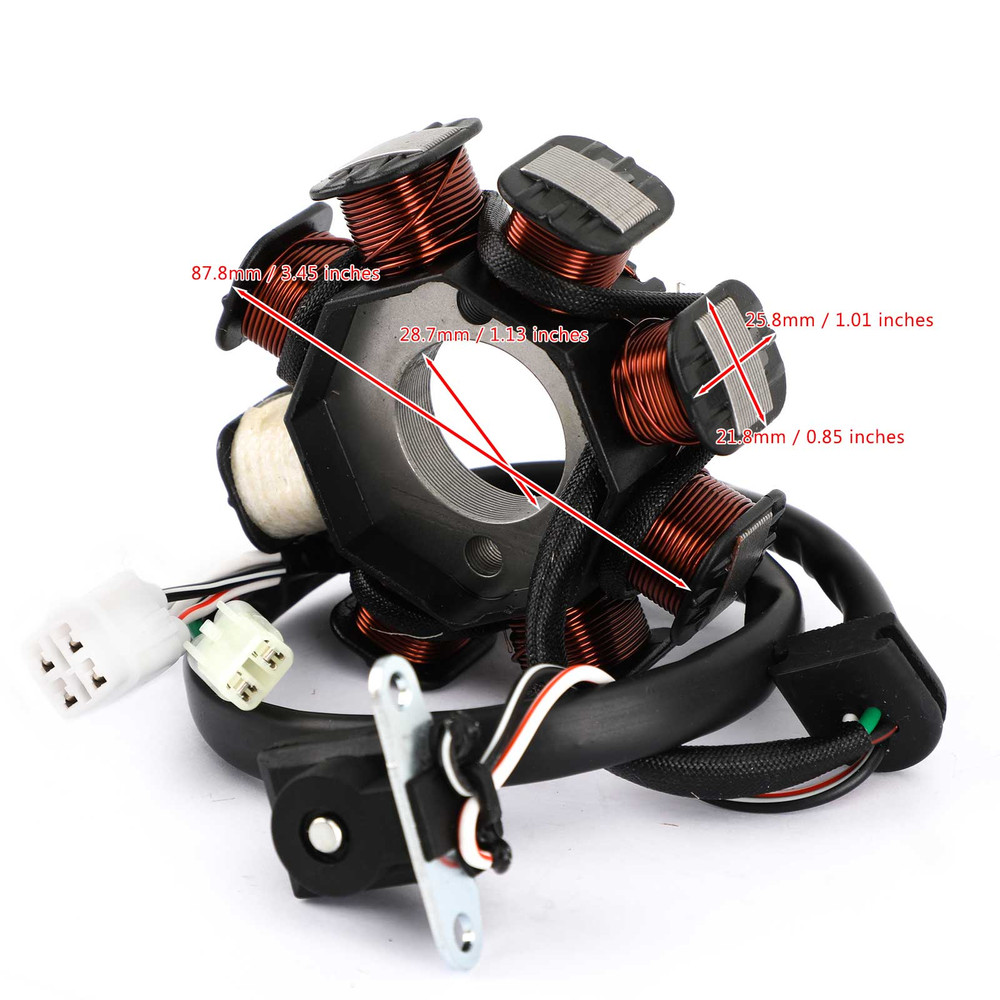

Dimensions :
Interior diameter : 28.7mm / 1.13 inches
Exterior diameter : 87.8mm / 3.45 inches
Pole's Thickness : 25.8mm / 1.01 inches
Pole's Width : 21.8mm / 0.85 inches

Other Specifications :
Number of wires: 6
Number of pins: 6
Number of plugs: 2
Number of fixation holes: 2
Number of poles: 8

PART NUMBER:
43D-H5510-00-00

Fitments:
Fit for Yamaha YFM90R RAPTOR 90 2009-2013

(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitments)

Package Included:
1x Generator Stator Coil

NOTICE:
Before installing your new stator

Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Delivery:
Free Shipping
Delivery Time:3-10 Working Days

Warranty:
Warranty Period:1 Years
Return:Goods can be returned within 60 days of receipt
