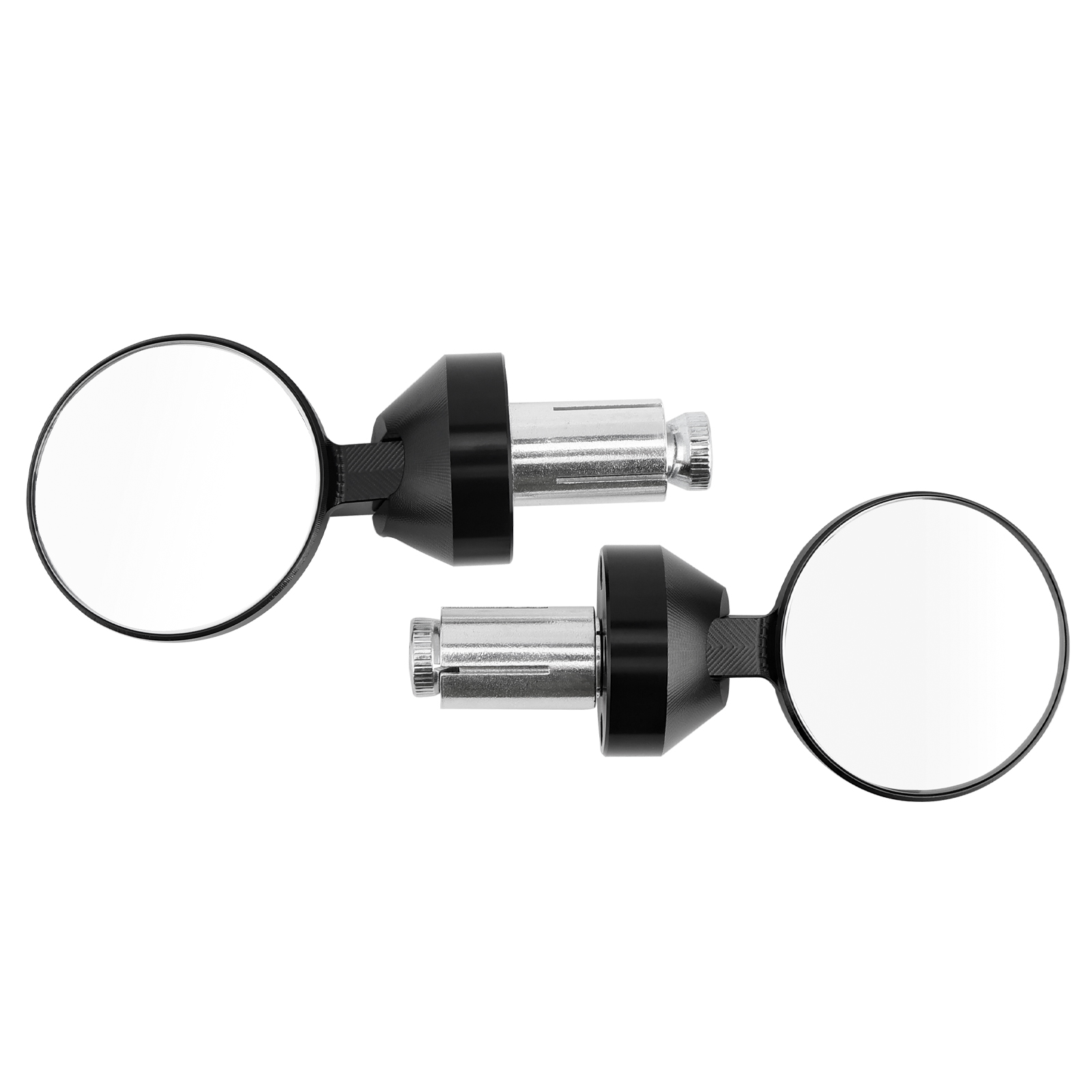

Billet Aluminium 2" in. Round Bar End Mirrors Universal - 22mm

Features:
New bar end mirror set left and right.
Mirrors are completely CNC machined from casting aluminum, light-weight, strong.
Approx. 76mm wide at widest point, 76mm high at highest point.
Comes with aluminium plugs that expand in the ends of the bars.
2x Aluminum 13mm and 17mm expanders (for non-original handlebars adjustable for perfect fitting)
Ends of the bar could be drilled to suit any of these sizes.
Will fit any bike with standard 22mm diameter hanlderbar.
With little modification, these units can be mounted through the ends of most grips by drilling or boring the grip end.
Not required for most grips with existing grips end holes.
Sold in pairs.
Solid design reduces vibration and makes for a clearer image.
Easy to install, installation instruction NOT included.

Specifications:
Condition: Aftermarket 100% Brand New
Material: CNC Aluminum
Suface Finish: Casting
Units: Pair
Type: Bar End Mirrors
Style: Universal Replacement
Intended Use: Replacement Part
Colour: Black
Glass Tint: Clear
Mirror Shape: Round
Mirror Type: Anti-glare convex
Adjustment: Ball-joined
Foldable: Yes
Rotation: No
Expansion bushes: 13mm / 17mm
Fits Handlebar: 22mm
Glass diameter: 50mm / 2 in.
Thread: M6
Base diameter: 35mm
Placement on Vehicle: Front (Left, Right)

Fits Models:
Universal fits handlebar with an inner diameter of 13-17mm depend on the adapter.
Fits most 7/8" in. (22mm) handlebar, please check the handlebars inside diameters.
For this reason they will work in any handle bar so long as the internal tube is hollow.
Due to different handlebar supplies, you may need to change the through-bolt to one that fits your own, e.g., using the original through-bolt.

Fit for Vespa GTS 300ie Touring M45 4T LC 11-12
Fit for Vespa GTS 300 ie Super Tech HPE 4V 18-19 ABS E4 [ZAPMA3600]
Fit for Vespa GTS 125ie Super M45 4T LC 09-16
Fit for Vespa GTV 300 ie Sei Giorni 4V ABS E4 17- (Europe) [ZAPMA3302]
Fit for Vespa GTV 250ie / Navy M45 4T LC 06-09
Fit for Vespa GTV 300 ie Touring 4V E3 10-16 [ZAPM459L]
Fit for Vespa GT 250 ie 60 Granturismo E3 06-07 [ZAPM45102]
Fit for Vespa GTS 125 ie 4V 16-18 ABS E4 [ZAPMA3100/ ZAPMA3200]
Fit for Vespa GTS 125 ie 4V 19- ABS E4 [ZAPMA3700]
Fit for Vespa GTS 125 ie Super 4V 16-18 ABS E4 [ZAPMA3100/ ZAPMA3200]
Fit for Vespa GTS 125 ie Super 4V 18-19 ABS E4 [ZAPMA3700]
Fit for Vespa GTS 150 ie 3V ABS E4 16-18 [ZAPMA3100/ ZAPMA3200]
Fit for Vespa GT 125 M31 4T LC 03-06
Fit for Vespa GTS 250 ie 4V E3 11-13 (Asien) [ZAPM45100]
Fit for Vespa GTS 125 M31 4T LC 07-12
Fit for Vespa GTS 250 ie Super 4V E3 08- [ZAPM459L]
Fit for Vespa GTV 125/Navy M31 4T LC 06-08
Fit for Vespa GTS 300 ie 4V 16-18 ABS E4 (Europe) [ZAPMA3300]
Fit for Vespa GT 200 M31 4T LC 03-08
Fit for Vespa GTS 300 ie 4V 17- ABS E4 (Asia) [ZAPMA3301]
Fit for Vespa GTS 250ie M45 4T LC 05-08
Fit for Vespa GTS 300 ie HPE 4V 19- ABS E4 [ZAPMA3600]
Fit for Vespa GTS 300ie Super M45 4T LC 08-16
Fit for Vespa GTS 300 ie Super 4V 16-18 ABS E4 (Europe) [ZAPMA3300]
Fit for Vespa GTV 300ie M45 4T LC 09-16
Fit for Vespa GTS 300 ie Super HPE 4V 18-19 ABS E4 [ZAPMA3600]

(Compatibility Chart is for Reference ONLY!!!
Please Compare with Your faulty unit and the image / size we provided to Decide Fitments.)

Package Includes:
A pair of left and right bar end mini mirrors

Note:
This product is not certified compliant, No e-marks or homologation.

Use primerless threadlocker to keep the product away from vibration or loose.
If the bars are a bit bigger (18mm for example), you cut a Coke can open and cut 2 strips that you can wrap over the plugs.
On some bikes the standard handlebars have a threaded plug welded inside and you may need to use a longer bolt with the bar ends supplied.

The product on offer is an accessory or spare part and thus is not an original product of the vehicle manufacturer.
The name of the vehicle manufacturer is stated only as an indication of the determination of the product being offered as an accessory or spare part, to clarify, for which vehicle the product on offer fits.
