Crossfire XZ250R 77mm Cylinder Piston Gasket Top End Rebuild Kit

Crossfire XZ250R 77mm Cylinder Piston Gasket Top End Rebuild Kit
Features:
If your cylinder blows through, the compression is too low, or even a piston seizure has occurred, then this kit is exactly the right thing for you.

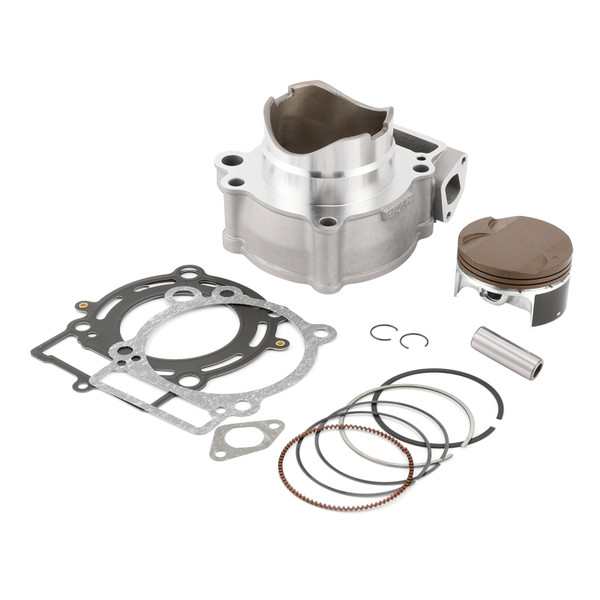

Kit includes cylinder, piston, rings, pin, clips & top end gasket kit (you get exactly what is pictured).
The cylinder is made of aluminum for good cooling with an internal cast iron jacket (unlike which has a nicasil treatment).
Piston is anodized for superior heat resistance and longer lifespan.
The gaskets use performance materials to increase durability and provide greater reliability.
Includes all gaskets pictured to rebuild top end.
Kit is for standard bore size - 77 mm, 16mm steel piston pin.
This kit is excellent as a low-cost replacement for defects in the original cylinder.
Specifications:
Condition: Aftermarket 100% Brand New
Quantity: 1 Set
Material: Aluminum, Steel
Displacement: 249cc
Stroke: 4T
Engine: ZS177
Cooling: Water-cooled
Bore Type: Standard Bore
Bore diameter: 77mm
Pin diameter: 16mm
Pin Overall Length: 46mm
Barrel Height: 51mm
Barrel Total Height: 98.7mm
Replacement Part Number:
Cylinder: 1110B-ME30-00000W, 100104394-0002
Cylinder Base Gasket: 90205-ME30-0000, 100069657
Cylinder Head Gasket: 9022B-ME30-0000, 100208897
Piston: 13101-ME30-0000, 100068638
Pin, Piston: 13102-ME30-0000, 100101540
Piston Ring Set (Std): 1310A-ME30-0000, 100068639
Circlips, piston (2): 91401-ME30-0000
Cylinder Tensioner Gasket: 90211-BA81-0000
Always compare part numbers to your parts schematics and cross reference appropriately.
Fits Make/Model:
Fit for Zongshen NC250
Fit for Gas Gas Cami EC250 2013-Onwards
Fit for AJP PR5 250 2013-Onwards
Fit for MIkilon 250cc
Fit for Megelli 250R
Fit for Crossfire XZ250R
Fit for Kayo T6 K6 250cc
Will also fit other brands that use the Zongshen NC250 4 Stroke Engine.
Will not fit Gas Gas EC 250 Fitted with Yamaha Engine.
(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitment)
Package Includes:
1x 77mm Cylinder
1x Piston
1x Piston Ring Set
1x 16mm Wristpin
1x Circlip(2)
1x Cylinder Base Gasket
1x Cylinder Head Gasket
1x Cylinder Tensioner Gasket
(Comes exactly as pictured.)
Note:
Carefully compare to your old parts to be sure this is the correct part for your machine.
The product on offer is an accessory or spare part and thus is not an original product of the vehicle manufacturer.
The name of the vehicle manufacturer is stated only as an indication of the determination of the product being offered as an accessory or spare part, to clarify, for which vehicle the product on offer Fits.
