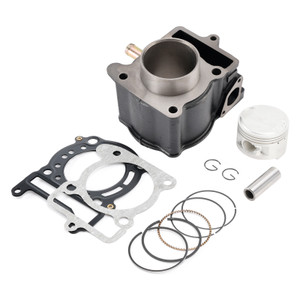

125cc Cylinder Piston Gasket Top End Rebuild Kit 53.7mm For Yamaha Majesty Skyliner Maxster Teos 125 4T

Features:
If your cylinder blows through, the compression is too low, or even a piston seizure has occurred, then this kit is exactly the right thing for you.
Kit includes cylinder, piston, rings, pin, clips & top end gasket kit (you get exactly what is pictured).
The cylinder is made of aluminum for good cooling with an internal cast iron jacket (unlike which has a nicasil treatment).
The gaskets use performance materials to increase durability and provide greater reliability.
Includes all gaskets pictured to rebuild top end.
Kit is for standard bore size - 53.7 mm, 15mm steel piston pin.
This kit is excellent as a low-cost replacement for defects in the original cylinder.

Specifications:
Condition: Aftermarket 100% Brand New
Quantity: 1 Set
Material: Aluminum, Steel
Displacement: 124cc
Bore Type: Standard Bore
Bore diameter: 53.7mm
Pin diameter: 15mm
Pin Overall Length: 43mm

Replacement Part Number:
Cylinder: 5DS-E1311-A0, 5DS-E1311-00
Cylinder Base Gasket: 5DS-11351-00
Cylinder Head Gasket: 5DS-11181-01, 5DS-11181-01, 5DS-E1181-00
Piston: 5DS-11631-00, 5DS-11631-00-A0
Pin, Piston: 5NR-E1633-00, 1WG-11633-01
Piston Ring Set (Std): 5DS-11603-00, 5DS-11610-00
Circlips, piston (2): 93450-16068, 93450-16812

(Always compare part numbers to your parts schematics and cross reference appropriately.)
(This is NOT a genuine Part, OEM part numbers are included for product type identification and comparison only.)

Fits Make/Model/Year:
Fit for Benelli Velvet Eco 125 H2O LC 4T E1 1999-2001
Fit for Benelli Velvet Touring 125 H2O LC 4T E1 2001-2003
Fit for Italjet Jupiter 125 H2O LC 4T 2001-2002
Fit for Italjet Millenium 125 H2O LC 4T 2000-2002
Fit for Malaguti F12 Phantom Max 125 H2O LC 4T E2 2003-2007
Fit for Malaguti Madison 125 H2O LC 4T E1 1999-2001
Fit for Malaguti Madison 125 H2O LC 4T E2 2002-2005
Fit for MBK Doodo 125 H2O LC 4T 2000-2002
Fit for MBK Skyliner 125 H2O LC 4T 1998-2000
Fit for MBK Skyliner 125 H2O LC 4T 2001-2002
Fit for MBK Skyliner 125 H2O LC 4T 2003-2006
Fit for MBK Skyliner II 125 H2O LC 4T 2007-2009
Fit for MBK Thunder 125 H2O LC 4T 2001-2002
Fit for Renault Kouranos 125 H2O LC 4T 2002-2003
Fit for Yamaha Majesty 125 DT H2O LC 4T 1996-1997
Fit for Yamaha YP125R Majesty 125 H2O LC 4T 1998-2000
Fit for Yamaha YP125R Majesty 125 H2O LC 4T 2001-2002
Fit for Yamaha YP125R Majesty 125 H2O LC 4T 2003-2006
Fit for Yamaha YP125 Majesty II 125 H2O LC 4T 2007-2009
Fit for Yamaha XQ125 Maxster 125 H2O LC 4T 2001-2002
Fit for Yamaha XN125 Teo's 125 H2O LC 4T 2000-2002

(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitment)

Package Includes:
1x 53.7mm Cylinder
1x Piston
1x Piston Ring Set
1x 15mm Wristpin
1x Circlip(2)
1x Cylinder Base Gasket
1x Cylinder Head Gasket

(Comes exactly as pictured.)

Note:
Carefully compare to your old parts to be sure this is the correct part for your machine.

The product on offer is an accessory or spare part and thus is not an original product of the vehicle manufacturer.
The name of the vehicle manufacturer is stated only as an indication of the determination of the product being offered as an accessory or spare part, to clarify, for which vehicle the product on offer Fits.
