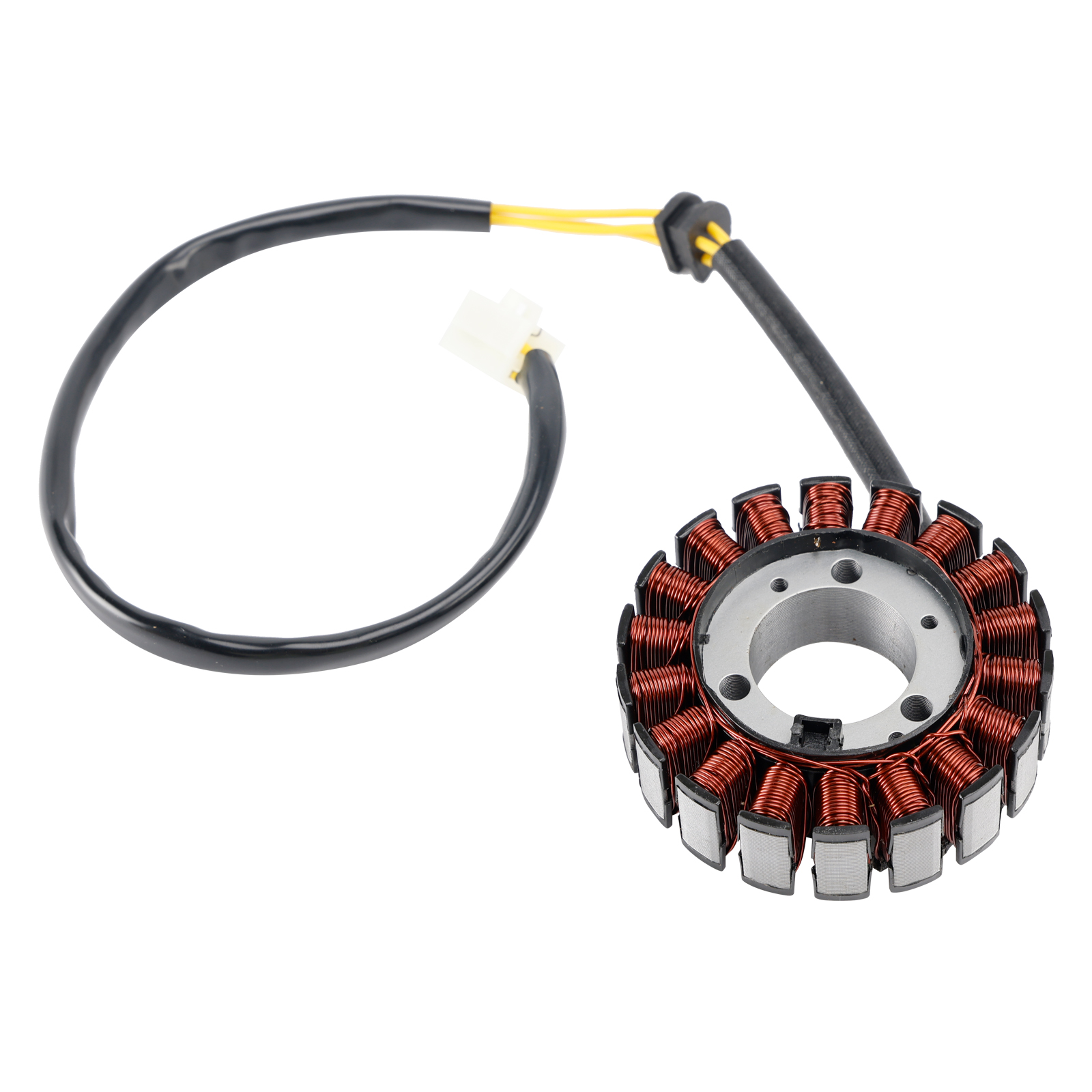

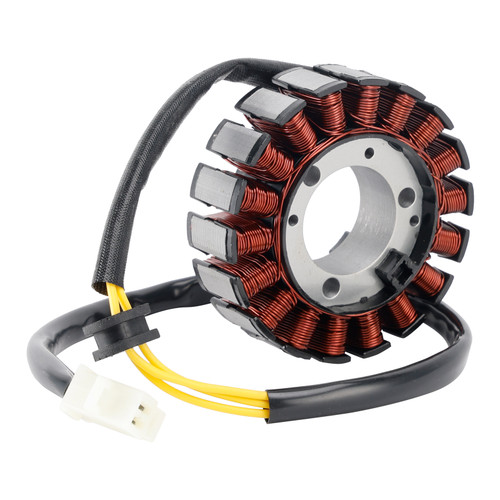

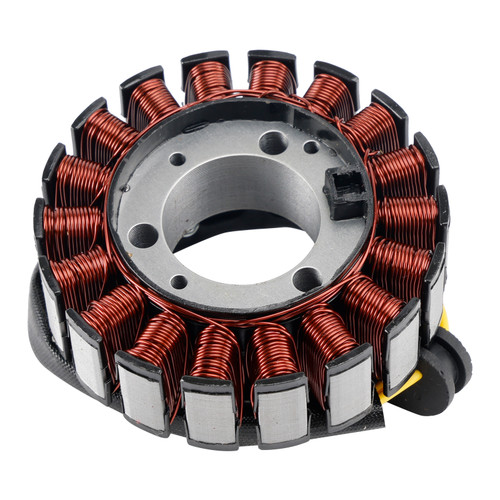

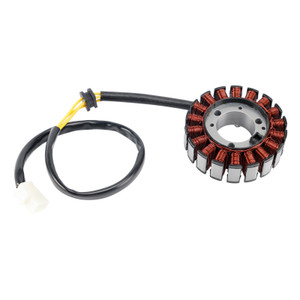

2000-2006 Honda NES SES SH 125 150 18-Pole Magneto Generator Stator 31120-KGF-912 Generic
$92.99
SKU:
M550-D044

2000-2006 Honda NES SES SH 125 150 18-Pole Magneto Generator Stator 31120-KGF-912 Generic
$92.99
18-Pole Magneto Generator Stator Fit for Honda SH / Dylan / Arobase 125 - 31120-KGF-912
Features:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.
Connector included.
Rubber grommet included.
All products shipped are tested.
Specifications:
Condition: Aftermarket 100% Brand New
Type: Stator Coil
other specifications:
Number of wires: 3
Number of plugs: 1
Number of pins: 3
Number of fixation holes: 3
Number of poles: 18
Please compare the number of pins and plugs with the old part before purchasing.
Size:
Interior diameter : 35 mm
Exterior diameter : 92 mm
Cable Length: approx. 540mm
Replacement Part Number:
31120-KGF-912
(Always compare part numbers to your parts schematics and cross reference appropriately.)
(This is NOT a genuine Part, OEM part numbers are included for product type identification and comparison only.)
Fits Make/Model/Year:
Fit for Honda NES 125 Chiocciola JF07B/JF07A 2000-2006
Fit for Honda NES 125 Arobase 2002-2006
Fit for Honda SES 125 Dylan JF10A 2001-2006
Fit for Honda SH 125 JF09A 2001-2004
Fit for Honda NES 150 Chiocciola KF03A/KF03B 2000-2006
Fit for Honda NES 150 Arobase 2002-2006
Fit for Honda SES 150 Dylan KF05A 2001-2006
Fit for Honda SH 150 KF04A 2001-2004
Please check and comfirm the number of stator poles is the same as ours and if your connectors and harness looks like the one in the photo before purchasing.
(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitments)
Package Included:
1x Stator Generator
NOTICE:
Before installing your new stator
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Battery condition is important. No stator can make up for a bad or weak battery. If in doubt charge your battery and have it load tested, or simply replace it.
ALWAYS START WITH A FULLY CHARGED BATTERY !
The product on offer is an accessory or spare part and thus is not an original product of the vehicle manufacturer.
The name of the vehicle manufacturer is stated only as an indication of the determination of the product being offered as an accessory or spare part, to clarify, for which vehicle the product on offer fits.
