Features:

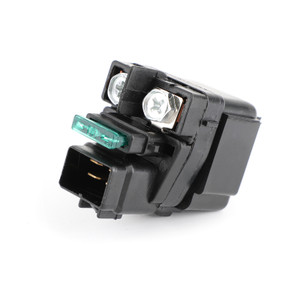

Aftermarket Starter Relay Solenoid.
In most cases this is a direct bolt on part.
HOWEVER you made need to modify the mounting position and the wiring connections to allow it to work on your Motorcycle.
Rubber shell protection against leakage damage.
Stable characteristics, high reliability.
High class quality and very durable.
Mounting bracket NOT included,Installation Instruction NOT Included.
Specifications:
Condition: Aftermarket 100% Brand New
Color: Same As Picture Show
Material: Plastic & Metal
OEM Replacement Part Number: 31800-07G00,27010-S024, 31800-35F00,3409-025
Fitment:
For Arctic Cat 3409-025
For Arctic Cat 400 DVX 2004-2008
For Suzuki 31800-07G00
For Suzuki LTZ400 QuadSport 2003-2008
For Suzuki LTZ400Z QuadSport Z400 2003-2008
For Kawasaki 27010-S024
For Kawasaki KSF400 KFX400 2003-2007
For Suzuki 31800-35F00
For Suzuki LTA700X King Quad 700 2005-2007
For Suzuki GSXR600 2001-2005
For Suzuki GSXR750 2000-2005
For Suzuki GSXR1000 2001-2004
Package Includes:
1x Starter Relay Solenoid
Installation Instruction NOT Included
Noticeï¼?/span>
Make Sure the Motorcycle is in NEUTRAL!!! Even with the ignition OFF!
Before pulling an old solenoid off a Motorcycle, you can test it.
Applying 12 volts to the two wires inside the plastic connector, the solenoid is polarity sensitive.
Applying 12 volts in the wrong polarity doesn't hurt the solenoid, it simply won't work.
When the 12 volts are applied to the two small wires correctly:
If the starter cranks, the solenoid, the battery and the starter are all good.
If the solenoid makes an audible click sound but your starter doesn't crank, the solenoid is good.
Delivery:
Free Shipping
Delivery Time:3-10 Working Days
Warranty:
Warranty Period:1 Years
Return:Goods can be returned within 60 days of receipt
24-Hour Support:Customer service throughout the day
