Product Overview

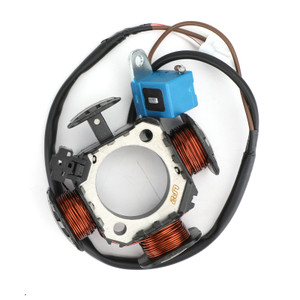

Magneto Generator Engine Stator Coil For Suzuki LTZ50 Z Quadsport Z50 2x4 2006-2010/2017-2018
Features:
1.Free Shipping
2.Low price and good quality
3.Easy and quick refund
4.Full day customer service support
5.Guaranteed Fitment:Always the correct part
SPECIFICATIONS:
Condition: Aftermarket 100% Brand New
Quanity: 1PC
Type: Generator Stator Coil
Replacement Part Number:32101-43G00

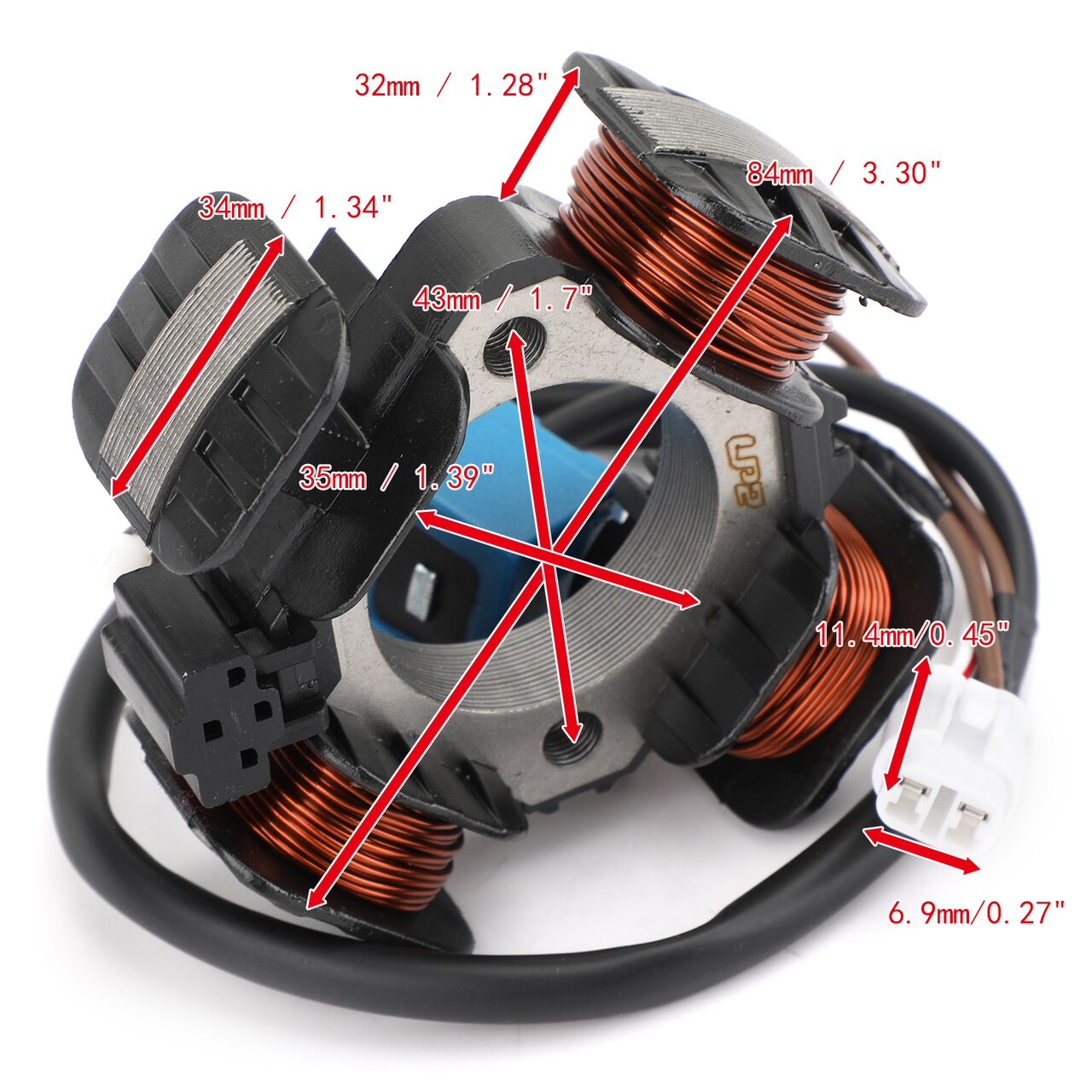

Dimensions :
Interior diameter : 35mm / 1.39"
Exterior diameter : 84mm / 3.30"
Pole's Thickness : 32mm / 1.28"
Pole's Width : 34mm / 1.34"
Other specifications :
Number of wires: 2
Number of pins: 2
Number of plugs: 1

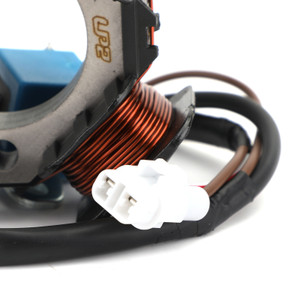

Plug's L*W:11.4mm/0.45"*6.9mm/0.27"
Number of fixation holes: 2
Number of poles: 3(+1)
Fixation holes length: 43mm / 1.7"
FITMENT:
For Suzuki LTZ50 Quadsport Z50 2x4 2006-2010/2017-2018
For Suzuki LTZ50Z Quadsport Z50 2x4 Special Edition 2009
PACKAGE INCLUDED:
1x Generator Stator Coil
NOTICE:
Before installing your new stator
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
