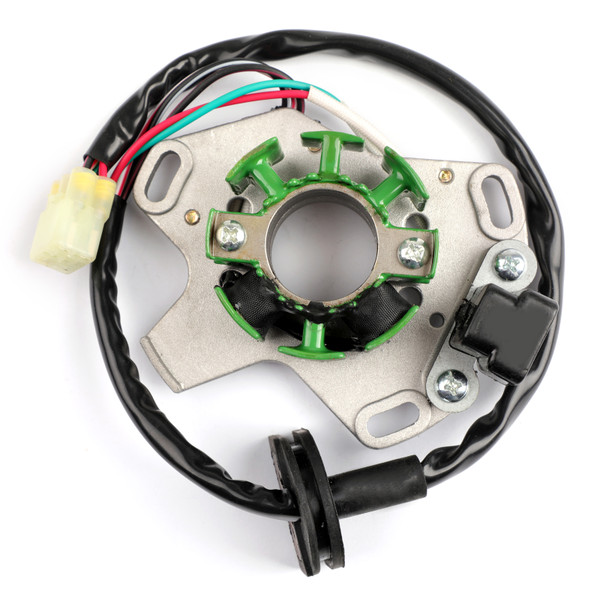

Magneto Generator Engine Stator Coil For Suzuki RM125 RM 125 2002 2003 2004
FEATURES:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials
Highest grade copper windings, resistant to 200 degrees Celsius.
Pick up pulsar coil included
Connector included
All products shipped are tested
SPECIFICATIONS:
Condition: Aftermarket 100% Brand New
Quanity: 1PC
Type: Generator Stator Coil
OEM Replacement Part Number: 32101-36F10
Dimensions :
Interior diameter : 28 mm / 1.09"
Exterior diameter : 58 mm / 2.28"
Thickness : 17 mm / 0.67"
Other specifications :
Number of wires : 5
Number of pins : 5
Number of plugs : 1
Number of fixation holes: 3
FITMENT:
Fits Suzuki RM125 2002-2004
PACKAGE INCLUDED:
1x Generator Stator Coil
NOTICE:
Before installing your new stator
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
