Product Overview

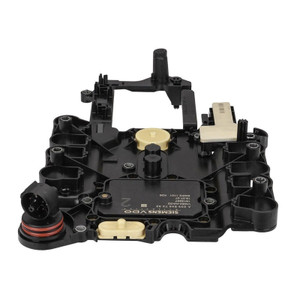

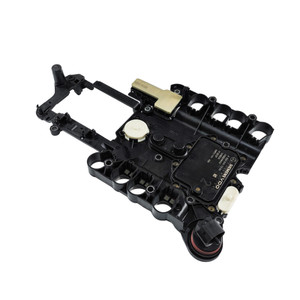

Pre-Programmed Conductor Plate VGS2 5Pin A0335457332 For Mercedes 7G Tronic 722.9
Feature:
1: According to the original factory specifications,perfect match for the original car.
2: Own different test machines to design exact accurate parameter for our products.All items were tested for performance.
3: Made by high quality material, lightweight, anti-rust, colorfast and durable.
4: Aftermarket product with premium quality.
5: Stable performance, high reliability,suitable for replacing your broken one.
Specifics:
Condition: Remanufactured
Material:Metal+Plastic
Color:show as pictures
Manufacturer Part Number:A0335457332
Interchange Part Number:A0335457332
Other Part Number: A0335457332
Type:722.9 TCM TCU Transmission Control Unit Conductor
Note: V2, 5 Plug Pin
Fitment Type:Direct Replacement
Fitment:
for MercedesBenz 7G
MERCEDES A CLASS 00-7 SP R/AWD L4 2.2L V6 2.5L 3.0L 3.5L V8 6.3L
MERCEDES A CLASS 07-7 SP R/AWD V6 3.0L V8 6.3L
MERCEDES A CLASS 07-7 SP R/AWD V6 2.5L 3.0L 3.5L
MERCEDES CL 03-7 SP R/AWD V8 5.0L 5.5L 6.3L
MERCEDES CLC 08-7 SP RWD V6 2.5L 3.5L
MERCEDES CLK 04-09 7 SP RWD V6 2.5L 3.0L 3.5L V8 5.0L 5.5L 6.3L
MERCEDES CLS 04-7 SP R/AWD V6 3.0L 3.5L V8 4.6L 5.0L 5.4L 5.5L 6.3L
MERCEDES CLS 10-7 SP RWD V8 6.3L
MERCEDES E CLASS 02-7 SP R/AWD L4 2.2L V6 2.5L 2.6L 3.0L 3.5L V8 4.0L 5.0L
MERCEDES E CLASS 09-7 SP RWD V8 5.5L 6.3L
MERCEDES E CLASS 09-7 SP R/AWD V6 3.0L 3.5L V8 5.5L
MERCEDES G WAGON 06-7 SP AWD V6 3.0L V8 4.0L 4.6L 5.5L
MERCEDES GL CLASS 06-7 SP AWD V6 3.0L V8 4.0L 4.6L 5.5L
MERCEDES GLK 08-7 SP R/AWD L4 2.2L V6 3.0L 3.5L
MERCEDES GLK 09-7 SP R/AWD V6 3.0L
MERCEDES ML CLASS 05-7 SP R/AWD V6 3.0L 3.5L V8 4.0L 4.6L 5.0L 5.5L 6.3L
MERCEDES R CLASS 05-7 SP R/AWD V6 3.0L 3.5L V8 4.6L 5.0L 5.5L
MERCEDES S CLASS 05-7 SP R/AWD L4 2.2L V6 3.0L 3.5L V8 4.0L 4.3L 4.6L 5.5L
MERCEDES S CLASS 06-7 SP R/AWD V6 3.0L 3.5L V8 4.6L 5.5L
MERCEDES SL 05-7 SP R/AWD V6 3.0L 3.5L V8 5.0L 5.5L
MERCEDES SL 07-7 SP R/AWD V8 6.3L
MERCEDES SLK 05-7 SP R/AWD L4 1.8L 2.2L V6 3.0L 3.5L V8 5.4L 5.5L
***If you are not sure, please provide vin for us.
**After Purchase, the Vin needs to be Provided for Programming. Free Programming Provided!
Package Include:
1x Pre-Programmed Conductor Plate + Programming Service
(show as pictures) High Quality, Strictly tested.
(Instruction is not inclued!)
Note:
1.Please check the description or use the year/make/model check finder and replace part numbers to confirm the compatibility before purchasing.
2.Professional installation is recommended.
Symptoms
Symptoms of a failed mechatronics transmission control module conductor plate can cause the vehicle to enter into limp mode and will also cause the following error codes - our repair service will only correct the following error codes:
Turbine Speed Sensor - Y3/8N1
- 0715 - Input/Turbine Speed Sensor Circuit Malfunction
- 0716 - Input/Turbine Speed Sensor Circuit Range/Performance
- 0717 - The signal from component Y3/8N1 (Turbine Speed Sensor (VGS)) is not available
- 0718 - The signal from component Y3/8N1 (Turbine Speed Sensor (VGS)) is defective
- P2204 - The signal from component Y3/8N1 (Turbine speed sensor (VGS)) is not available
- P2205 - The signal from component Y3/8N1 (Turbine Speed Sensor (VGS)) is defective
Internal Speed Sensor - Y3/8N2
- 2766 - Excessive rpm’s have occurred at component Y3/8n2 (Internal speed sensor (VGS))
- 2767 - The signal from component Y3/8n2 (Internal speed sensor (VGS)) is not available
- 2768 - Component Y3/8n2 (Internal speed sensor (VGS)) is defective
- P2200 - Component Y3/8n2(Internal Speed Sensor (VGS)) is not available
- P2201 - The signal from component Y3/8n2 (Internal speed sensor (VGS)) is defective
Output Speed Sensor - Y3/8N3
- 0720 - Output Speed Sensor Circuit Malfunction
- 0721 - Output Speed Sensor Range/Performance
- 0722 - The signal from component Y3/8N3 (Output Speed Sensor (VGS)) is not available
- 0723 - The signal from component Y3/8N3 (Output Speed Sensor (VGS)) is not Intermittent
- P2206 - The signal from component Y3/8N3 (Output Speed Sensor (VGS)) is not available
- P2207 - The value of component Y3/8n3 (Output Speed Sensor) is implausible
Warranty:
Warranty Period:1 Years
Return:Goods can be returned within 60 days of receipt
24-Hour Support:Customer service throughout the day
