100K-6GHz Full Band Low Noise Amplifier 20dB High Gain Power Preamplifier HT004
Description:
Amplifier Broadband Module Receiver for Shortwave, FM Radio
Feature:
ãProfessionalãHigh linearity,ultra low noise gain block amplifier. High linearity: +35dBm output IP3; high input power ruggedness, +22dBm continuous wave.
ãStable Performanceã?RF amplifier ultra bandwidth, high reliability, not easy to corrosion and fall off. Amplifier module with wide frequency range, high gain, low noise figure, unconditionally stable.
ãParametersã?Low noise amplifier module 1.95GHz at 20dB high gain, input and output impedance: 50Ω, bandwidth: 0.1MHz-6GHz.
ãAppliableã?RF amplifier has excellent performance, excellent uniformity and high reliability. It is suitable for shortwave, FM radio, remote control receiver, cable TV signal amplifier, etc.
Specification:
Item Type: Low Noise Amplifier
Product Modelï¼HT004
Material: Metal
Built-in TQP3M9037-LNA
Frequency Range: 0.1MHz-6GHz
Connector: SMA Female
Gain: 20dB
Input, Output Impedance: 50Ω
Input Voltage: 5V 70mA
Battery Type: without battery

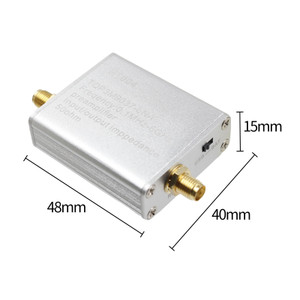

Product Size:68*40*15mm / 2.7*1.6*0.6inch
Package Included:
1 x Low Noise Amplifier
1 x USB Cable
