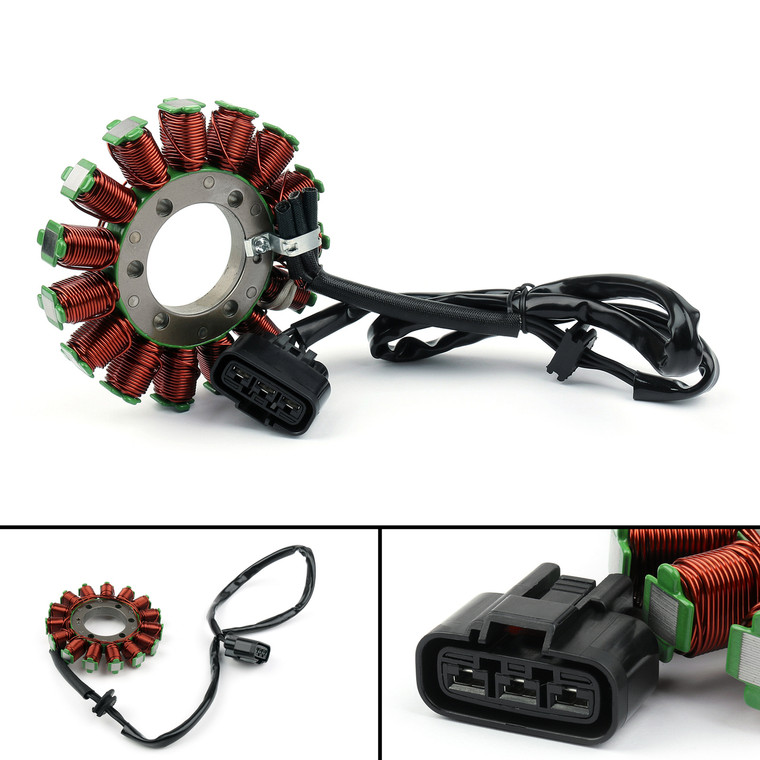

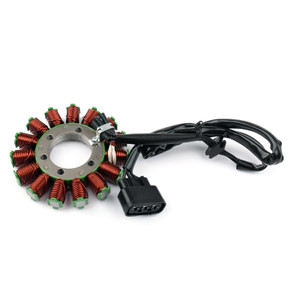

15-Pole 104mm Generator Stator Fit for BMW S 1000 RR 2009-2019 / S 1000 R 2013-2021 / S 1000 XR 2014-2019
Features:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.
Connector included.
Rubber grommet included.
All products shipped are tested.
Specifications:
Condition: Aftermarket 100% Brand New
Quanity: 1PC
Type: Stator Coil
Dimensions:
Exterior Diameter: 104mm
Interior Diameter: 38mm
other specifications:
Number of wires: 3
Number of plugs: 1
Number of pins: 3
Number of poles: 15
Replacement Part Number:
12317718420
12318553990
Fits Make/Model/Year:
12317718420
Fit for BMW S 1000 RR 2009-2019 (104mm, 15-Pole)
Fit for BMW S 1000 R 2013-2021 (104mm, 15-Pole)
Fit for BMW HP4 2012-2014 (104mm, 15-Pole)
Fit for BMW HP4 Race 2017-2018 (104mm, 15-Pole)
12318553990
Fit for BMW S 1000 XR K49 2014-2019 (104mm, 15-Pole)
Some models have multiple stators. Please double check the part number and size to make sure this part fit your motorcycle before purchasing.
The stator exterior diameter is 104mm and 15 poles, if your's 107mm and 18 poles, that will NOT fit.
(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitments)
Package Included:
1x 15-Pole 104mm Stator Generator
NOTICE:
Before installing your new stator
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Battery condition is important. No stator can make up for a bad or weak battery. If in doubt charge your battery and have it load tested, or simply replace it.
ALWAYS START WITH A FULLY CHARGED BATTERY !
The product on offer is an accessory or spare part and thus is not an original product of the vehicle manufacturer.
The name of the vehicle manufacturer is stated only as an indication of the determination of the product being offered as an accessory or spare part, to clarify, for which vehicle the product on offer fits.
Delivery:
Free Shipping
Delivery Time:3-10 Working Days
Warranty:
Warranty Period:1 Years
Return:Goods can be returned within 60 days of receipt
24-Hour Support:Customer service throughout the day
