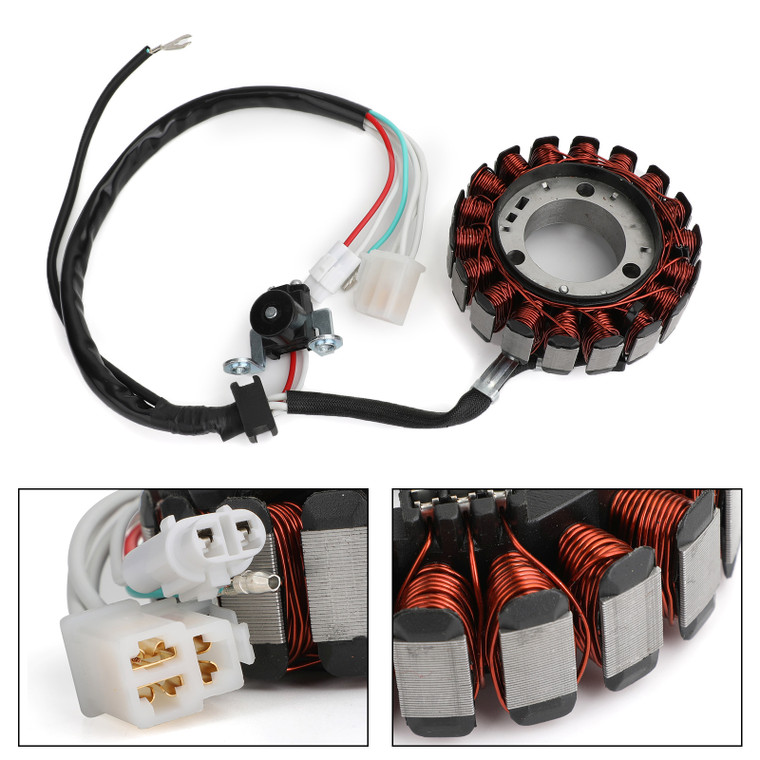

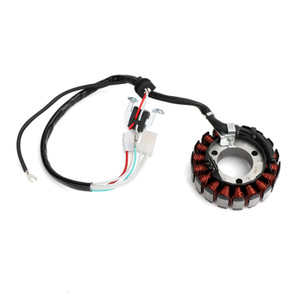

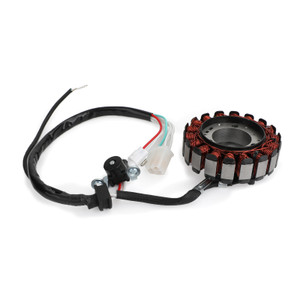

92mm Magneto Generator Stator Fit for Yamaha YBR 125 ED YBR125ED 2007-2014
Features:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.
Pick up pulsar coil included.
Connector included.
Rubber grommet included.
All products shipped are tested.
Specifications:
Condition: Aftermarket 100% Brand New
Quanity: 1PC
Type: Stator Coil
Dimensions :
Interior diameter : 36.8mm / 1.44 in
Exterior diameter : 92mm / 3.62 in
Pole's Thickness : 26.5mm / 1.04 in
Pole's Width : 11mm / 0.43 in
other specifications:
Number of wires: 6
Number of plugs: 2
Number of pins: 2 + 3 + 1 (+1)
Number of fixation holes: 3
Number of poles: 18
Replacement Part Number:
3D9-H1410-10
3D9-H1410-11
3D9-H1410-12
Fits Make/Model/Year:
Fit for Yamaha YB125SPD 2008
Fit for Yamaha YBR125ED (3D9) 2007-2009
Fit for Yamaha YBR125ED (51D) 2010-2014
2 types of stators for the YBR125, for units with 92mm OD and 18-pole stators, it will NOT fit units with 97mm OD and 8-pole stators.
Always compare the pictures of our offered stator with yours before purchasing.
(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitments)
Package Included:
1x 92mm Stator Generator
NOTICE:
Before installing your new stator
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Battery condition is important. No stator can make up for a bad or weak battery. If in doubt charge your battery and have it load tested, or simply replace it.
ALWAYS START WITH A FULLY CHARGED BATTERY !
The product on offer is an accessory or spare part and thus is not an original product of the vehicle manufacturer.
The name of the vehicle manufacturer is stated only as an indication of the determination of the product being offered as an accessory or spare part, to clarify, for which vehicle the product on offer fits.
