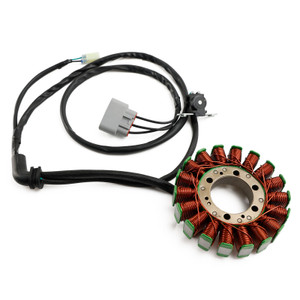

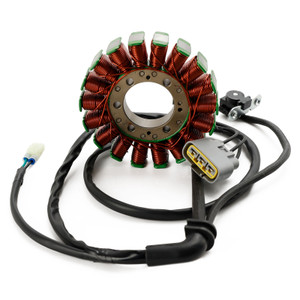

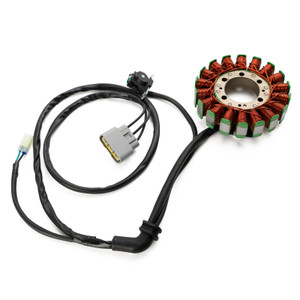

18-Pole Magneto Generator Stator with a trigger coil Fit for Tiger 800 674842 / XC / XCa / XCx/ XR / XRx 2010 - 2020
Features:
This stator is the 18 POLE VERSION.
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.

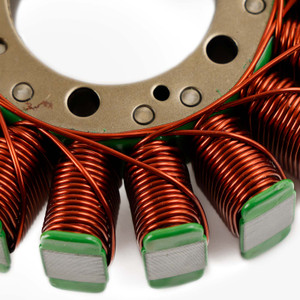

Highest grade copper windings, resistant to 200 degrees Celsius.

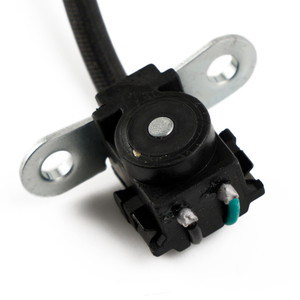

Pick up pulsar coil included.

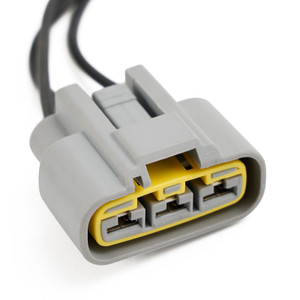

Connector included.
All products shipped are tested.
Specifications:
Condition: Aftermarket 100% Brand New
Quanity: 1PC
Type: Stator Coil
other specifications:
Number of wires: 5
Number of plugs: 2
Number of pins: 2 + 3
Number of poles: 18
Replacement Part Number:
T1305965
Fits Model/Year:
This stator is the 18-pole version stator, there's 15-pole version, make sure this is what you want.
Fit for Tiger 800 2011-2017 ((From VIN 674842)
Fit for Tiger 800 XC 2011-2017 ((From VIN 674842)
Fit for Tiger 800 XCA 2018-2020 ((From VIN 674842)
Fit for Tiger 800 XCX 2010-2020 ((From VIN 674842)
Fit for Tiger 800 XR 2010-2020 ((From VIN 674842)
Fit for Tiger 800 XRX 2010-2020 ((From VIN 674842)
(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitments)
Package Included:
1x 18-pole Stator Generator
NOTICE:
Before installing your new stator
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Battery condition is important. No stator can make up for a bad or weak battery. If in doubt charge your battery and have it load tested, or simply replace it.
ALWAYS START WITH A FULLY CHARGED BATTERY !
The product on offer is an accessory or spare part and thus is not an original product of the vehicle manufacturer.
The name of the vehicle manufacturer is stated only as an indication of the determination of the product being offered as an accessory or spare part, to clarify, for which vehicle the product on offer fits.
