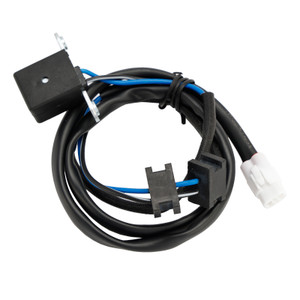

Pulsing Coil Fit For Kawasaki ATV Bayou 300 1986-2004 Lakota 300 1995-2003
Features:
Brand new pickup/pulsar coil for you to repair your stator.
Direct replacement to your original unit.
Plug-and-play, direct fit, easy installation.
Connector included.

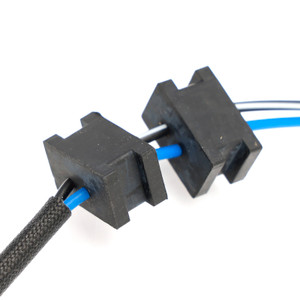

Rubber grommet included.
Often unavailable from the OEM manufacturer.
All products shipped are tested.
Specifications:
Condition: Aftermarket 100% Brand New
Quanity: 1PC

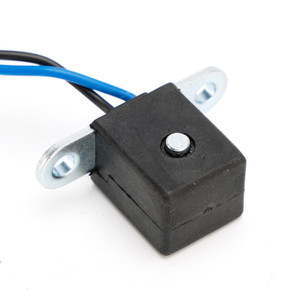

Type: Pick up pulsar coil
Dimensions:
Height: 19mm
Length: 26mm
Width: 21mm
Bracket center to center: 35mm
Wires length: Approx.665mm
other specifications:
Number of wires: 2
Number of plugs: 1
Number of pins: 2
Replacement Part Number:
59026-1069
59026-1092
Fits Make/Year/Model:
Fit for Kawasaki ATV 1986 Bayou 300 - KLF300-A1
Fit for Kawasaki ATV 1987 Bayou 300 - KLF300-A2
Fit for Kawasaki ATV 1988 Bayou 300 - KLF300-B1
Fit for Kawasaki ATV 1989 Bayou 300 - KLF300-B2
Fit for Kawasaki ATV 1989 Bayou 300 4X4 - KLF300-C1
Fit for Kawasaki ATV 1990 Bayou 300 - KLF300-B3
Fit for Kawasaki ATV 1990 Bayou 300 4X4 - KLF300-C2
Fit for Kawasaki ATV 1991 Bayou 300 - KLF300-B4
Fit for Kawasaki ATV 1991 Bayou 300 4X4 - KLF300-C3
Fit for Kawasaki ATV 1992 Bayou 300 - KLF300-B5
Fit for Kawasaki ATV 1992 Bayou 300 4X4 - KLF300-C4
Fit for Kawasaki ATV 1993 Bayou 300 - KLF300-B6
Fit for Kawasaki ATV 1993 Bayou 300 4X4 - KLF300-C5
Fit for Kawasaki ATV 1994 Bayou 300 - KLF300-B7
Fit for Kawasaki ATV 1994 Bayou 300 4X4 - KLF300-C6
Fit for Kawasaki ATV 1995 Bayou 300 - KLF300-B8
Fit for Kawasaki ATV 1995 Bayou 300 4X4 - KLF300-C7
Fit for Kawasaki ATV 1996 Bayou 300 - KLF300-B9
Fit for Kawasaki ATV 1996 Bayou 300 4X4 - KLF300-C8
Fit for Kawasaki ATV 1997 Bayou 300 - KLF300-B10
Fit for Kawasaki ATV 1997 Bayou 300 4X4 - KLF300-C9
Fit for Kawasaki ATV 1998 Bayou 300 - KLF300-B11
Fit for Kawasaki ATV 1998 Bayou 300 4X4 - KLF300-C10
Fit for Kawasaki ATV 1999 Bayou 300 - KLF300-B12
Fit for Kawasaki ATV 1999 Bayou 300 4X4 - KLF300-C11
Fit for Kawasaki ATV 2000 Bayou 300 - KLF300-B13
Fit for Kawasaki ATV 2000 Bayou 300 4X4 - KLF300-C12
Fit for Kawasaki ATV 2001 Bayou 300 - KLF300-B14
Fit for Kawasaki ATV 2001 Bayou 300 4X4 - KLF300-C13
Fit for Kawasaki ATV 2002 Bayou 300 - KLF300-B15
Fit for Kawasaki ATV 2002 Bayou 300 4X4 - KLF300-C14
Fit for Kawasaki ATV 2003 Bayou 300 - KLF300-B16
Fit for Kawasaki ATV 2003 Bayou 300 4X4 - KLF300-C15
Fit for Kawasaki ATV 2004 Bayou 300 - KLF300-B17
Fit for Kawasaki ATV 2004 Bayou 300 4X4 - KLF300-C16
Fit for Kawasaki ATV 2005 Bayou 300 4X4 (Canada Only) - KLF300-C17
Fit for Kawasaki ATV 1995 Lakota 300 - KEF300-A1
Fit for Kawasaki ATV 1996 Lakota 300 - KEF300-A2
Fit for Kawasaki ATV 1997 Lakota 300 - KEF300-A3
Fit for Kawasaki ATV 1998 Lakota 300 - KEF300-A4
Fit for Kawasaki ATV 1999 Lakota 300 - KEF300-A5
Fit for Kawasaki ATV 2000 Lakota 300 - KEF300-A6
Fit for Kawasaki ATV 2001 Lakota Sport - KEF300-B1
Fit for Kawasaki ATV 2002 Lakota Sport - KEF300-B2
Fit for Kawasaki ATV 2003 Lakota Sport - KEF300-B3
Package Included:
1x Pulsing coil
(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitments)
NOTE:
Not following these instructions may result in damaging the part or other components on your vehicle.
-By using a small soldering iron weld the wires to the ones on your OEM wiring harness.
-Insulate your solders with heat shrink.
-Before attempting to start your vehicle, adjusting the air gap is necessary for certain models.
-Rotate the fly wheel by hand so the raised node is lined up with the pick up /pulsar coil and adjust as close as possible, but no less than 0.010 in.
-If no spark or erratic spark, switch the wires at the plug.
The product on offer is an accessory or spare part and thus is not an original product of the vehicle manufacturer.
The name of the vehicle manufacturer is stated only as an indication of the determination of the product being offered as an accessory or spare part, to clarify, for which vehicle the product on offer fits.
