2007-2009 Suzuki Burgman AN400 81mm Cylinder Jug Top End Piston Gaskets Kit Generic

$186.98
SKU:
M587-A162
Shipping:
Free Shipping
81mm Cylinder Piston Gasket Top End Rebuild Kit For Suzuki AN 400 Burgman 400 2007-2009/2011-2016/2018-2024

Features:
If your cylinder blows through, the compression is too low, or even a piston seizure has occurred, then this kit is exactly the right thing for you.

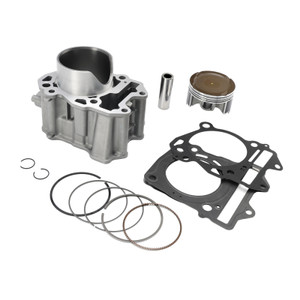

Kit includes cylinder, piston, rings, pin, clips & top end gasket kit (you get exactly what is pictured).
Piston is anodized for superior heat resistance and longer lifespan.
The gaskets use performance materials to increase durability and provide greater reliability.
Includes all gaskets pictured to rebuild top end.
Kit is for standard bore size - 81.0 mm x 77.6 mm stroke, 20mm steel piston pin.
This kit is excellent as a low-cost replacement for defects in the original cylinder.

Specifications:
Condition: Aftermarket 100% Brand New
Quantity: 1 Set
Material: Aluminum
Displacement: 400cc
Bore Type: Standard Bore
Bore diameter: STD 81 mm
Stroke: 77.6 mm
Pin diameter: 20 mm

Replacement Part Number:
Cylinder: 11211-05H00-0F0
Cylinder Base Gasket: 11241-05H10
Cylinder Head Gasket: 11141-05H00, 11141-19K00
Piston (Std): 12111-05H00-0F0, 12111-05H10-0F0, 12111-19K00-0F0
Pin, Piston: 12151-05A00
Piston Ring Set (Std): 12140-05H00, 12140-05H10, 12140-10L00
Circlips, piston (2): 09381-20004

Fits Make/Year/Model:
Fit for Suzuki Scooters 2007 Burgman 400 - AN400
Fit for Suzuki Scooters 2007 Burgman 400 - AN400AK9
Fit for Suzuki Scooters 2007 Burgman 400 - AN400K7
Fit for Suzuki Scooters 2007 Burgman 400 - AN400K8
Fit for Suzuki Scooters 2007 Burgman 400 - AN400K9
Fit for Suzuki Scooters 2008 Burgman 400 - AN400
Fit for Suzuki Scooters 2008 Burgman 400 - AN400AK9
Fit for Suzuki Scooters 2008 Burgman 400 - AN400K7
Fit for Suzuki Scooters 2008 Burgman 400 - AN400K8
Fit for Suzuki Scooters 2008 Burgman 400 - AN400K9
Fit for Suzuki Scooters 2009 Burgman 400 - AN400AK9
Fit for Suzuki Scooters 2009 Burgman 400 - AN400K7
Fit for Suzuki Scooters 2009 Burgman 400 - AN400K8
Fit for Suzuki Scooters 2009 Burgman 400 - AN400K9
Fit for Suzuki Scooters 2011 Burgman 400 - AN400
Fit for Suzuki Scooters 2011 Burgman 400 - AN400A
Fit for Suzuki Scooters 2011 Burgman 400 - AN400ZAL1
Fit for Suzuki Scooters 2012 Burgman 400 - AN400A
Fit for Suzuki Scooters 2012 Burgman 400 - AN400ZA
Fit for Suzuki Scooters 2013 Burgman 400 - AN400A
Fit for Suzuki Scooters 2013 Burgman 400 - AN400ZA
Fit for Suzuki Scooters 2014 Burgman 400 - AN400A
Fit for Suzuki Scooters 2014 Burgman 400 - AN400ZA
Fit for Suzuki Scooters 2015 Burgman 400 - AN400A
Fit for Suzuki Scooters 2015 Burgman 400 - AN400ZA
Fit for Suzuki Scooters 2016 Burgman 400 - AN400A
Fit for Suzuki Scooters 2016 Burgman 400 - AN400ZA
Fit for Suzuki Scooters 2018 Burgman 400 - AN400A
Fit for Suzuki Scooters 2019 Burgman 400 - AN400A
Fit for Suzuki Scooters 2020 Burgman 400 - AN400A
Fit for Suzuki Scooters 2022 Burgman 400 - AN400A 120A
Fit for Suzuki Scooters 2023 Burgman 400 - AN400A
Fit for Suzuki Scooters 2024 Burgman 400 - AN400A

(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitment)

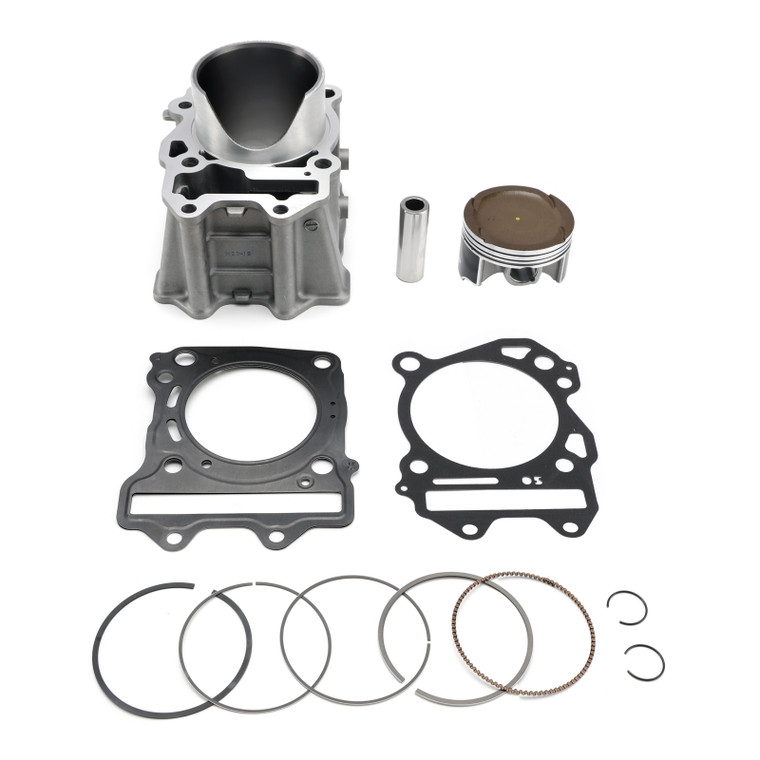

Package Includes:
1x Cylinder
1x Piston
1x Piston Ring Set
1x 20mm Wristpin
1x Circlip(2)
1x Cylinder Base Gasket
1x Cylinder Head Gasket

(Comes exactly as pictured.)

Note:
Carefully compare to your old parts to be sure this is the correct part for your machine.

The product on offer is an accessory or spare part and thus is not an original product of the vehicle manufacturer.
The name of the vehicle manufacturer is stated only as an indication of the determination of the product being offered as an accessory or spare part, to clarify, for which vehicle the product on offer Fits.
