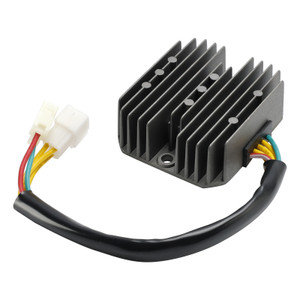

5-Wire Charging Regulator Rectifier Fit for Triton Reactor 450 Black Lizzard 450 / ACCESS AMS 4.38 Xtreme 480
Features:
OEM quality, direct replacement to your original unit.
Perfect fit and ready to install.
Always use a sealant to mount the cable gland joint.
All products shipped are tested.
Instruction is NOT included.
Attention:
This regulator is not suitable for lithium-ion batteries! The battery or other electric parts can be damaged!
Specifications:
Condition: Aftermarket 100% Brand New
Quanity: 1 PC
Type: Regulator / Rectifier
Other specifications:
Number of wires: 5
Number of plugs: 2
Number of pins: 2 + 3
Please compare the number of pins and plugs with the old part before purchasing.
Wiring Diagram:
Yellow - Alternator Coil
Yellow - Alternator Coil
Yellow - Alternator Coil
Red - Battery (+)
Green - Ground
Replacement Part Number:
61120-A12-100
ACC-61120-A12-100
A61120-A12-100
Fits Make/Model:
61120-A12-100
ACC-61120-A12-100
Fit for Access ATV AMS 480 / 4.38 SM
Fit for Access ATV AMS 480 / 4.38 SX
Fit for Access ATV Xtreme 480 Enduro
Fit for Access ATV Xtreme 480 Supermoto
Fit for GOES ATV 450R SM
61120-A12-100
A61120-A12-100
Fit for Triton ATV Black Lizard 450 2012
Fit for Triton ATV Reactor 450 Enduro LOF
Fit for Triton ATV Reactor 450 Crosser 2010
Fit for Triton ATV Reactor 450 Supermoto 2008-2009
Fit for Triton ATV Reactor 450 Supermoto 2010
Fit for Triton ATV Reactor 450 Crosser 2008-2009
Fit for Triton ATV Reactor 450 SM
Fit for Triton ATV Reactor 450 Enduro/ LoF (SP450S)
(Compatibility Chart is for reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitment)
Package includes:
1x 5-Wire Regulator Rectifier
Note:
Signs that your regulator needs replacing:
Depending on the location of the regulator rectifier, the part can easily overheat. Other causes for a dead regulator rectifier center on the battery. Ground connections are important for good voltage, and if there is a faulty voltage, the regulator rectifier can run hot. Bad grounding, corroded battery connection and poor or loose battery connections will cause faulty voltage too.
There are generally two ways for the regulator rectifier to fail:
The first deals with diode burnout, resulting in battery drain. It is easy to assume that the issue is a bad battery because of symptoms such as dimming headlights and poor starts. Checking the voltage with a voltmeter versus relying on symptoms alone will prove highly beneficial. If the voltage drops below 13 volts, the motorcycle will begin to drain the battery and eventually the engine will stop. Check for bad connections and corrosion; these can also cause voltage issues.
The other failure type is shunt regulator burnout, where the regulator rectifier fails to control the voltage, resulting in battery overcharge. Again, a voltmeter will be useful for diagnosis. Though generally, readings above 17 volts mean the regulator rectifier is not converting the excess power correctly and all of that excess voltage may cause the headlights to become extremely bright and then blow.
The product on offer is an accessory or spare part and thus is not an original product of the vehicle manufacturer.
The name of the vehicle manufacturer is stated only as an indication of the determination of the product being offered as an accessory or spare part, to clarify, for which vehicle the product on offer fits.
