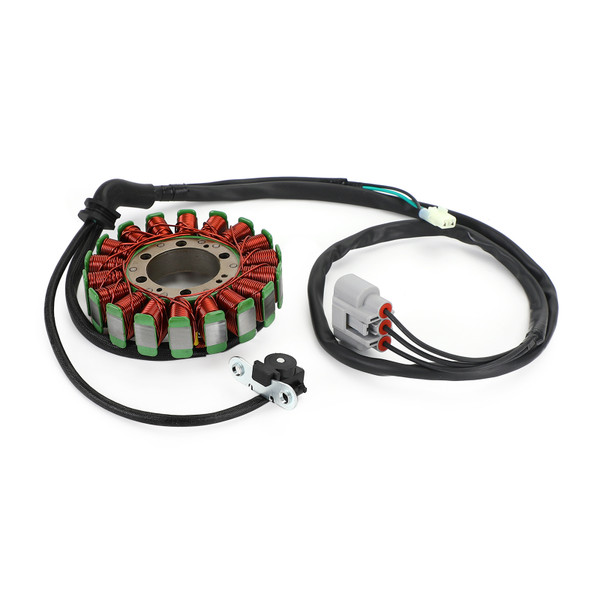

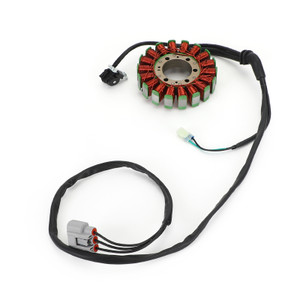

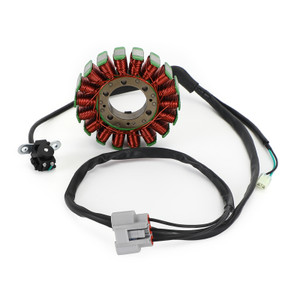

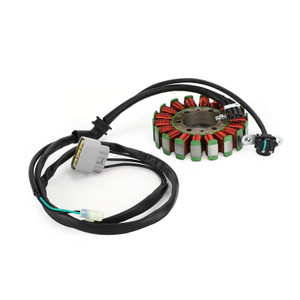

Magneto Generator Stator Fit for Street Triple 765 Street Triple 660 #. T1300205
Features:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.
Pick up pulsar coil included.
Connector included.
Rubber grommet included.
All products shipped are tested.
Specifications:
Condition: Aftermarket 100% Brand New
Type: Generator Stator Coil
other specifications:
Number of wires: 5
Number of plugs: 2
Number of pins: 2 + 3
Number of fixation holes: 5
Number of poles: 18
Dimensions:
Exterior Diameter: 115mm
Interior Diameter: 42mm
Replacement Part Number:
T1300205
Fitments:
Fit for Street Triple 660 S A2 2020
Fit for Street Triple 660 S Lams Compliant 2017-2020
Fit for Street Triple 765 R 2017-2020
Fit for Street Triple 765 RS 2017-2020
Fit for Street Triple 765 S 2017-2019
(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitments)
Package Included:
1x 115mm Generator Stator
NOTICE:
Before installing your new stator
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
