230W 7R Beam Zoom Sharpy 8 Prism DMX Stage Lighting Moving Head Light Disco Show Generic
230W 7R Beam Zoom Sharpy 8 Prism DMX Stage Lighting Moving Head Light Disco Show Generic
230W 7R Beam Zoom Sharpy 8 Prism DMX Stage Lighting Moving Head Light Disco Show

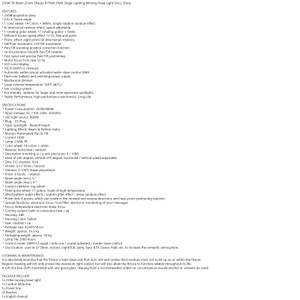

FEATURES
* 230W projection lamp
* 0 to 4° beam angle
* 1 color wheel, 14 Colors + White, Single rotation rainbow effect.
* Bi-directional rainbow effect, speed adjustable.

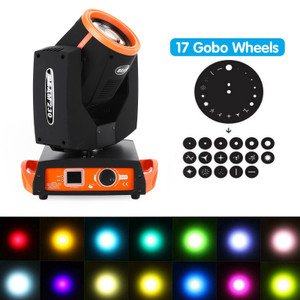

* 1 rotating gobo wheel, 17 rotating gobos + blank.
* Different strobe speed effect 12 t/s, free and pulse.
* Prism effect: eight prism (bi-directional rotation).
* 540°Pan movement, 270°Tilt movement.
* Pan/Tilt scanning position correction function
* 16-bit precision smooth Pan/Tilt rotation
* Fast, quiet and precise Pan/Tilt positioning
* Motor focus from near to far
* LCD color display
* 16CH DMX512 channels
* Automatic patter/sound activate/master-slave control DMX
* Electronic ballasts and switching power supply
* Mechanical dimmer
* Large external temperature 104°F (40°C)
* Fan cooling system
* Eco-friendly, replaces far larger and more epxensive spotlights.
* Stable Performance, high-performance electronics, Long Life.
SPECIFICATIONS
* Power Consumption: 350W/400W
* Input Voltage: AC 110V-240V, 50/60Hz
* LED light source: RGBW
* Plug: US Plug
* Type: Spotlight - Beam/Pinspot
* Lighting Effects: Beam & Pattern Gobo
* Motion: Automated Pan & Tilt
* Control: DMX
* Lamp: 230W 7R
* Color wheel: 14 colors + white
* Reverse: horizontal / vertical
* Description trimming (x / y-axis precision): 8 / 16bit
* Level of 540 degree, vertical 270 degree, horizontal / vertical speed adjustable
* Dmx 512 channel: 16ch
* Strobe: 0-12 times / second
* Dimmer: 0-100% linear adjustment
* Prism: 8 facets - rotation
* Beam angle (min.): 0 °
* Beam angle (max.): 4 °
* Control interface: Jog wheel
* Fixed gobo wheel: 17 gobos, made of high temperature
* Effect:pattern water effects / pattern jitter effect / linear rainbow effect
* Prism disk: 8 prisms, which can rotate in the forward and reverse directions and have prism positioning function
* Special functions: electronic focus, frost filter, electronic monitoring of error messages
* Focus: independent electronic linear focus
* Cooling system: built-in convection heat / air
* Housing: ABS
* Housing Color: Yellow

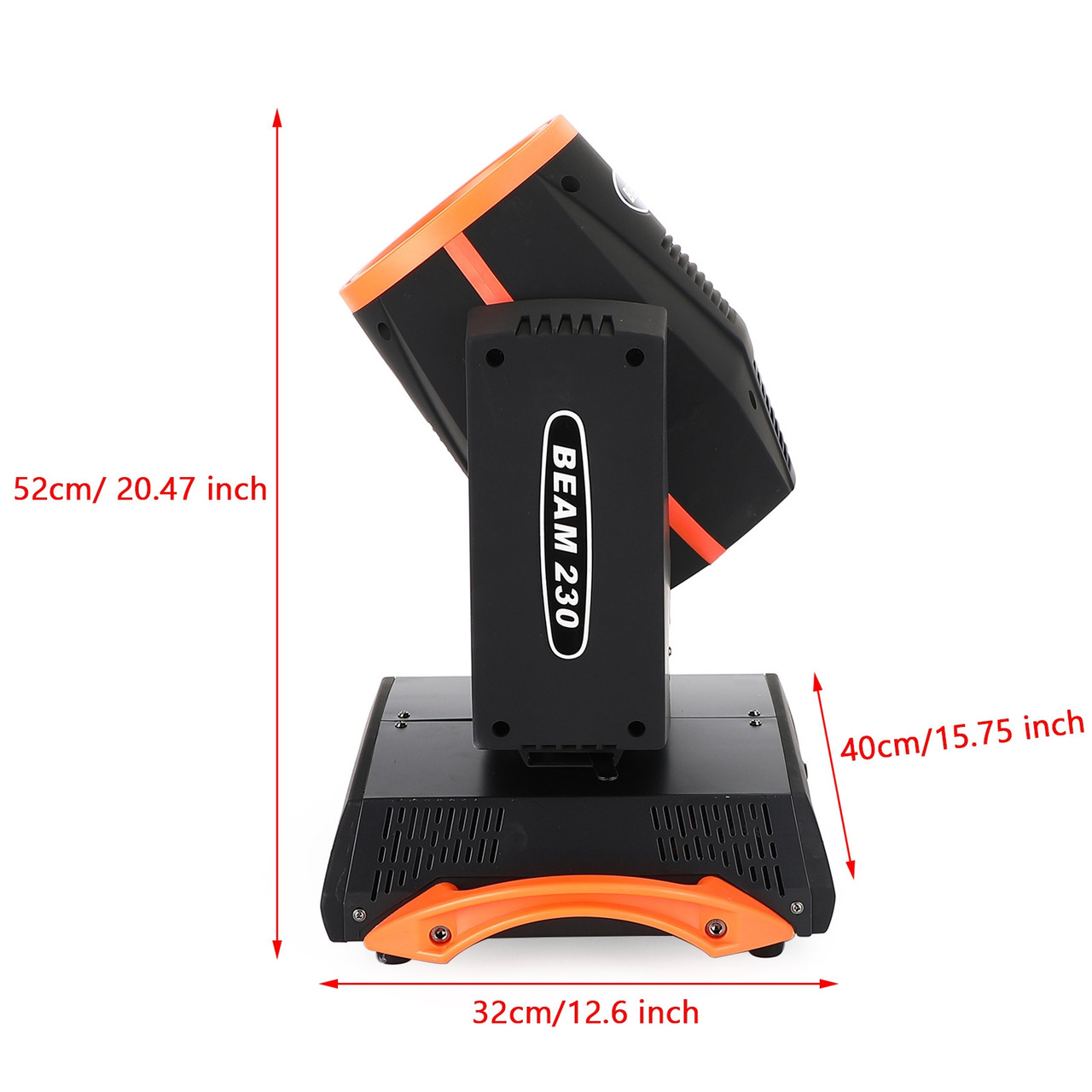

* Size: 33x30x51 cm
* Package size: 42x47x58 cm
* Weight: approx. 16.5 kg
* Packaging weight: approx. 18 kg
* Lamp life: 2000 hours
* Control mode: DMX512 signal / Auto run / sound activated / master-slave control
* Use location: used in DJ Show, concert, nightclub, party, bars, KTV, Dance Halls, etc. to increase the romantic atmosphere.
CLEANING & MAINTENANCE
It is absolutely essential that the fixture is kept clean and that dust, dirt and smoke-fluid residues must not build up on or within the fixture.
Regular cleaning will not only ensure the maximum light-output, but will also allow the fixture to function reliably throughout its life.
A soft lint-free cloth moistened with any good glass cleaning fluid is recommended, under no circumstances should alcohol or solvents be used!

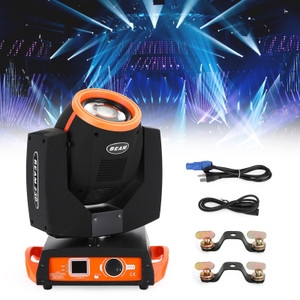

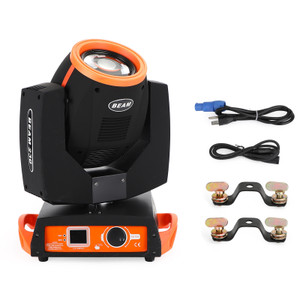

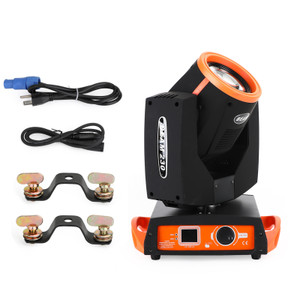

PACKAGE INCLUDE
1x 230w moving head light
1x Control table line
1x Power line
2x Bracket
1x English manual
Delivery:
Free Shipping
Delivery Time:2-7 Working Days
Warranty:
Warranty Period:1 Years
Return:Goods can be returned within 60 days of receipt
24-Hour Support:Customer service throughout the day
