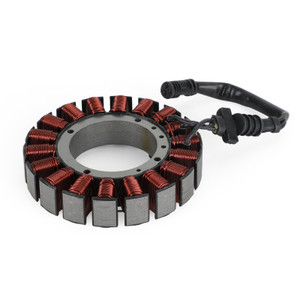

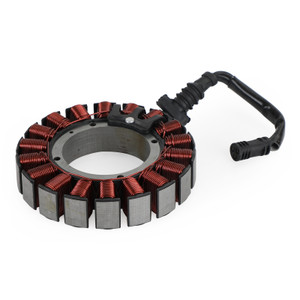

Generator Stator Alternator Fit for FLS FXCW FLST Softail Rocker FLD Dyna 30017-08
Features:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.
Highest grade copper windings, resistant to 200 degrees Celsius.
Connector included.
All products shipped are tested.
Specifications:
Condition: Aftermarket 100% Brand New
Quanity: 1PC
Type: Generator Stator Coil
Other Specifications:
Number of wires: 3
Number of pins: 3
Number of plugs: 1
Number of fixation holes: 4
Number of poles: 18
Ampere: 40A
Watt: 540W
Replacement Part Number:
30017-08
Fitments:
Fit for FLS Slim 2017
Fit for FLS Softail Slim S 2016
Fit for FLS Softail Slim 2012-2015
Fit for FLS 103 Softail Slim 2012-2015
Fit for FXCWC Rocker C 2008-2010
Fit for FXCW Rocker 2008-2009
Fit for FXCWC Rocker 2008-2009
Fit for FLSTF Fat Boy 2008-2017
Fit for FLSTF 103 Fat Boy 2012-2015
Fit for FLSTN Deluxe 2017
Fit for FLSTSB Cross Bones 2008-2011
Fit for FLSTN Softail Deluxe 2008-2016
Fit for FLSTNSE CVO Softail Deluxe 2014-2015
Fit for FLSTN 103 Softail Deluxe 2012-2015
Fit for FLSTFBS Fat Boy 2016-2017
Fit for FLSTFB Fat Boy Lo 2010-2017
Fit for FLSTFB ANV Fat Boy Lo ANV 2013
Fit for FLSTFB 103 Fat Boy Lo 2012-2015
Fit for FLSTFB 103 ANV Fat Boy Lo ANV 2013
Fit for FLSTSE CVO Softail Convertible 2010-2012
Fit for FLD Dyna Switchback 2012-2016
Fit for FLD 103 Dyna Switchback 2012-2016
Fit for FLST Heritage Softail 2008-2009
Fit for FLSTC Heritage Softail Classic 2008-2017
Fit for FLSTC ANV Heritage Softail Classic 2013
Fit for FLSTC 103 Heritage Softail Classic 2012-2015
Fit for FLSTC 103 ANV Heritage Softail Classic 2013
Fit for FLSTF Fat Boy 2008-2017
Fit for FLSTF 103 Fat Boy 2012-2015
(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitments)
Package Includes:
1x Generator Stator Coil
NOTICE:
Before installing your new stator
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
