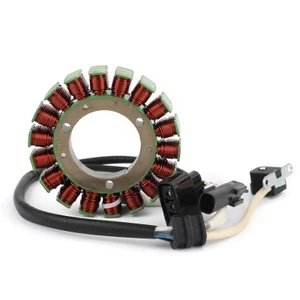

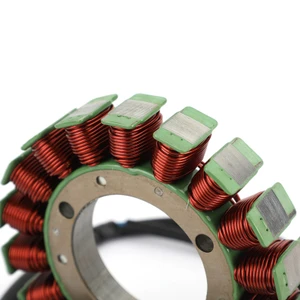

115mm Magneto Generator Stator Fit for UTV,700,550,500,HiSUN,Coleman,Cub Cadet,Sector,2015-2017
Features:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.
Pick up pulsar coil included.
Connector included.
Rubber grommet included.
All products shipped are tested.
Specifications:
Condition: Aftermarket 100% Brand New
Quanity: 1PC
Type: Stator Coil
Dimensions:
Interior diameter : 53.9mm / 2.12 inches
Exterior diameter : 114.9mm / 4.52 inches
Pole's Thickness : 23.9mm / 0.94 inches
Pole's Width : 14.2mm / 0.55 inches
other specifications:
Number of wires: 5
Number of plugs: 2
Number of pins: 2 + 3
Number of poles: 18
Replacement Part Number:
P007G00311200000
31120-007G-0000
Fits Make/Model/Year:
Fits New Wiring Plug from HiSUN 500, 550 AND 700 UTV'S 2015-2017
Only fit 115mm / 4.5" in stator diameter model, will not fits 127mm / 5" in stator diametor model.
Fit for Hisun Motors P007G00311200000
Fit for Hisun Motors Vforge 550 HS550
Fit for Hisun Motors Sector 550 HS550 UTV
Fit for Hisun Motors Vector 750 HS750 UTV
Fit for Hisun Motors Strike 550 2017
Fit for Hisun Motors Sector 550 2017
Fit for Hisun Motors Sector 450 2015-2016
Fit for Hisun Motors Sector 550 2017
Fit for Hisun Motors Sector 750 2016-2017
Fit for Hisun Motors Sector 750 CREW 2017
Fit for Hisun Motors Vector 550 2016-2017
Fit for Hisun Motors Vector 500 HD 2017
Fit for Hisun Motors Vector 550 2016-2017
Fit for Hisun Motors Vector 750 2016-2017
Fit for Hisun Motors Vector 750 Crem 2017
Fit for Hisun Motors Tactic 550 2017
Fit for Hisun Motors Tactic 750 2017
Fit for Hisun Motors Forge 450 2015-2016
Fit for Hisun Motors Forge 550
Fit for Coleman Outfitter 31120-007G-0000
Fit for Coleman Outfitter 450 UTV
Fit for Coleman Outfitter 750 UTV
Fit for Coleman Outfitter 500-C Camo UTV
Fit for Rural King RK Performance 450
Fit for Rural King RK Performance 550
Fit for Rural King RK Performance 750
Fit for Rural King RK Performance 750 Crew
(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitments)
Package Included:
1x 115mm Stator Generator
NOTICE:
Before installing your new stator
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Battery condition is important. No stator can make up for a bad or weak battery. If in doubt charge your battery and have it load tested, or simply replace it.
ALWAYS START WITH A FULLY CHARGED BATTERY !
The product on offer is an accessory or spare part and thus is not an original product of the vehicle manufacturer.
The name of the vehicle manufacturer is stated only as an indication of the determination of the product being offered as an accessory or spare part, to clarify, for which vehicle the product on offer fits.
