95mm Stock Standard Bore Cylinder Piston Rebuild Kit For Yamaha YFZ450R YFZ450X 2009-2021 WR450F 2007-2015 YZ450F 2006-2009
Features:
Kit includes piston, rings, pin, clips & top end gasket kit (you get exactly what is pictured).
Cast piston has super-high silicone content for additional strength.
Piston is anodized for superior heat resistance and longer lifespan.
The gaskets use performance materials to increase durability and provide greater reliability.
Includes all gaskets pictured to rebuild top end.
Kit is for standard bore size - 95.00 mm.
Specifications:
Condition: Aftermarket 100% Brand New
Quantity: 1 Set
Piston Material: Forged Aluminum
Actual Displacement: 449cc
Bore Type: Stanard Bore
Bore Size: STD 95.00mm
Stroke: 63.40mm
Pin Length: 48mm
Pin Diameter: 20mm
Replacement Part Number:
Cylinder: 2S2-11311-00-00, 2S2-11311-10-00, 2S2-11311-11-00, 2S2-11311-20-00, 2S2-11311-30-00
Cylinder Base Gasket: 2S2-11351-00-00
Cylinder Head Gasket: 2S2-11181-00-00
Chain Tensioner Gasket: 4FM-12213-00-00
Exhaust Gasket: 3VD-14613-01-00
Piston: 5TG-11631-12-00
Pin, piston: 5TG-11633-10-00
Ring Set, piston: 5TG-11603-00-00
Circlips, piston: 93450-22027-00
Fitments:
Fits Yamaha YFZ450R and YFZ450X FUEL INJECTED models ONLY.
Fit for Yamaha YFZ450R 2009 - 2021
Fit for Yamaha YFZ450X 2010 - 2011
Will NOT fit YFZ450 CARBURETED MODEL Models.
Also fits WR450F & YZ450F Dirt Bike.
Fit for Yamaha WR450F 2007 - 2015
Fit for Yamaha YZ450F 2006 - 2009
(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitment)
Package Includes:

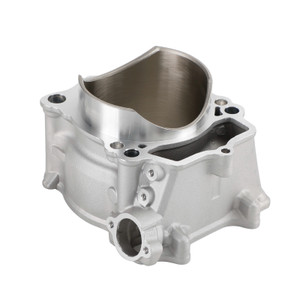

1x 95mm Cylinder
1x Piston(STD)
1x Piston Ring Set
1x Wristpin
1x Circlip(2)
1x Cylinder Base Gasket
1x Cylinder Head Gasket
1x Chain Tensioner Gasket
1x Exhaust Gasket
Note:
Please check out the product and part number we provided fits your motorcycle or not before you purchase.
Delivery:
Free Shipping
Delivery Time:3-7 Working Days
Warranty:
Warranty Period:1 Years
Return:Goods can be returned within 60 days of receipt
24-Hour Support:Customer service throughout the day
