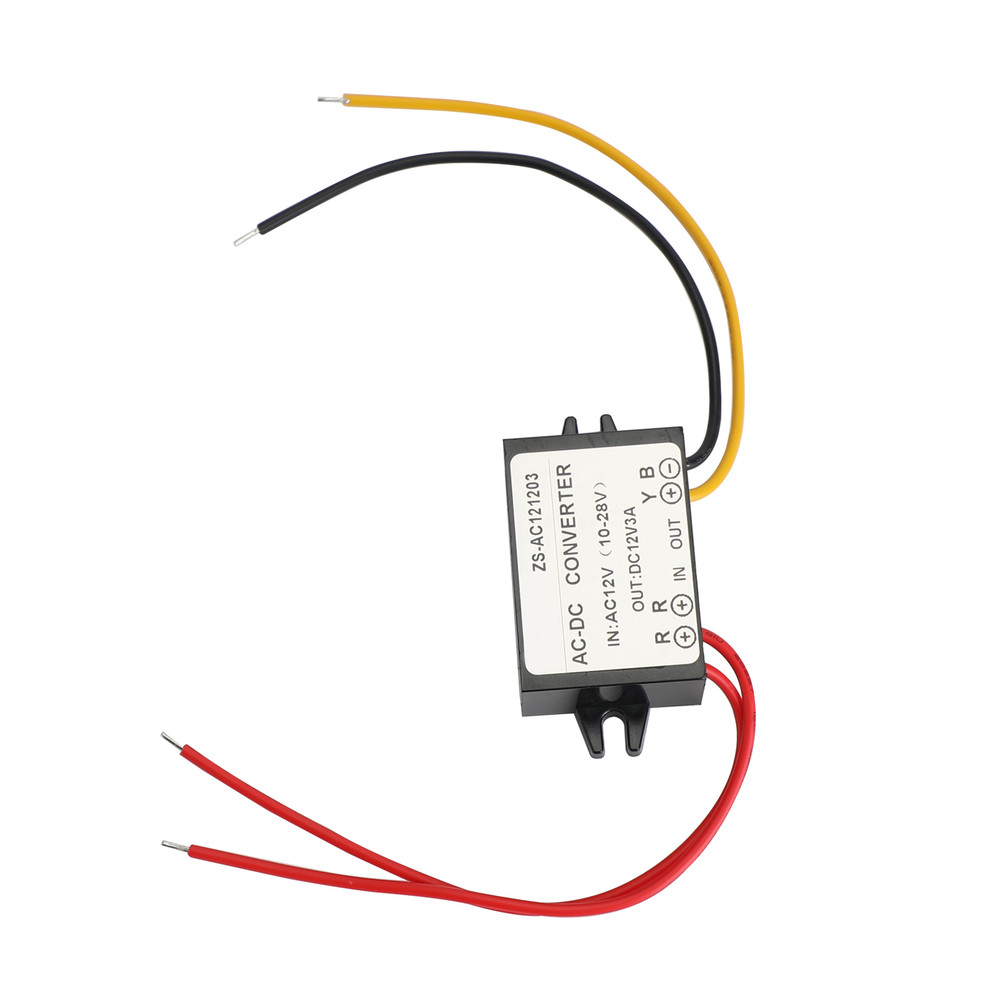

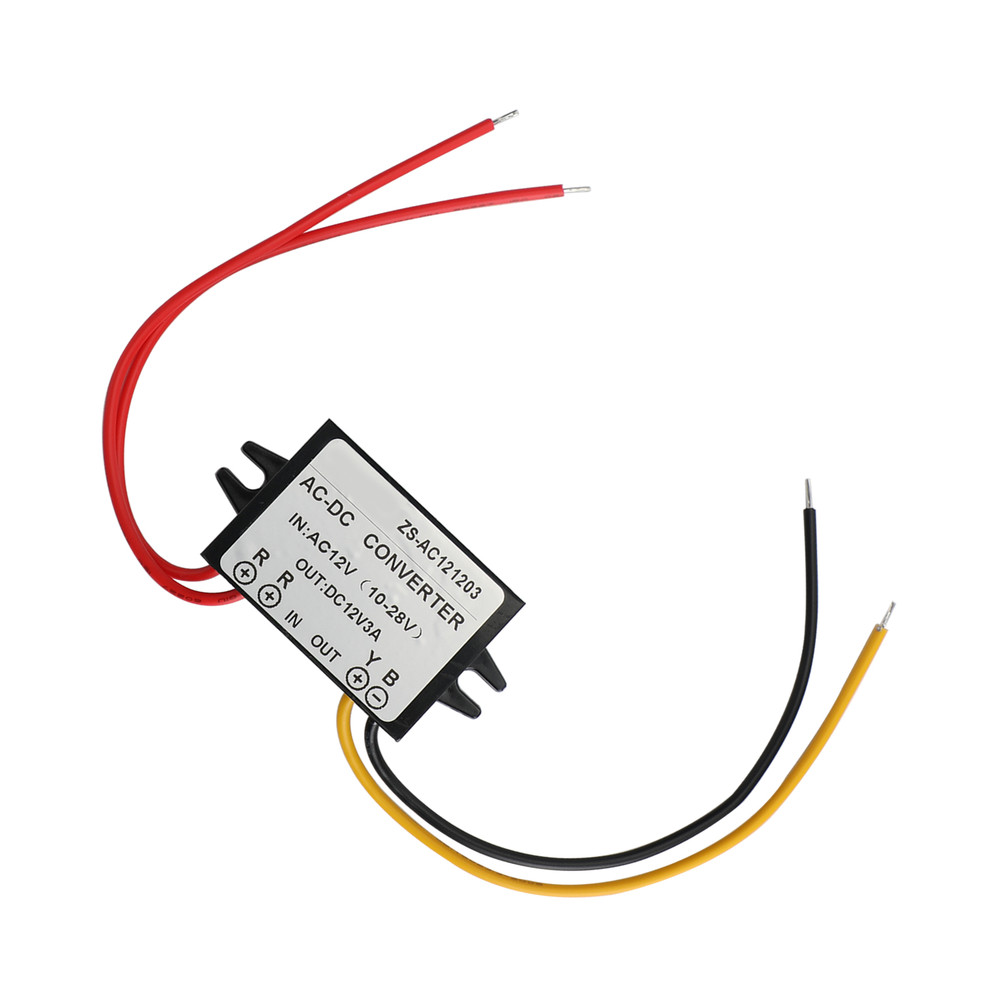

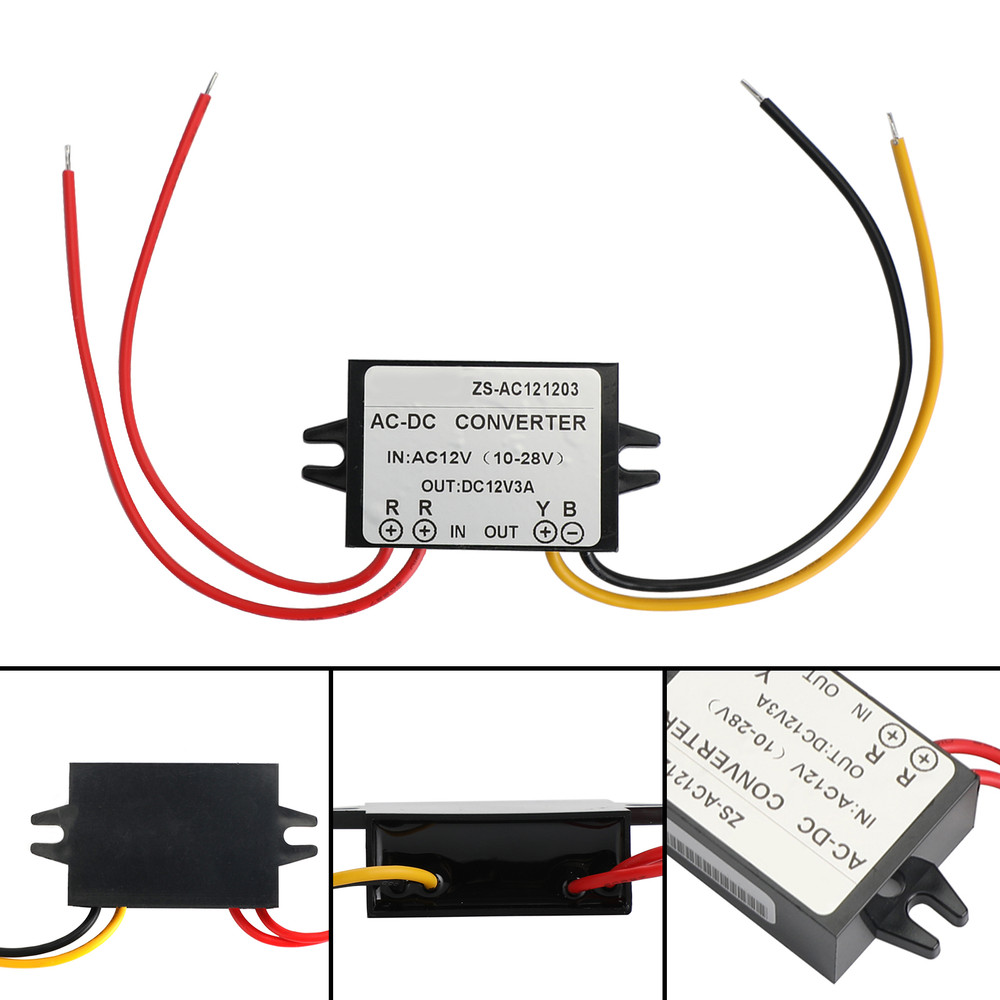

AC 10-28V To DC 12V 3A Buck Converter Ac-Dc Step Down Power Supply Module
Feature:
1: Highly integrated SMD components for high stability and reliability.
2: Small Size,Easy to install,with overvoltage, overcurrent, short circuit protection.
3: IP67 waterproof and dustproof, easily adapt to various working environment.
4: Flame retardant plastic housing, safe and reliable.
5: Widely used in motors, security, ships, automobiles, solar energy, substations, industrial substations, motors, aerospace, lamps and other applications of the same voltage.

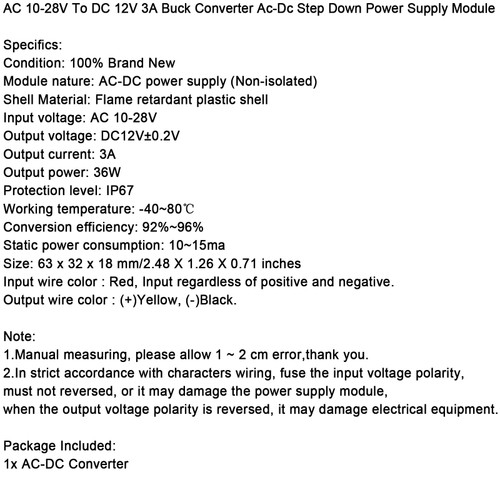

Specifics:
Condition: 100% Brand New
Module nature: AC-DC power supply (Non-isolated)
Shell Material: Flame retardant plastic shell
Input voltage: AC 10-28V
Output voltage: DC12V±0.2V
Output current: 3A
Output power: 36W
Protection level: IP67
Working temperature: -40~80℃
Conversion efficiency: 92%~96%
Static power consumption: 10~15ma
Size: 63 x 32 x 18 mm/2.48 X 1.26 X 0.71 inches

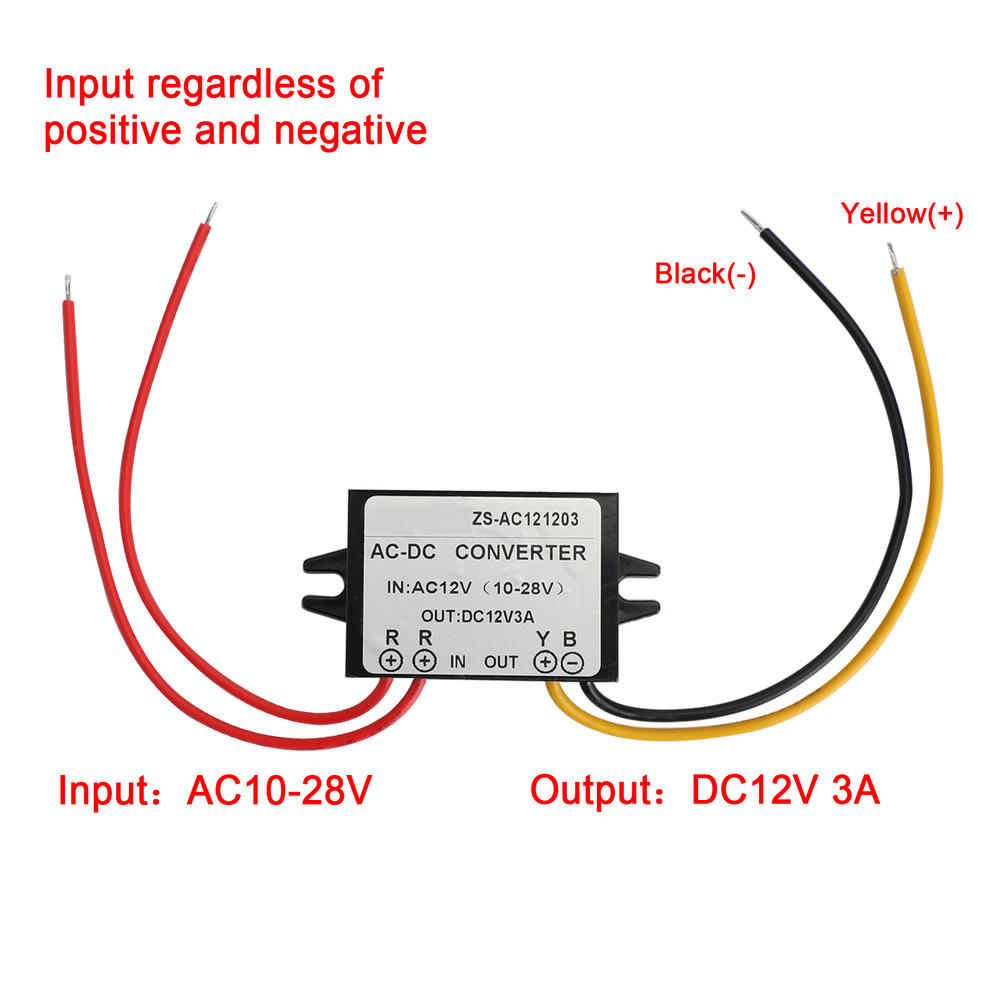

Input wire color : Red, Input regardless of positive and negative.
Output wire color : (+)Yellow, (-)Black.
Note:
1.Manual measuring, please allow 1 ~ 2 cm error,thank you.
2.In strict accordance with characters wiring, fuse the input voltage polarity,must not reversed, or it may damage the power supply module, when the output voltage polarity is reversed, it may damage electrical equipment.
Package Included:
1x AC-DC Converter
