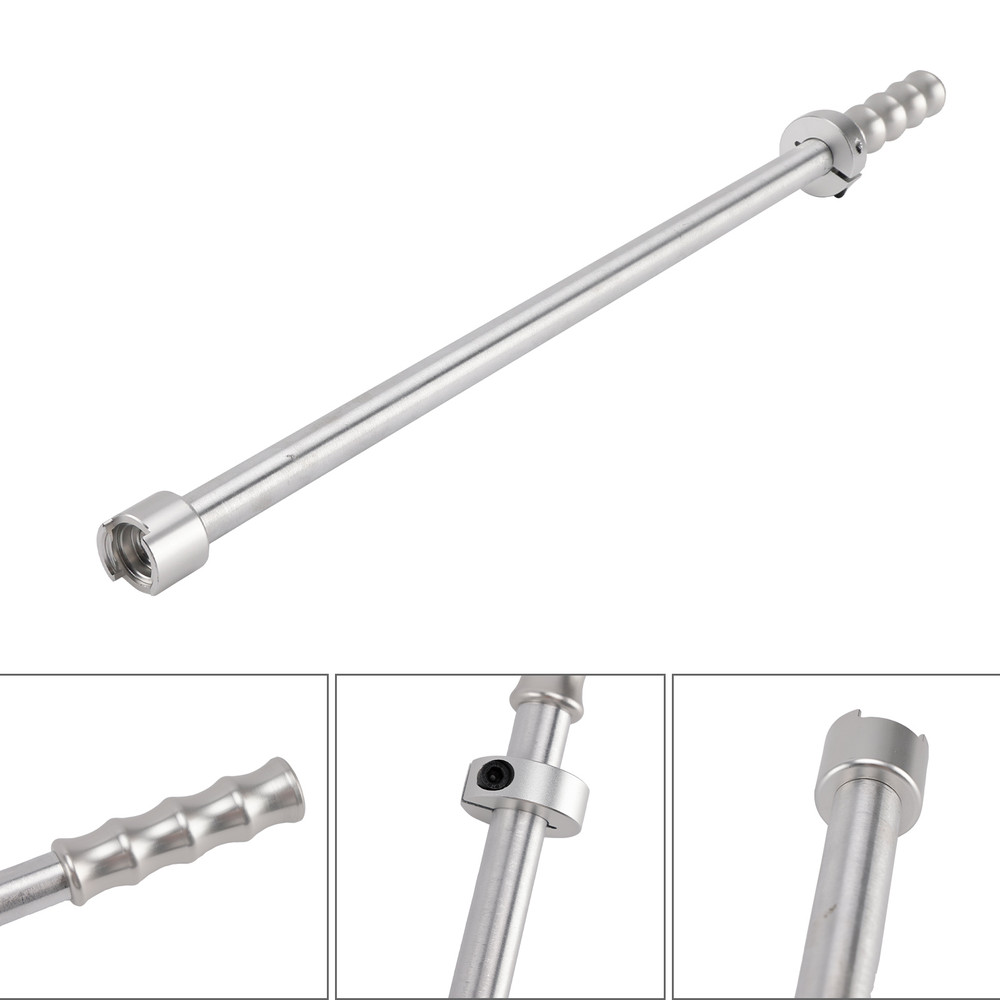

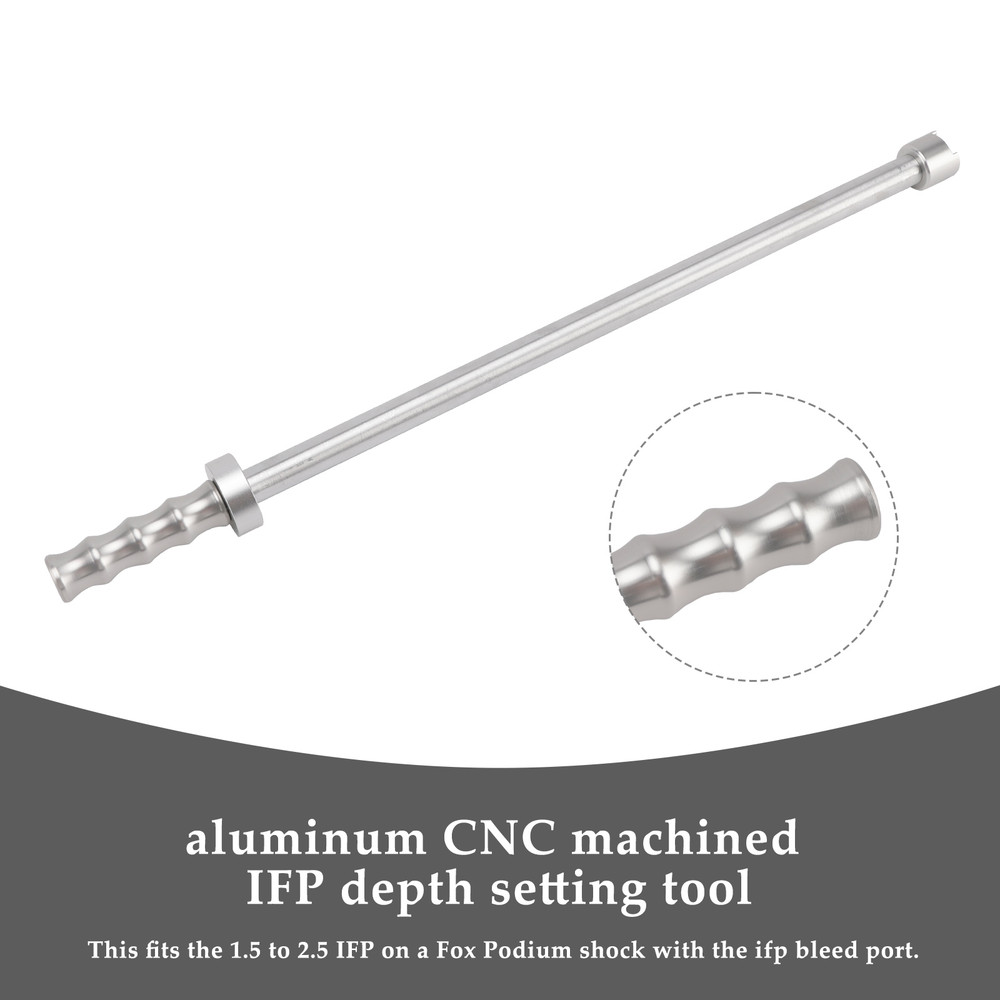

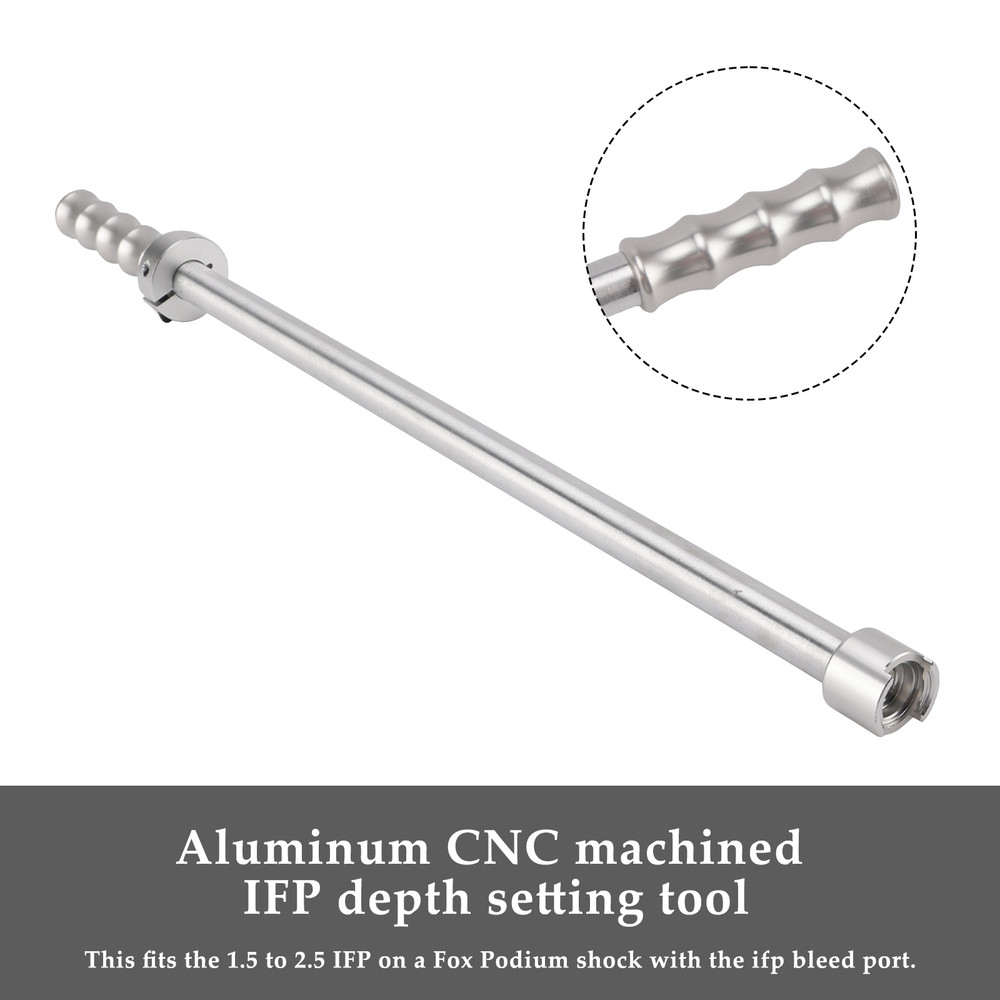

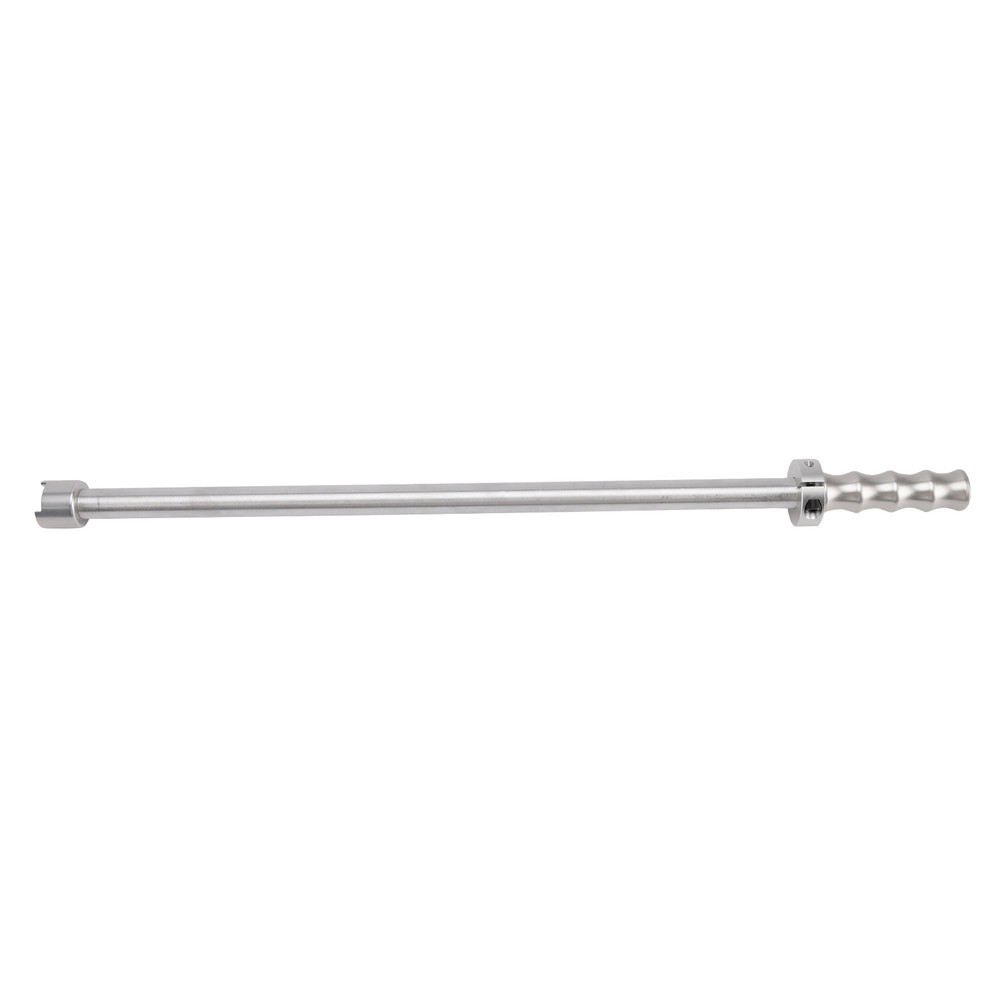

This is for a 6061 aluminum CNC machined IFP depth setting tool. This will not work for FOX bicycle shocks,. This fits the 1.5 to 2.5 IFP on a Fox Podium shock with the ifp bleed port.

This also fits Schmitty racing IFP's made for the same application

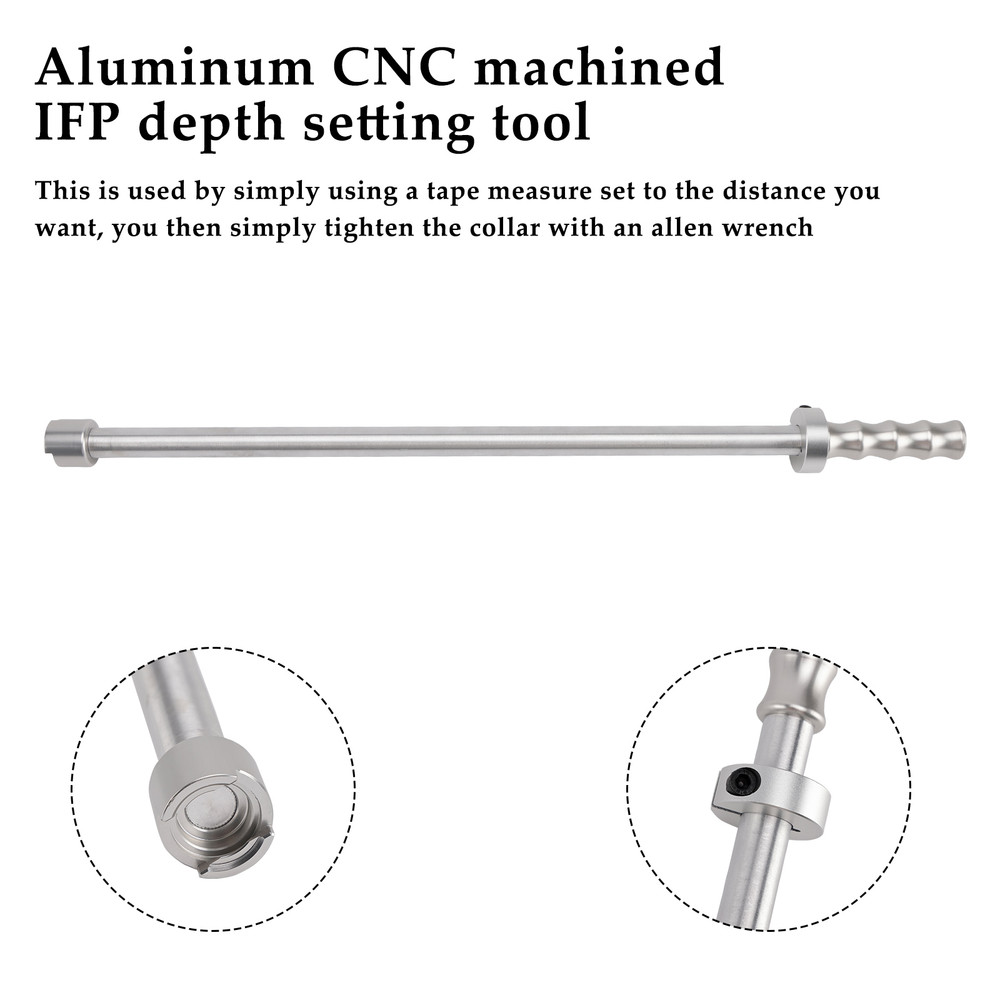

This is used by simply using a tape measure set to the distance you want, you then simply tighten the collar with an allen wrench. Then you push the IFP down using the tool until the collar is even with the top on the shock and your done. Just turn while pulling up with light pressure until the tool releases.

To remove the ifp simply put the tool down the tube and set it on the IFP then wiggle it slightly while turning the tool and it fall into place. Then while pushing down slightly turn the tool back and forth so it can self center and turn onto the ifp ears. Then a simple 90 degree turn and your ready to pull it out.

This tool has a working range of 15.5" to 1"

Specifics:
Condition: 100% Brand New
Material: aluminum
Color:As shown in the figure
Manufacturer Part Number : NA
Interchange Part Number: NA
Type: IFP Depth Setting/Removal tool
