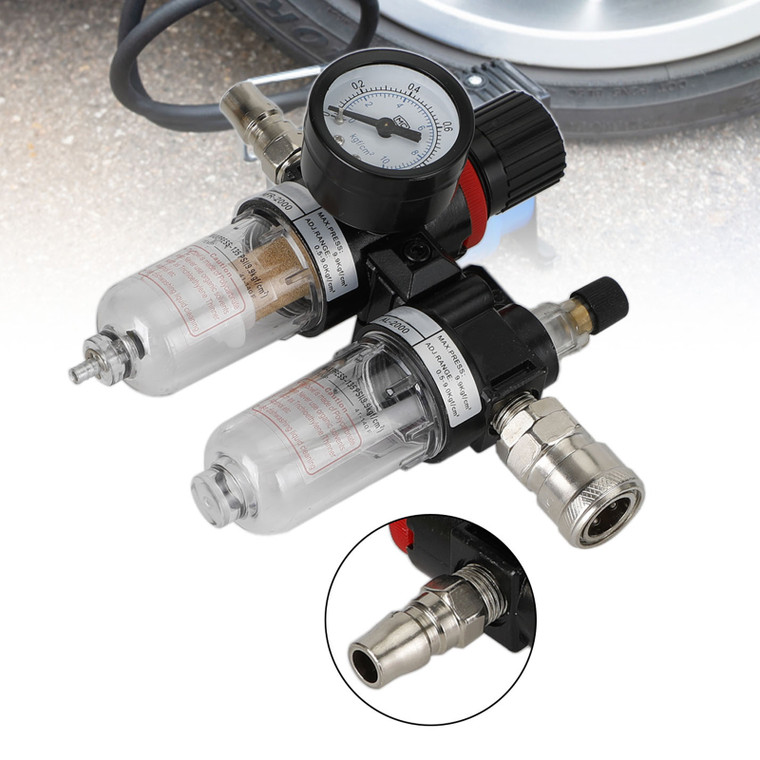

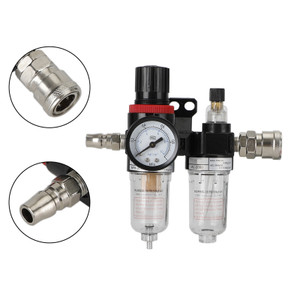

AFC2000 Air Compressor Filter Tool Reduce Valve Regulator Oil Water Separator
Feature:
1: Made of high quality material, it is durable.
2: Easy to install and disassemble.
3: Use to control the pressure element and the backlog.
4: It uses the intake throttle pressure, by the force balance and overflow regulator.
5: Clockwise to increase pressure and anticlockwise reduce pressure.
6: To change the gas line pressure, first pull out the hand wheel, and then to get any pressure
within the specified range through mediation plastic handwheel.
7: Application range: air compressors, pneumatic tools, gas connection installation, effective filtration of air moisture.
Specifics:
Condition: 100% Brand New
Type: Air Source Treatment Filter
Material : Plastic + Metal
Working Medium :Air
Max Pressure : 9.9kgf / cm2
Adjustable Pressure Range : 0.5-9.0kgf/cm2
Pressure Gauge Range : 0-1MPa, 0-10kgf / cm2
Joint Tube Diameter : 1/4"
Filter Accuracy: 40μm
Note:
1.Please allow 1-5mm errors due to manual measurement.
2.Item color displayed in photos may be showing slightly different on your computer monitor since monitors are not calibrated same.
Package Included:
1 X Pressure Gauge
1 X Quick Connector
1 X Air Source Treatment Filter
