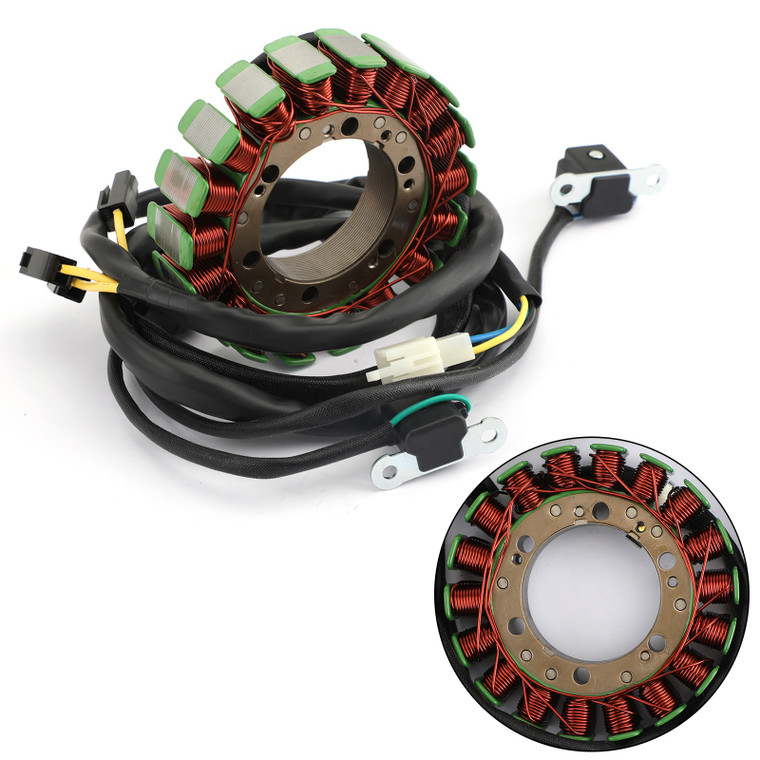

Magneto Generator Engine Stator Coil Fit For Suzuki VS700 GL/GLE Intruder 700 1986-1987
Features:
1.Free Shipping
2.Low price and good quality
3.Easy and quick refund
4.Full day customer service support
5.Guaranteed Fitment£ºAlways the correct part
SPECIFICATIONS:
Condition: Aftermarket 100% Brand New
Quanity: 1PC
Type: Generator Stator Coil

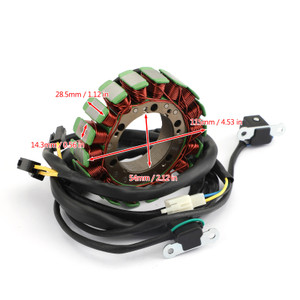

Dimensions :
Interior diameter : 54mm / 2.12 inches
Exterior diameter : 115mm / 4.53 inches
Pole's Thickness : 28.5mm / 1.12 inches
Pole's Width : 14.3mm / 0.56 inches
Other specifications :
Number of wires: 7
Number of pins: 7
Number of plugs: 4
Number of fixation holes: 6(+2)
Number of poles: 18
PART NUMBER(S):
32101-38A00
FITMENT:
Fits Suzuki Intruder 700 VS700GLEF GLE 1986-1987
Fits Suzuki Intruder 700 VS700GLEP GLE 1986-1987
Fits Suzuki Intruder 700 VS700GLF GL 1986-1987
Fits Suzuki Intruder 700 VS700GLP GL 1986-1987
(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitment)
PACKAGE INCLUDED:
1x Generator Stator Coil
NOTICE:
Before installing your new stator
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
