Feature:

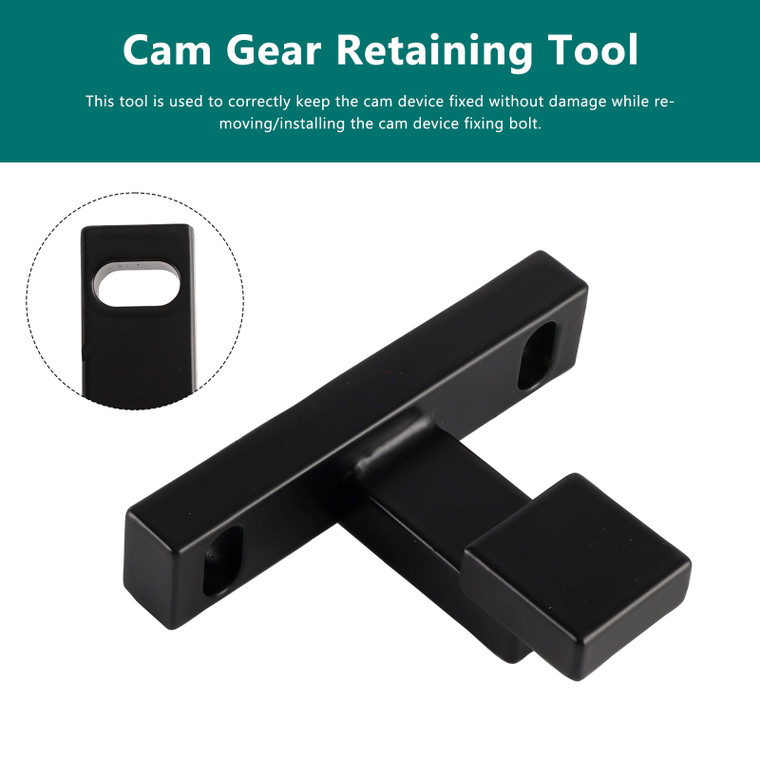

Powerful Function: This tool is used to correctly keep the cam device fixed without damage while removing/installing the cam device fixing bolt.
Upgrade Design: The tool is designed to be installed in the gearbox and mesh with a shock-absorbing hole in the camshaft drive gear.
Superior Material: Made of top strong iron which can withstand impact, and the surface is covered with a black coating to resist corrosion so that can ensure a longer service life.

Specifications:

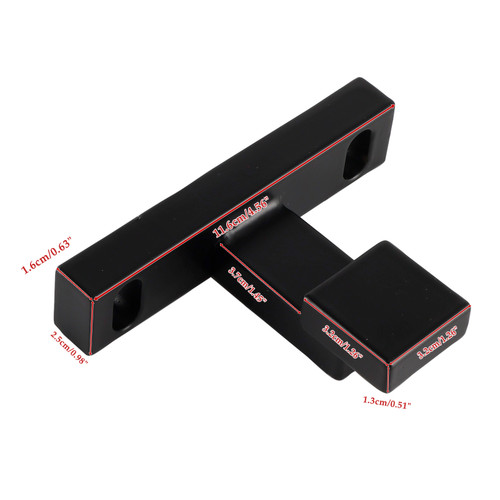

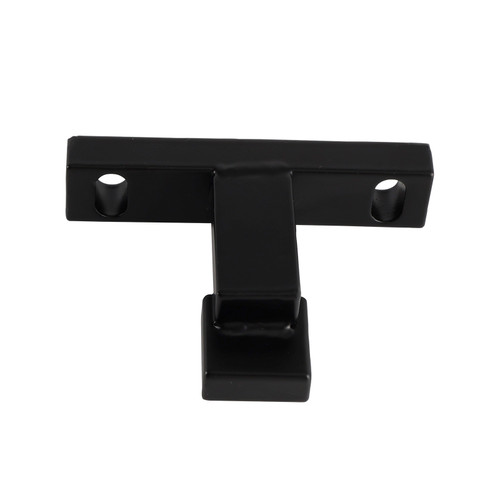

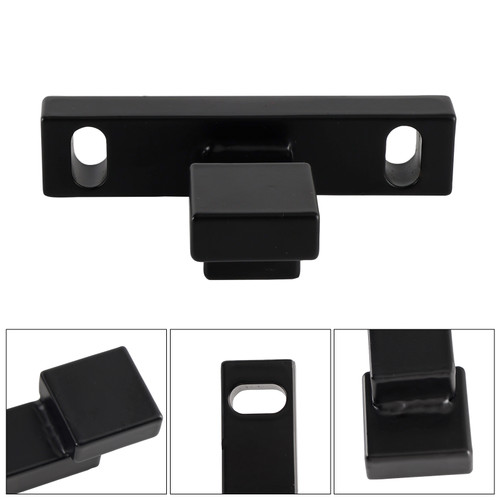

Product Name: Cam Gear Retaining Tool
Condition: Brand New
Warranty: 180 days
Fitment Type: Direct Replacement

Fitment:
For Detroit Diesel Series 60 engines.
Note: Alternatives to J-35652-A

Usage guidance:
1. Insert the shoe of the camshaft drive gear torque holding tool, J 35652-A part of J 35652 , through a lightening hole of the camshaft drive gear.
2. Using the 3/4 in. square hole in the center of the crankshaft pulley, bar the engine over slightly to position the camshaft drive gear holding tool so that the bolt holes in the holding tool align with the access cover bolt holes in the gear case cover.
3. Install the camshaft drive gear torque holding tool, J 35652-A part of J 35652 to the gear case, engaging one of the lightening holes in the camshaft drive gear. Use two of the access cover bolts to secure the tool to the gear case.

Package included:
1 X Cam Gear Retaining Tool (Same as pictures show !!!)

Note:
1. All dimensions are measured by hand, there may be small deviations.
2. Color may vary slightly due to the color setting of each individual monitor.
