Features:
Kit includes piston, rings, pin, clips & top end gasket kit (you get exactly what is pictured).
Cast piston has super-high silicone content for additional strength.
Piston skirts are Molybdenum Teflon coated to minimize resistance/wear and provide extended life.
Piston dome is anodized for superior heat resistance and longer lifespan.
The gaskets use performance materials to increase durability and provide greater reliability.
Includes all gaskets pictured to rebuild top end.
Kit is for big bore size - 102.00mm.
All of the components within this kit are bolt-on ready for a hassle free installation.
Specifications:
Condition: Aftermarket 100% Brand New
Quantity: 1 Set
Piston Material: Forged Aluminum
Surface Finish: Forged
Actual Displacement: 686cc
Bore Type: Big Bore
Bore Size: 102.00mm
Stroke: 84.00mm
Replaces Part Number:
Cylinder: 5KM-11310-00-00, 3YF-11310-01-00
Piston: 3YF-11631-00-X0
Cylinder Base Gasket: 3YF-11351-00-00
Cylinder Head Gasket: 3YF-11181-00-00
Ring Set: 2C6-11603-00-00
Pin, piston: 3YF-11633-01-00
Circlips, piston: 93450-24028
Fitments:
Fit for Yamaha Raptor 660R 2001-2005
Fit for Yamaha Grizzly 660 2002-2008
Fit for Yamaha Rhino 660 2004-2007
(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitment)
Package Includes:

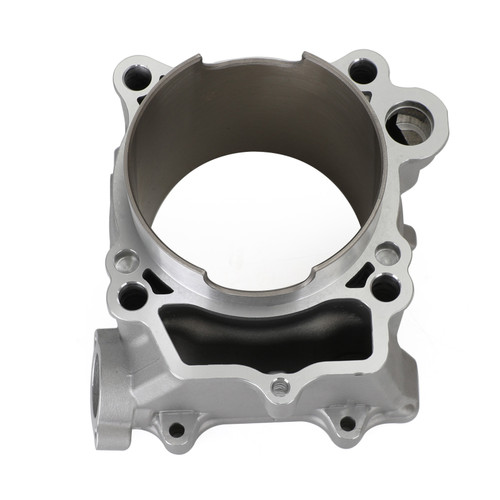

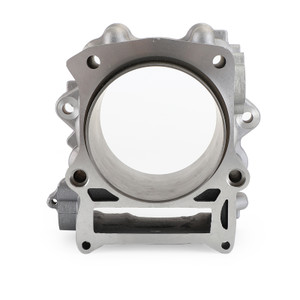

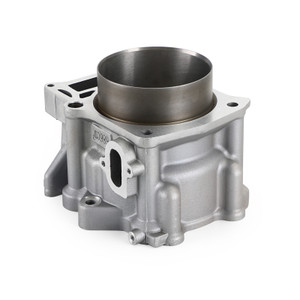

1x Cylinder (Big Bore)
1x Piston
1x Piston Ring Set
1x Wristpin
1x Circlip(2)
1x Cylinder Base Gasket
1x Cylinder Head Gasket
Note:
Ring end gaps are checked prior to shipment for proper sizing.
Please check out the product and size fits your motorcycle or not before you purchase.
Delivery:
Free Shipping
Delivery Time:3-7 Working Days
Warranty:
Warranty Period:1 Years
Return:Goods can be returned within 60 days of receipt
24-Hour Support:Customer service throughout the day
