DMX512 Wireless Receiver Transmitter 2.4G Stage Lighting Effects DMX Controllers
Please Note £º
This DMX512 all need to connect Power Adapter Plug to work , NOT Battery type !!!
US Plug

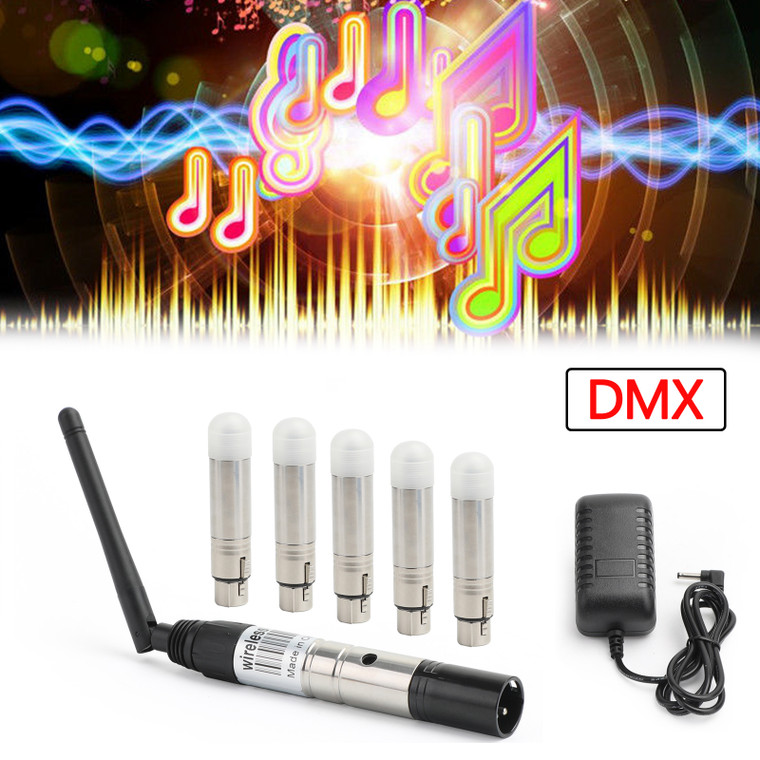

Package include:
5*Receiver
1*Transmitter
Feature:
1. No time delay during data transmission
2. 7 groups ID code settable
3. Portable and easy to handle
4. Economical
5. Small size: 13.5cm x 2cm x 2cm only
6. One transmitter can
Technical Parameters:
1. Tricolor LED displaying
2. 126 channels automatically jumping frequency, high anti-jamming ability to ensure working reliability. 3. 7 groups ID code settable, user can use 7 groups individual wireless system without any interference with each other in the same place.
4. Input voltage: 5VDC 500mA MIN
5. Communication distance: 500M
6. Work frequency section: 2.4GHz ISM band, 126 channels frequency section.
7. Max transmitting power rate: 23dBm
8. Receiver sensitive: -94dBm
9. Signal port:3 pin male plug (for transmitter) & female plug (for receiver)
Operating Manual:
ID code and LED color corresponding correlation:
1: RED
2: GREEN
3: RED+GREED = YELLOW
4: BLUE
5: RED+BLUE = PURPLE
6: GREEN+BLUE = CYAN
7: RED+GREED+BLUE = WHITE
Press key 1 time to indicate ID setting, press again to set ID, then ID value adding
Working Condition:
LED constant lit up: no DMX or wireless signal
Red LED flash: transmitting
Green LED flash: Receiving
RF frequency------2. 400-2. 525G, total 126 channels, it is searching automatically. ID Code------17 groups
ID code, press "Key" for setting, it only can works under same ID code of transmitter and receiver.
Establishing Communication:
1. Power on DMX512 wireless received board and transmitted board.
2. Press "Key" button to set same ID value of transmitted board and received board, please use different ID value if you need to use more than 1 group wireless system at the same time in the same place.
3. The red LED flashes when transmitter transmits DMX data by no interfered frequency section, then receiver changes communicated frequency section. Green LED flash till received corrected same ID value, LED flash more fast once DMX data more fast.
Please Note £º
This DMX512 all need to connect Power Adapter Plug to work , NOT Battery type !!!
US Plug
Package include:
5*Receiver
1*Transmitter
Feature:
1. No time delay during data transmission
2. 7 groups ID code settable
3. Portable and easy to handle
4. Economical
5. Small size: 13.5cm x 2cm x 2cm only
6. One transmitter can
Technical Parameters:
1. Tricolor LED displaying
2. 126 channels automatically jumping frequency, high anti-jamming ability to ensure working reliability. 3. 7 groups ID code settable, user can use 7 groups individual wireless system without any interference with each other in the same place.
4. Input voltage: 5VDC 500mA MIN
5. Communication distance: 500M
6. Work frequency section: 2.4GHz ISM band, 126 channels frequency section.
7. Max transmitting power rate: 23dBm
8. Receiver sensitive: -94dBm
9. Signal port:3 pin male plug (for transmitter) & female plug (for receiver)
Operating Manual:
ID code and LED color corresponding correlation:
1: RED
2: GREEN
3: RED+GREED = YELLOW
4: BLUE
5: RED+BLUE = PURPLE
6: GREEN+BLUE = CYAN
7: RED+GREED+BLUE = WHITE
Press key 1 time to indicate ID setting, press again to set ID, then ID value adding
Working Condition:
LED constant lit up: no DMX or wireless signal
Red LED flash: transmitting
Green LED flash: Receiving
RF frequency------2. 400-2. 525G, total 126 channels, it is searching automatically. ID Code------17 groups
ID code, press "Key" for setting, it only can works under same ID code of transmitter and receiver.
Establishing Communication:
1. Power on DMX512 wireless received board and transmitted board.
2. Press "Key" button to set same ID value of transmitted board and received board, please use different ID value if you need to use more than 1 group wireless system at the same time in the same place.
3. The red LED flashes when transmitter transmits DMX data by no interfered frequency section, then receiver changes communicated frequency section. Green LED flash till received corrected same ID value, LED flash more fast once DMX data more fast.
