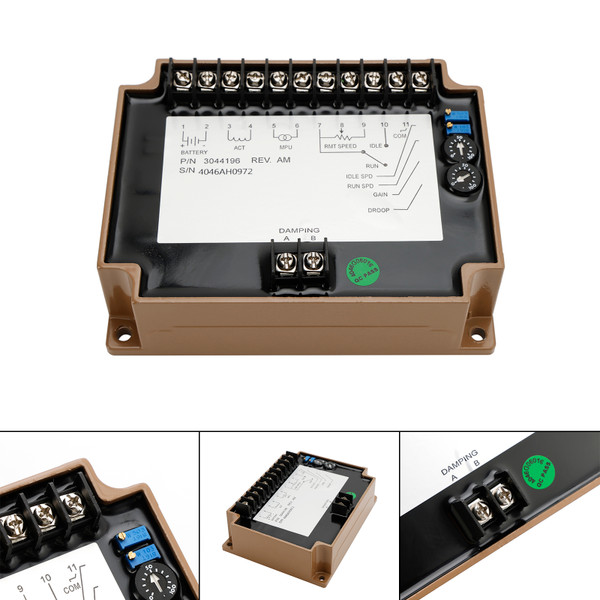

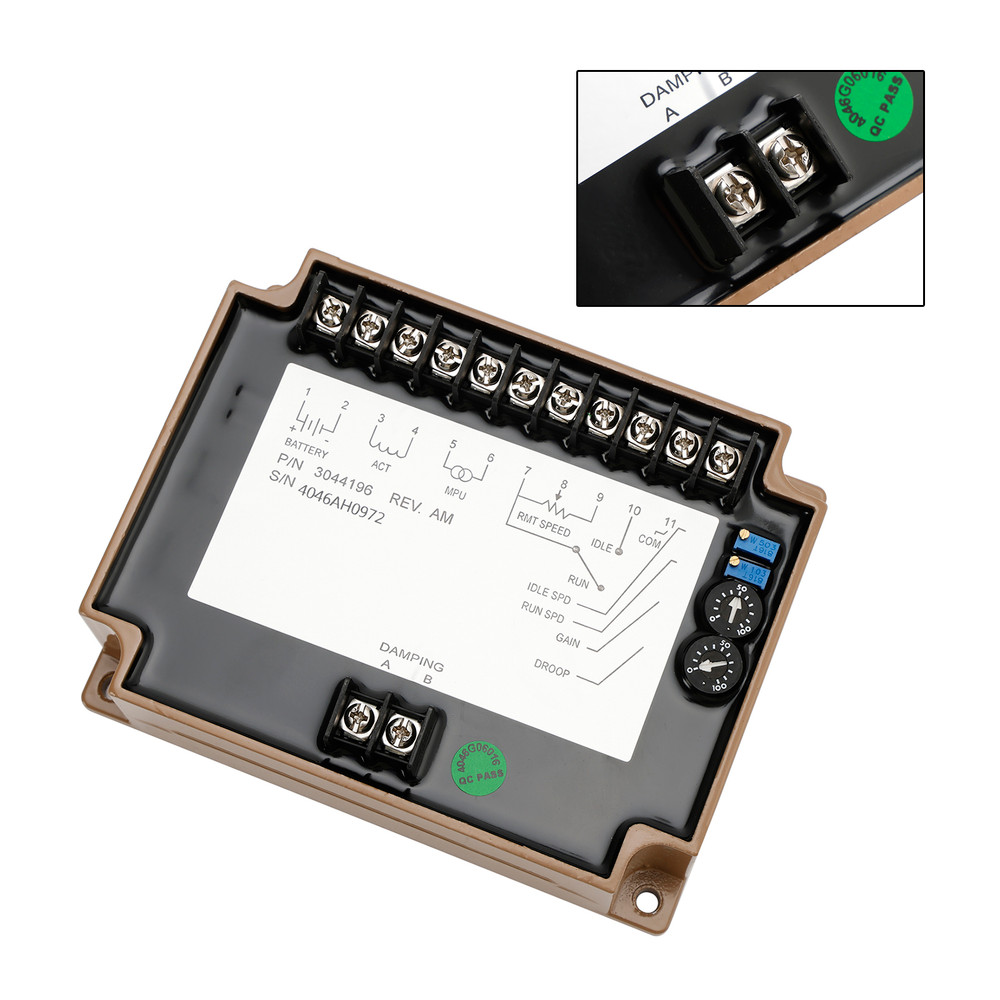

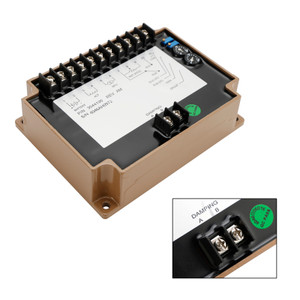

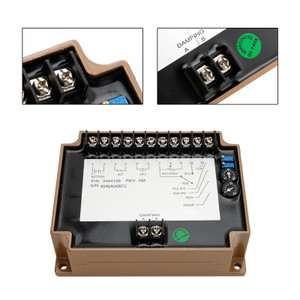

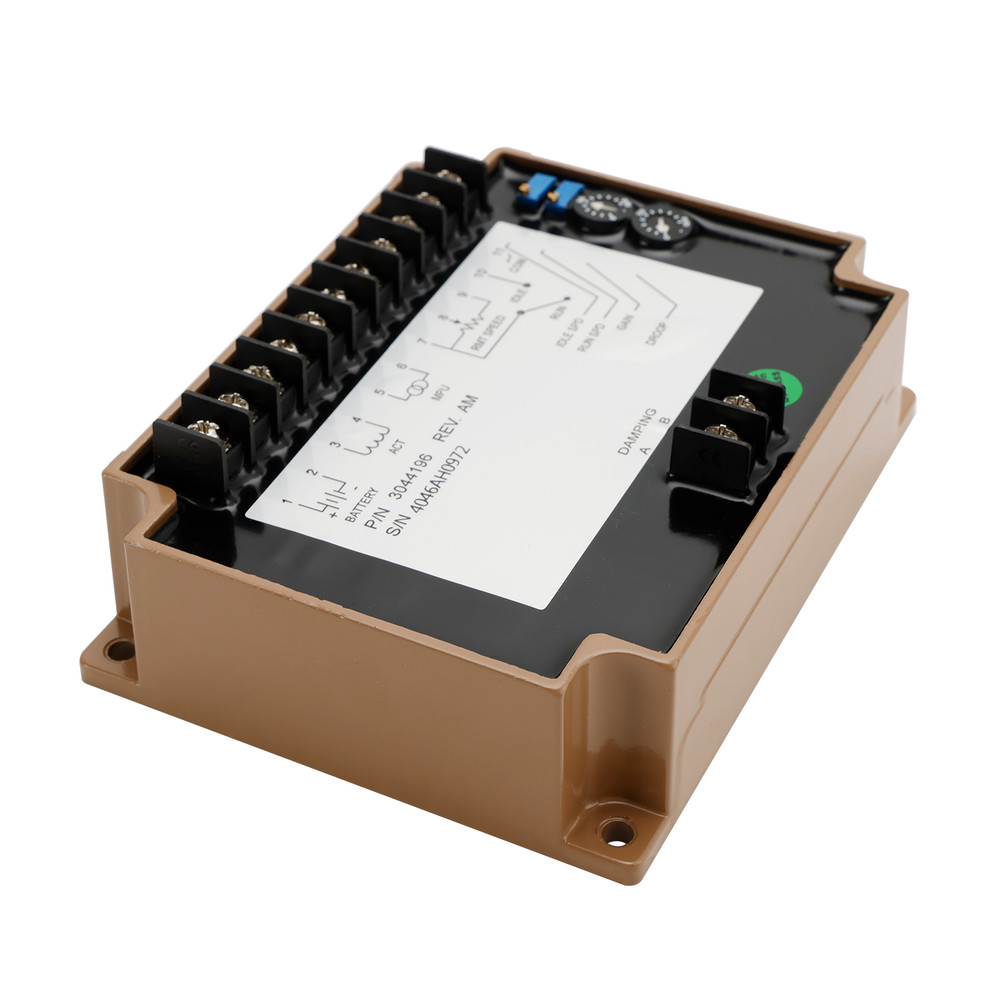

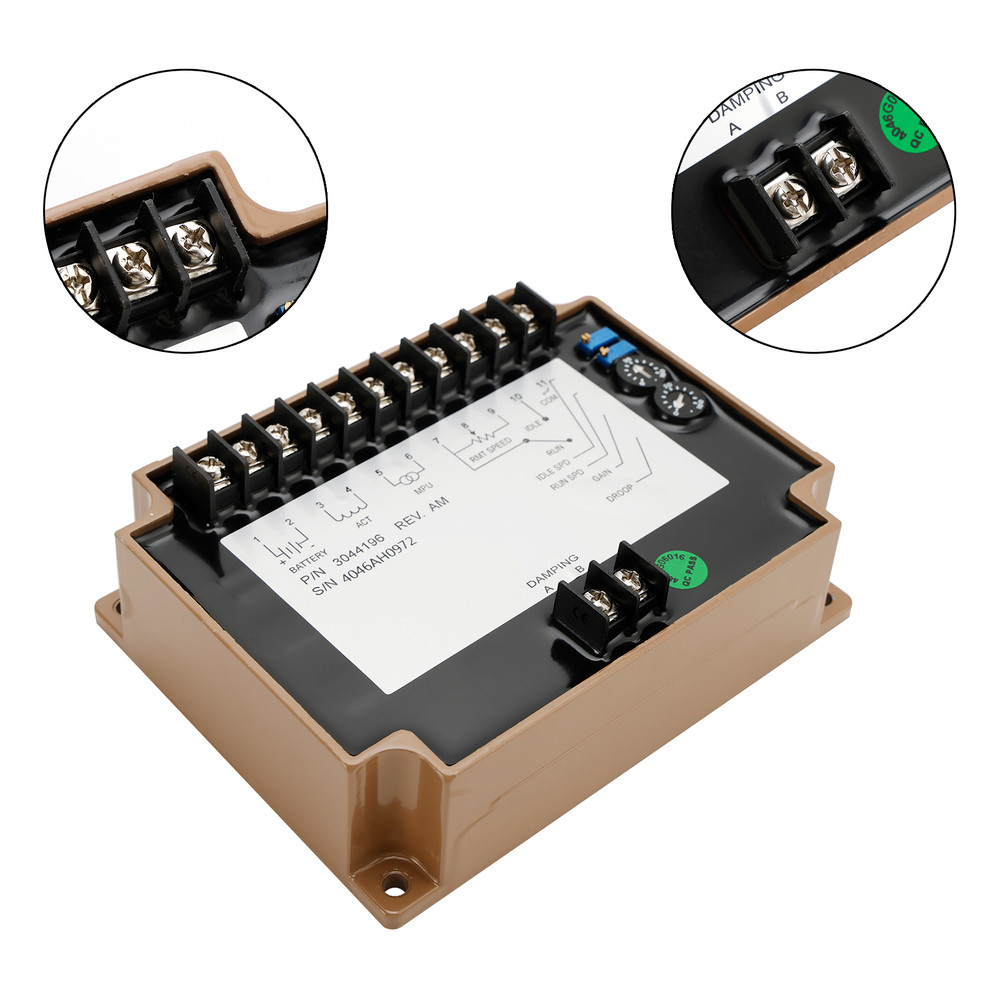

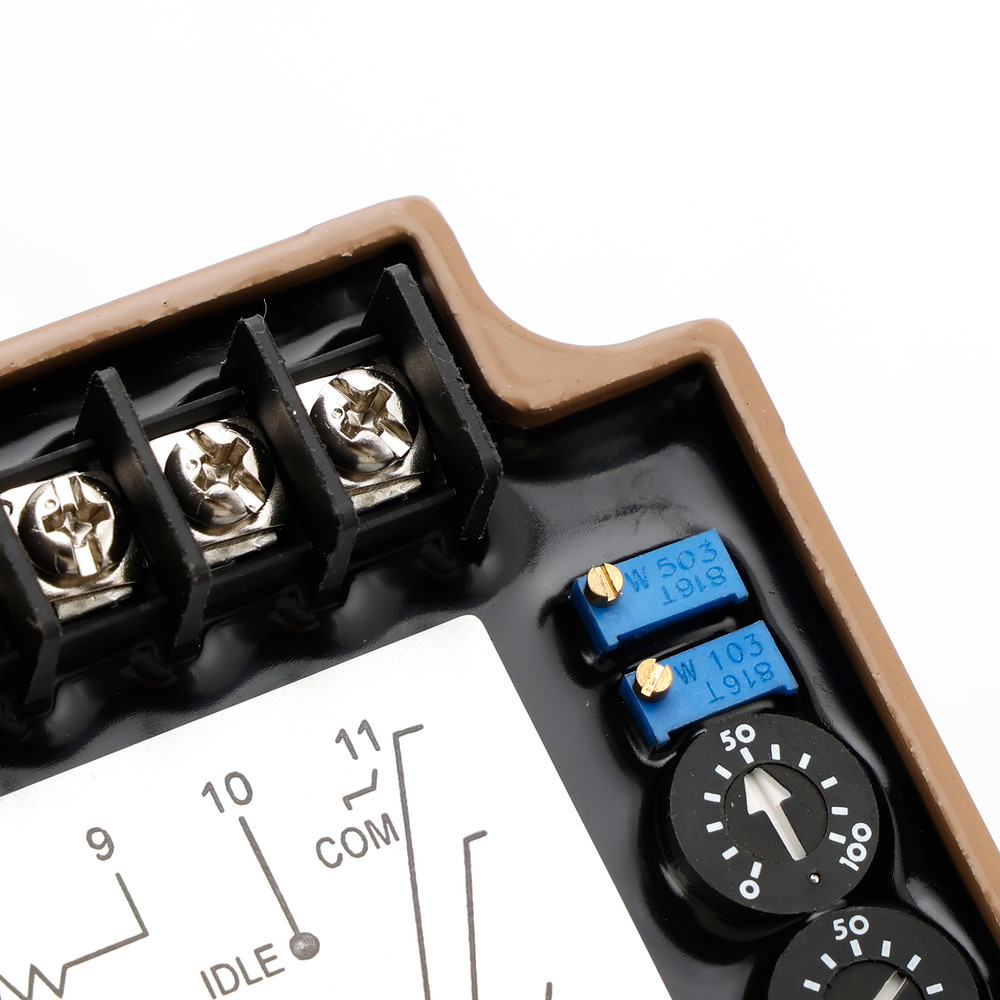

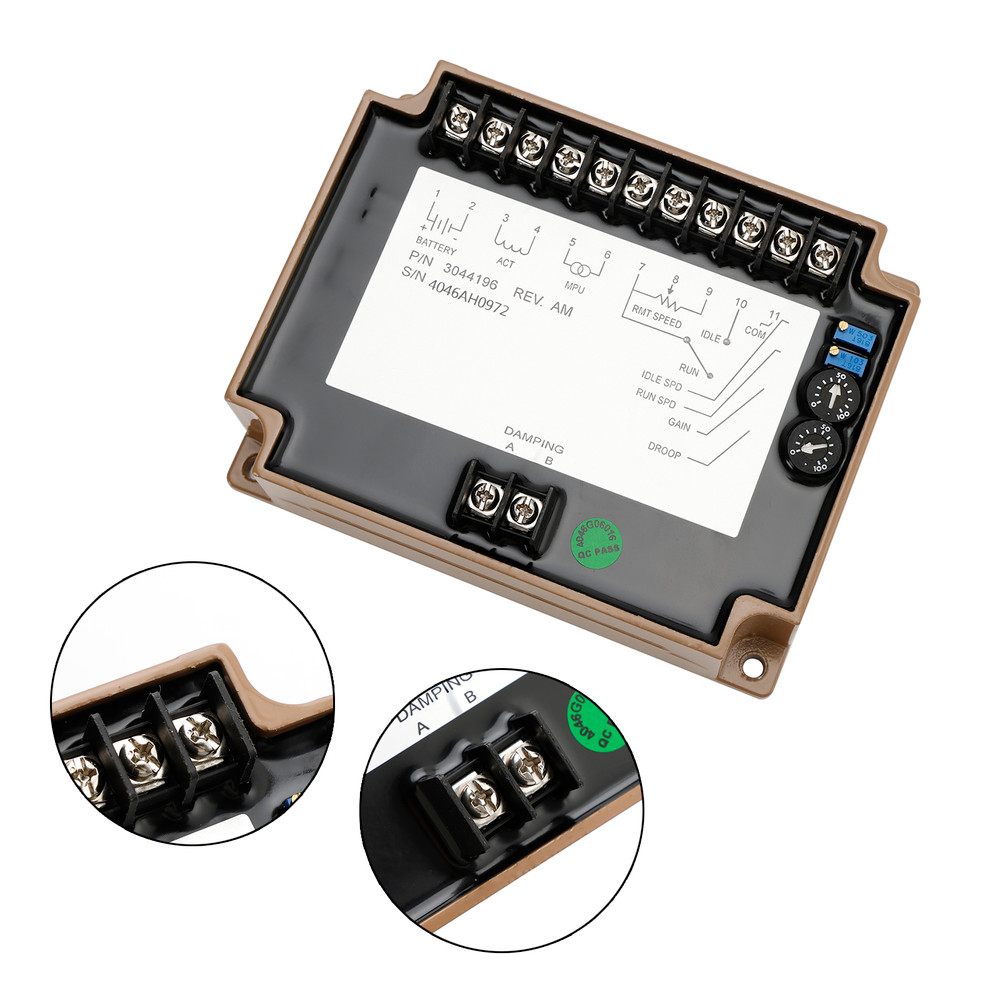

EFC3044196 Replacement For Cummins Electronic Speed Controller Governor
Feature:
1: Made of high quality material, durable and practical to use.
2: Full closed-loop control technology.
3: Fast and accurate response to control engine speed.
4: It is easy to install and can be pre-adjustments.
5: Perfectly controlled CUMMINS engine.
6: For input multiple machines or special purpose machines.
Specifics:
Condition: 100% Brand New
Model:3044196
RPM Stability: <¡À0. 25%
Speed Range: 1KHz ~ 6. 5KHz
Thermal Stability: Max ¡À0. 7%
IDLE Regulation: 260 ¡À20Hz
DROOP Regulation: Minimum 15Hz ¡À6Hz/ 1 Amp
Maximum: 400Hz ¡À75Hz/ 1 Amp
External Speed Regulation: ¡À200Hz (with 1 K¦¸ connected)
AUX Input Sensitivity: 148Hz / 1V. , ¡À10Hz
Impedance: 1M¦¸
Working Temp Range: -40 ~ 85 ¡ãC
Working Humidity Range: Maximum 95%
Stocking Temp: -55 ~ 92 ¡ãC
Shocking: 20-100HZ 500mm/Sec.
Voltage: 12V or 24V
Grounding Pole: Negative pole
Power Supply: 40mA
Actuator Continuous Current: Minimum 1A, Maximum 4. 5A
MPU:Signal: 2 ~ 120V RMS
Note:

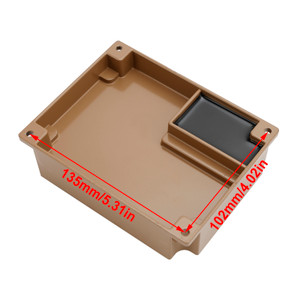

1.Please allow 1-3mm difference due to manual measurement.
2.Due to the light and screen difference, the item's color may be slightly different from the pictures.
Package Included:
1 X 3044196 Electronic Speed Controller Governor
Feature:
1: Made of high quality material, durable and practical to use.
2: Full closed-loop control technology.
3: Fast and accurate response to control engine speed.
4: It is easy to install and can be pre-adjustments.
5: Perfectly controlled CUMMINS engine.
6: For input multiple machines or special purpose machines.
Specifics:
Condition: 100% Brand New
Model:3044196
RPM Stability: <¡À0. 25%
Speed Range: 1KHz ~ 6. 5KHz
Thermal Stability: Max ¡À0. 7%
IDLE Regulation: 260 ¡À20Hz
DROOP Regulation: Minimum 15Hz ¡À6Hz/ 1 Amp
Maximum: 400Hz ¡À75Hz/ 1 Amp
External Speed Regulation: ¡À200Hz (with 1 K¦¸ connected)
AUX Input Sensitivity: 148Hz / 1V. , ¡À10Hz
Impedance: 1M¦¸
Working Temp Range: -40 ~ 85 ¡ãC
Working Humidity Range: Maximum 95%
Stocking Temp: -55 ~ 92 ¡ãC
Shocking: 20-100HZ 500mm/Sec.
Voltage: 12V or 24V
Grounding Pole: Negative pole
Power Supply: 40mA
Actuator Continuous Current: Minimum 1A, Maximum 4. 5A
MPU:Signal: 2 ~ 120V RMS
Note:
1.Please allow 1-3mm difference due to manual measurement.
2.Due to the light and screen difference, the item's color may be slightly different from the pictures.
Package Included:
1 X 3044196 Electronic Speed Controller Governor
