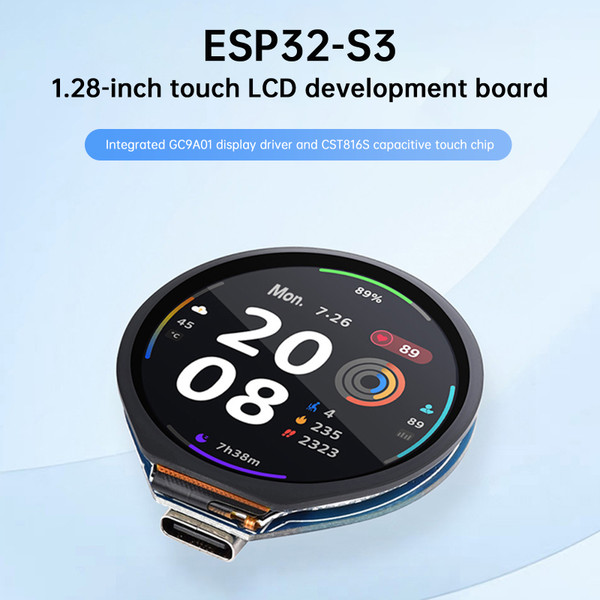

ESP32-S3 Development Board 1.28 inch Capacitive Touch Screen Circular LCD Screen Dual-Core Processor with Wifi Bluetooth
Description:

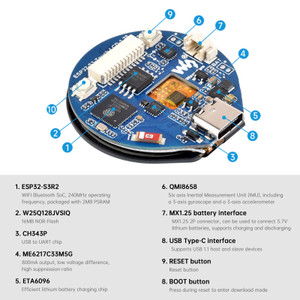

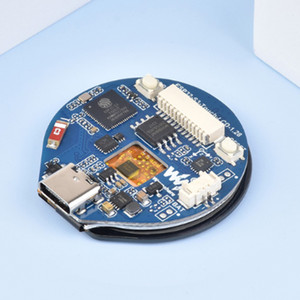

ESP32-S3-Touch-LCD-1.28-B is a cost-effective and powerful microcontroller development board designed by Waveshare. In a small form factor, it is equipped with a 1.28-inch capacitive touch LCD screen, a lithium battery charging chip, a six-axis sensor (three-axis accelerometer and three-axis gyroscope) and other peripherals, making it easy to develop and embed applications into products.
Features:
1.Equipped with a high-performance Xtensa° 32-bit LX7 dual-core processor with a main frequency of up to 240 MHz
2.Supports 2.4 GHz Wi-Fi (802.11 b/g/n) and Bluetooth5 (LE), with onboard antenna
3.Built-in 512KB SRAM and 384KB ROM, stacked with 2MB PSRAM and external 16MB Flash
4.Uses Type-C interface, no need to worry about whether to insert it in the right or wrong direction

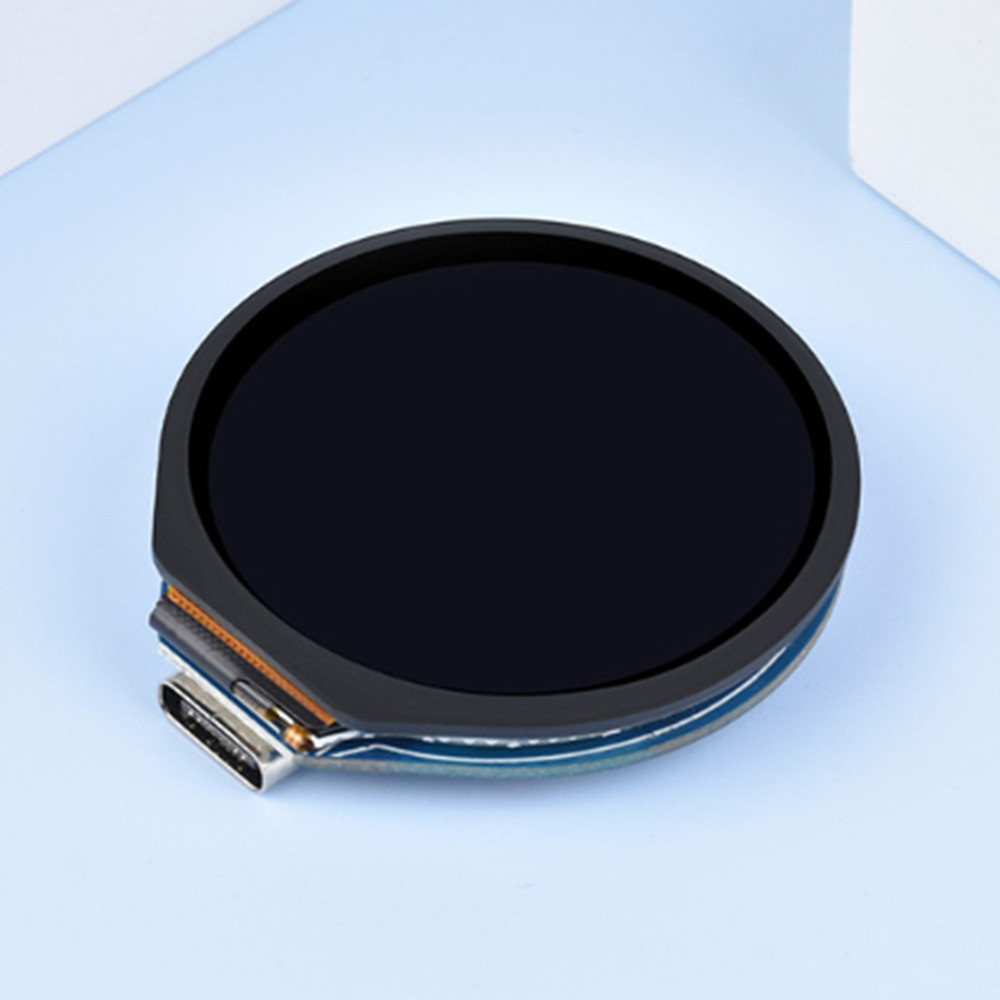

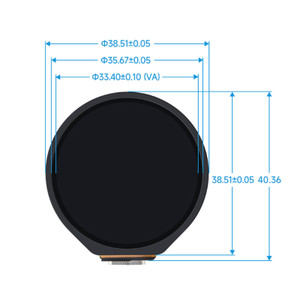

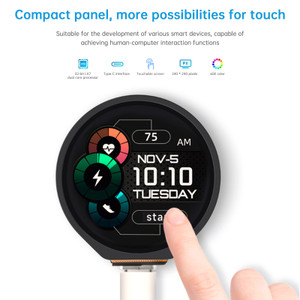

5.Onboard 1.28-inch capacitive touch LCD screen, 240x240 resolution, 65K color
6.The upper shell is made of CNC metal material, and the back is equipped with an acrylic matte base
7.Onboard QMI8658 six-axis inertial measurement unit (3-axis acceleration, 3-axis gyroscope), which can detect motion posture
8.Onboard 3.7V MX1.25 lithium battery charging and discharging interface

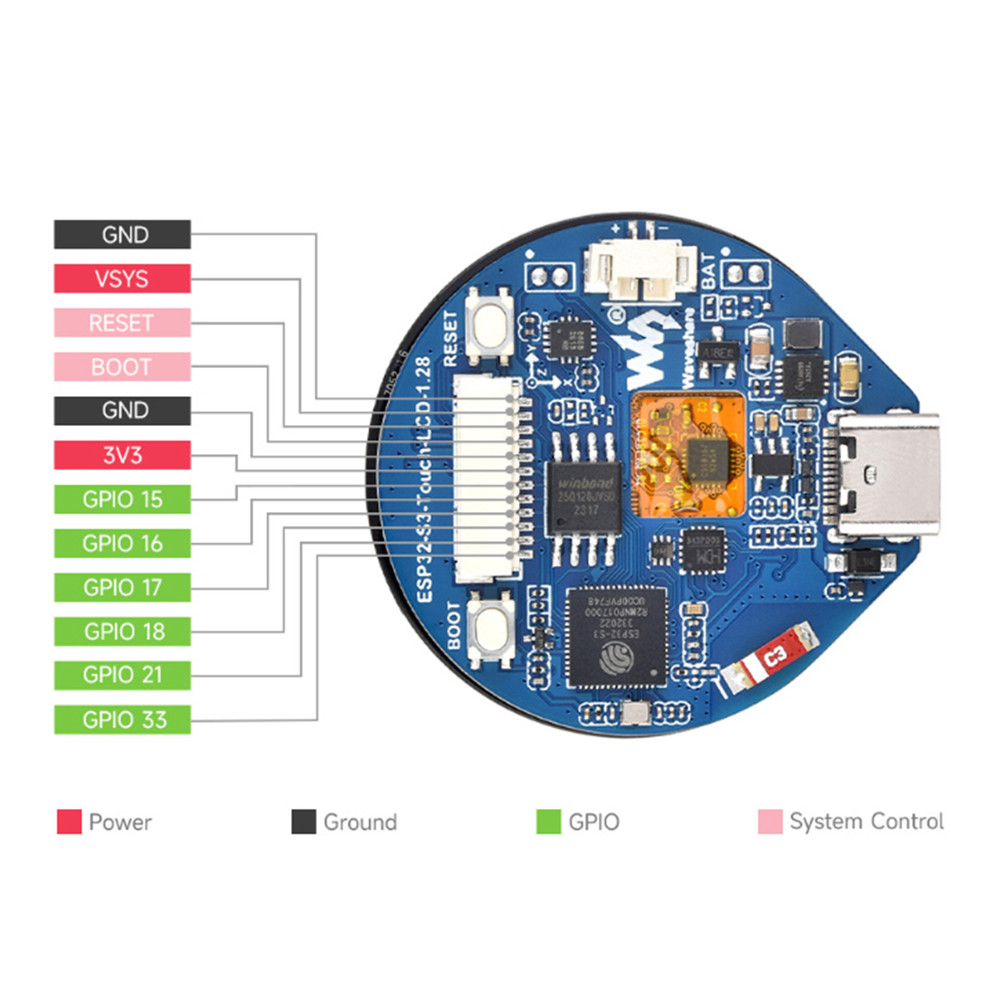

9.Lead out 6 GPIO SH1.0 Connector
10.Supports flexible clock, module power individual setting and other precise control, realizing multi-scenario low power consumption mode
11.Integrated USB serial port full-speed controller, GPIO can flexibly configure peripheral functions
Package Include:
1x 1.28 inch capacitive touch screen [with metal case]
