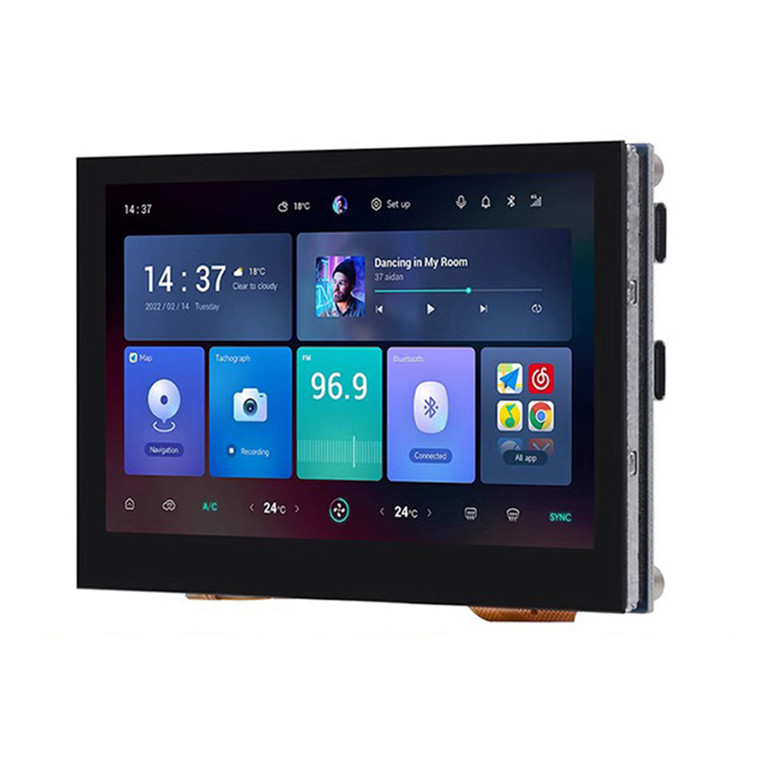

ESP32-S3 Development Board 4.3-inch Capacitive Touch Screen LX7 Dual-Core Processor Display Supports Wifi Bluetooth
Features:
ESP32-S3-Touch-LCD-4.3 is a microcontroller development board supporting 2.4GHz WiFi and BLE 5. Integrated large-capacity Flash and PSRAM, with an onboard 4.3-inch capacitive touch screen, can smoothly run GUI interface programs such as LVGL; combined with a variety of peripheral interfaces, it can quickly develop HMI and other applications of ESP32-S3.
1.Equipped with high-performance Xtensa 32-bit LX7 dual-core processor, clocked at up to 240MHz.
2.Supports 2.4 GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), onboard antenna.
3.Built-in 512KB SRAM and 384KB ROM, stacked 8MB Flash and 8MB PSRAM.
4.Onboard 4.3-inch capacitive touch screen, 800x480 resolution, 65K color.
5.Supports I2C interface to control capacitive touch, 5-point touch, supports interrupts.
6.Onboard CAN, RS485, I2C interfaces and Micro SD card holder, etc., integrated full-speed USB serial port.
7.Supports flexible clock, independent module power setting and other precise control to achieve multi-scenario low power consumption mode.
Application:
HMI human machine interface
Human-computer interface (also known as user interface or user interface)
It is a medium for interaction and information exchange between the system and the user. It realizes the conversion between the internal form of information and the form acceptable to humans.
LVGL GUI development
LVGL is a free and open source graphics library that provides everything you need to create embedded GUIs with easy-to-use graphical elements, beautiful visual effects, and a low memory footprint.
Package Included:
1x ESP32-S3-Touch-LCD-4.3
1x HY2.0 2P to Dupont male 2P 10cm
1x HY2.0 2P to Dupont male 3P 10cm
1x HY2.0 2P to Dupont male 4P 10cm
1x Copper Pillar Package
