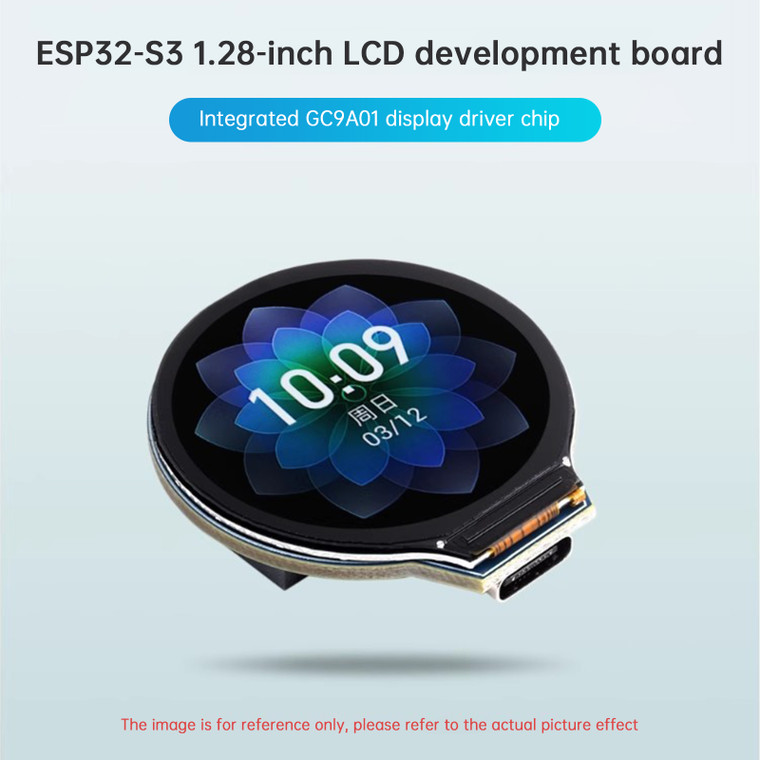

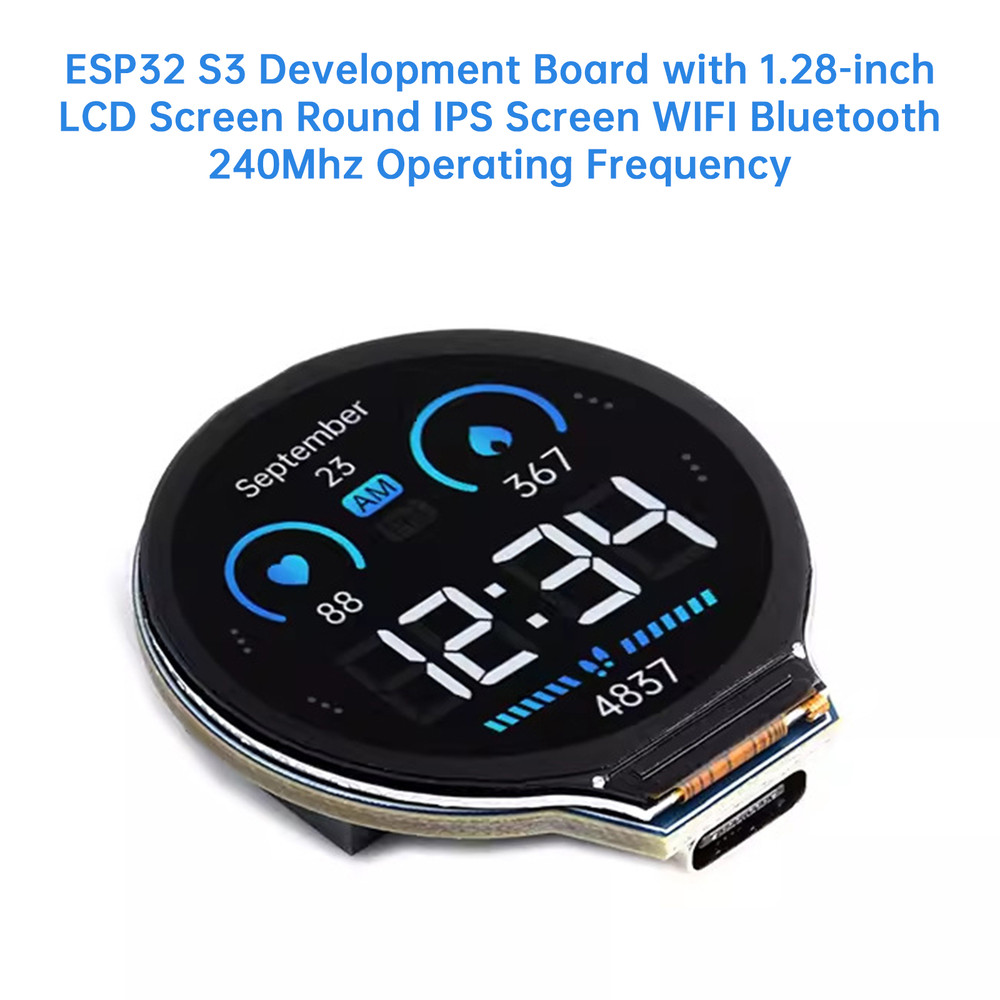

ESP32 S3 Development Board with 1.28-inch LCD Screen Round IPS Screen WIFI Bluetooth 240Mhz Operating Frequency
Description:

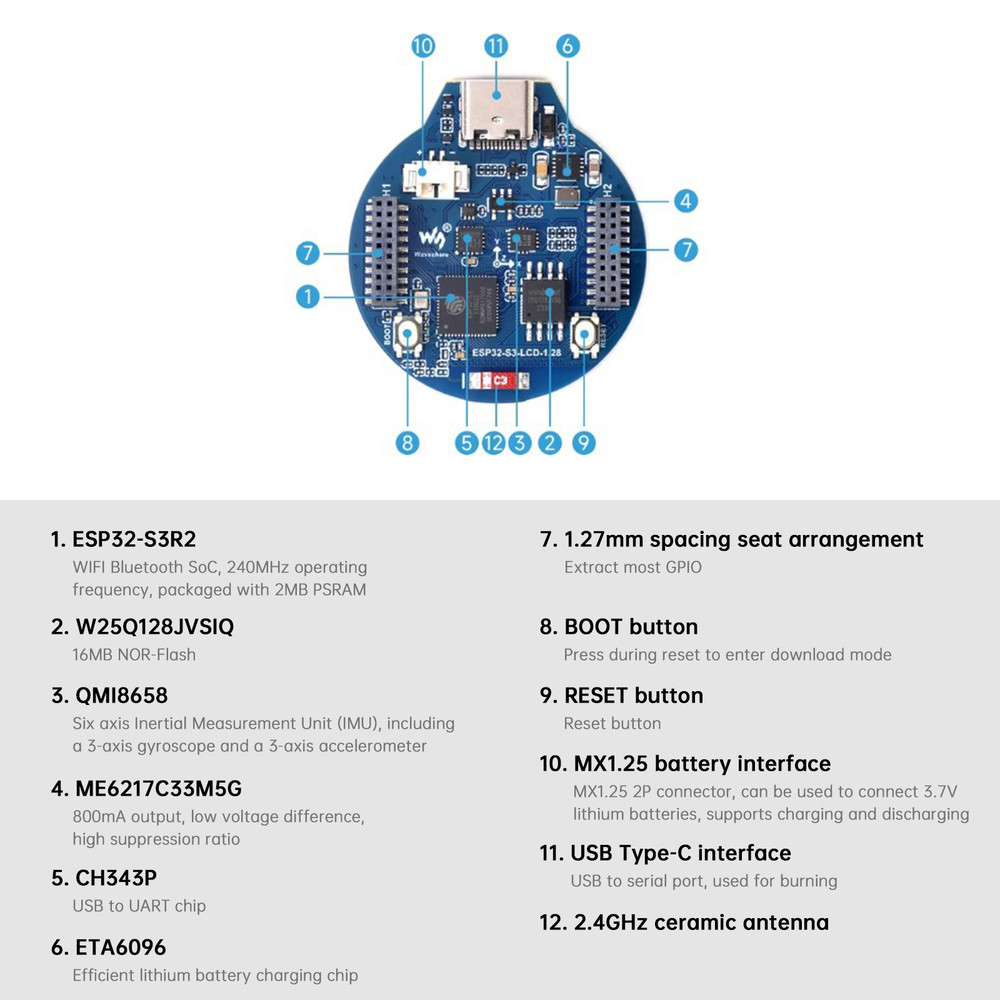

ESP32-S3-LCD-1.28 is a low-cost, high-performance microcontroller development board designed by Waveshare. In a small form factor, it has a 1.28-inch LCD screen, a lithium battery charging chip, a six-axis sensor (three-axis accelerometer and three-axis gyroscope) and other peripherals, making it easy to develop and embed applications into products.
Features:
Equipped with a high-performance Xtensa® 32-bit LX7 dual-core processor with a main frequency of up to 240 MHzSupports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth® 5 (LE), onboard antennaBuilt-in 512KB SRAM and 384KB ROM, stacked 2MB PSRAM and external 16MB Flash
Uses Type-C interface to keep up with the trend of the times, no need to worry about whether to plug it in the right or wrong direction
Onboard 1.28-inch LCD screen, circular IPS panel, 240x240 resolution, 65K colorOnboard QMI8658 six-axis inertial measurement unit (3-axis acceleration, 3-axis gyroscope), can detect motion posture
Onboard 3.7V lithium battery charging and discharging interface and lead out most of the GPIO row
Supports flexible clock, module power separate setting and other precise control, to achieve multi-scenario low-power mode·Integrated USB serial port full-speed controller, GPIO can flexibly configure various peripheral functions
Package Include:

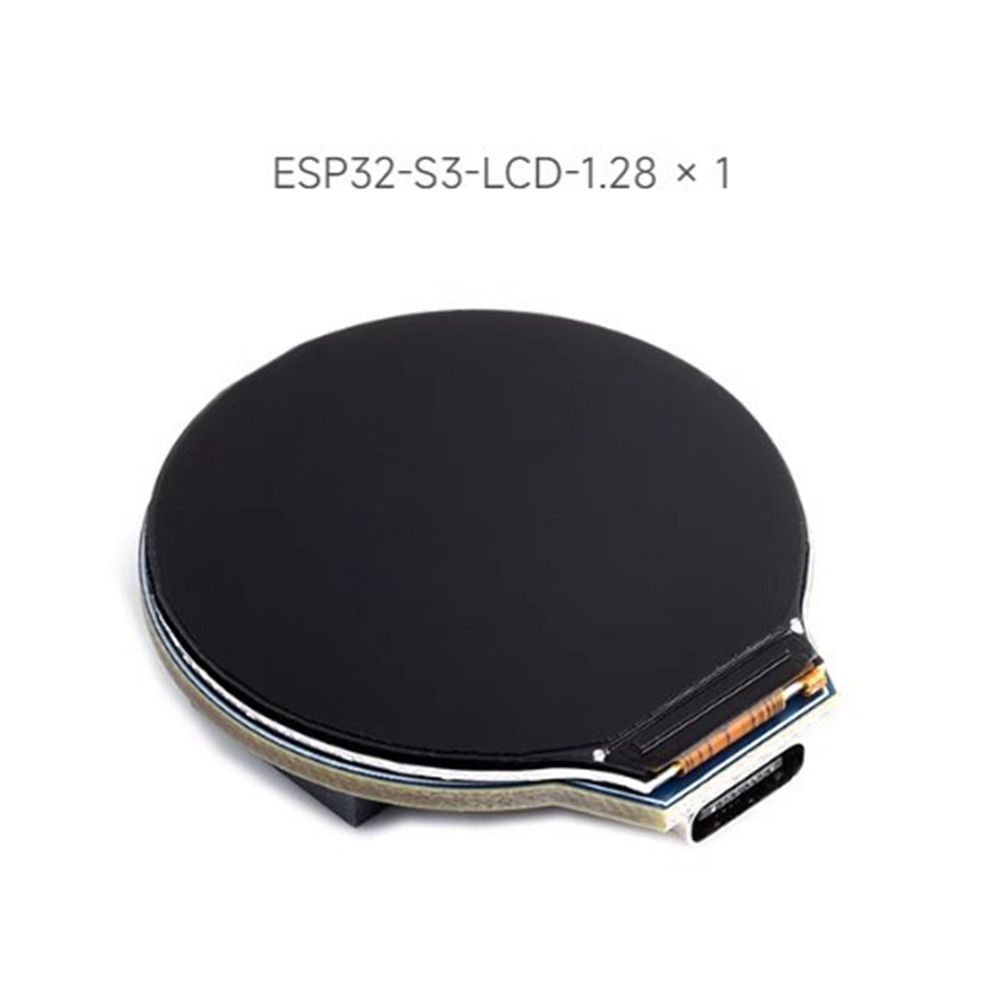

1x 1.28-inch screen [with metal casing]
Description:
ESP32-S3-LCD-1.28 is a low-cost, high-performance microcontroller development board designed by Waveshare. In a small form factor, it has a 1.28-inch LCD screen, a lithium battery charging chip, a six-axis sensor (three-axis accelerometer and three-axis gyroscope) and other peripherals, making it easy to develop and embed applications into products.
Features:
Equipped with a high-performance Xtensa® 32-bit LX7 dual-core processor with a main frequency of up to 240 MHzSupports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth® 5 (LE), onboard antennaBuilt-in 512KB SRAM and 384KB ROM, stacked 2MB PSRAM and external 16MB Flash
Uses Type-C interface to keep up with the trend of the times, no need to worry about whether to plug it in the right or wrong direction
Onboard 1.28-inch LCD screen, circular IPS panel, 240x240 resolution, 65K colorOnboard QMI8658 six-axis inertial measurement unit (3-axis acceleration, 3-axis gyroscope), can detect motion posture
Onboard 3.7V lithium battery charging and discharging interface and lead out most of the GPIO row
Supports flexible clock, module power separate setting and other precise control, to achieve multi-scenario low-power mode·Integrated USB serial port full-speed controller, GPIO can flexibly configure various peripheral functions
Package Include:
1x 1.28-inch screen [with metal casing]
