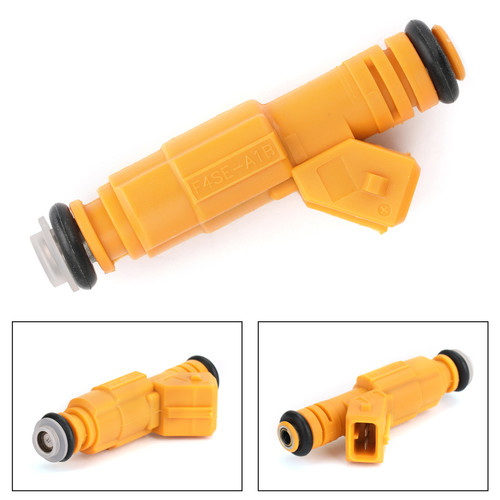

NEW 1PCS 36lb Fuel Injectors For Ford Mustang Pontiac Camaro GM V8 LS1 LT1 5.0L 5.7L 380cc 0280155737 0280155811
Features:
Condition: 100% NEW
Design: GEN III EV1 Style Fuel Injector
O-Rings Included: Yes, preinstalled
Injector Design: Metal & composite plastic
Orifice Type: 4 holes Disc
Filter Design: Basket filter design at inlet
Spray Pattern: 15 Degree Spray Cone
Specifications:
Condition: Brand New
Warranty: 3 Years
Placement on Vehicle: Front, Rear
Manufacture Part Number: 0280155737 0280155811
Interchange Part Number: 0280155868
Other Part Number: 832-11163 FJ250
Coil Resistance: Approx.12 Ohms / High Impedance
Static Flow Rate: 36 lb/hr = 380 cc/min @ 43.5PSI ( 300kPa )
Gain: 0.12ms/MG
Offset: 0.055ms
Turn on time @ 14VDC: 1.14ms
Turn off time: 0.85ms @ 300KPa
Amperage: 1.0 Amps
Pressure: Min 30PSIG/ Max 100PSIG
Accuracy:2.5%
Length: 3" (74mm)
Diameter: 16mm
O-Ring Diameter: 14.5mm
Fitment:
For exact years and models, please check compatibilities.
For Chevy Corvette and Camaro V8's
For Pontiac Firebird and TransAm V8's
For 1986-1995 Ford Mustang GT, LX and Cobra 5.0L
For 1996-2004 Ford Mustang GT
The following models must change injector plugs
For 1999/2001 Ford Mustang Cobra
For 2003-2004 Ford Mustang Cobra
For 2005-2012 Ford Mustang V8
Package included:
1 * Fuel Injector
