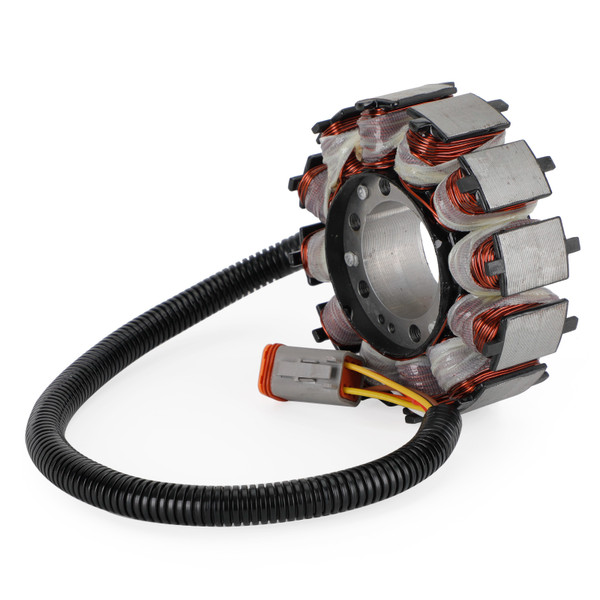

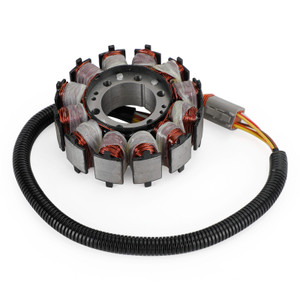

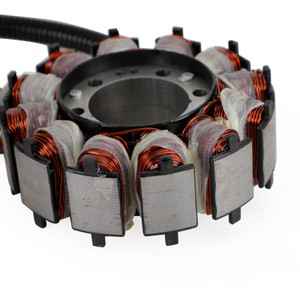

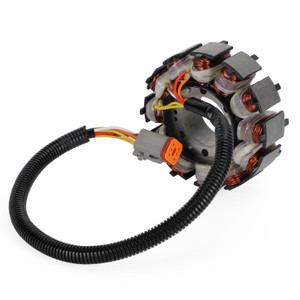

Generator Stator Fits Ski-Doo Sleds 420665431 420665432 420665433 & 420665435 Generic

Generator Stator Fit for Ski Doo GSX MXZ Summit Skandic Renegade 600 800 HO 2009-2015

Features:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.
Highest grade copper windings, resistant to 200 degrees Celsius.
Connector included.
All products shipped are tested.

Specifications:
Condition: Aftermarket 100% Brand New
Quanity: 1PC
Type: Generator Stator Coil

Replacement Part Number:
420665431
420665432
420665433
420665435

Fitments:
Fit for Ski Doo GSX 600HO LE 2013-2015
Fit for Ski Doo GSX 600HO SE 2013-2015
Fit for Ski Doo GSX 600HO LTD 2009
Fit for Ski Doo GSX 800R SE 2012-2015
Fit for Ski Doo GTX 600HO SE 2012
Fit for Ski Doo GTX 600HO LE 2009-2012
Fit for Ski Doo MXZ 600HO X 2009-2018
Fit for Ski Doo MXZ 600HO XRS 2010-2018
Fit for Ski Doo MXZ 600HO TNT 2009-2018
Fit for Ski Doo MXZ 600HO Adrenaline 2009-2010
Fit for Ski Doo MXZ 600HO Renegade 2009
Fit for Ski Doo MXZ 600HO Renegade X 2009
Fit for Ski Doo MXZ 800R X 2010-2017
Fit for Ski Doo MXZ 800R TNT 2011-2017
Fit for Ski Doo MXZ 800R XRS 2011-2017
Fit for Ski Doo Summit 600HO Everest 2009-2011
Fit for Ski Doo Summit 600HO X 2009-2011
Fit for Ski Doo Summit 800R X 2011-2012
Fit for Ski Doo Summit 800R Everest 2011
Fit for Ski Doo Summit 800R Freeride 2011
Fit for Ski Doo Skandic 600HO 2012-2020
Fit for Ski Doo Skandic 600HO WT 2012-2015
Fit for Ski Doo Skandic 600HO SP 2012-2015
Fit for Ski Doo Skandic 600HO Tundra Xtreme 2012
Fit for Ski Doo Skandic 800R SP 2013-2015
Fit for Ski Doo Skandic 800R X 2013-2015
Fit for Ski Doo Grand Touring 600HO LE 2010-2018
Fit for Ski Doo Renegade 600HO X 2010-2018
Fit for Ski Doo Renegade 600HO Adrenaline 2010-2015
Fit for Ski Doo Renegade 600HO Backcountry 2010-2015
Fit for Ski Doo Renegade 600HO Backcountry X 2011-2015
Fit for Ski Doo Renegade 800R Adrenaline 2011-2015
Fit for Ski Doo Renegade 800R Backcountry 2011-2015
Fit for Ski Doo Renegade 800R X 2015 -2018
Fit for Ski Doo Renegade 800R XRS 2015
Fit for Ski Doo Expedition 600HO LE 2011-2019
Fit for Ski Doo Expedition 600HO SE 2011-2019
Fit for Ski Doo Freeride 800R 2012-2017
Fit for Ski Doo Tundra Xtreme 600HO 2013-2020

(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitments)

Package Included:
1x Generator Stator Coil

NOTICE:
Before installing your new stator

Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
