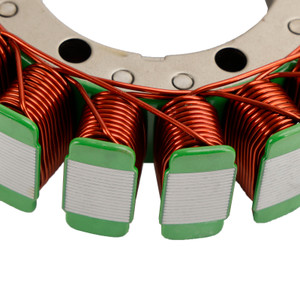

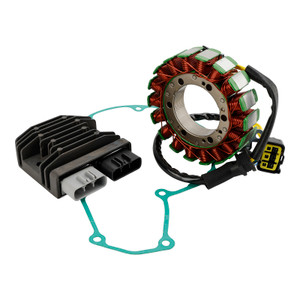

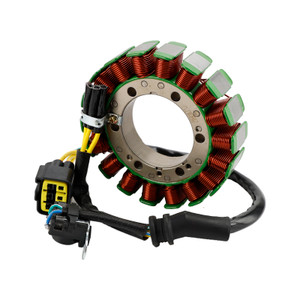

Magneto Coil Stator + Voltage Regulator + Gasket Assy For Honda Rincon TRX680 TRX 680 FA 2015-2023
Features:
Kit include Stator, Regulator Rectifier and gasket.
Meet or exceeds the OEM quality, direct replacement to your original unit.
Perfect fit and ready to install.
Always use a sealant to mount the cable gland joint.
Instruction is NOT included.
ATTENTION:
One of the most common reasons a stator breaks down is due to a broken regulator, which burns the stator in no time.
Therefore we highly recommend you to switch both parts.
Technically modified stators are excluded from exchange.
This regulator is not suitable for lithium-ion batteries! The battery or other electric parts can be damaged!
Specifications:
Condition: Aftermarket 100% Brand New
Type: Stator and Regulator Kit
Replacement Part Number:
Stator Assy: 31120-HN8-F41
Rectifier, regulator: 31600-MGZ-J01, 31600-HR0-F01
Gasket, generator cover: 11396-HN8-A60
Fits Make/Year/Model:
Fit for Honda ATV - 2015 TRX680FA 2AC- FOURTRAX RINCON
Fit for Honda ATV - 2015 TRX680FA AC - FOURTRAX RINCON
Fit for Honda ATV - 2016 TRX680FA 2AC- FOURTRAX RINCON
Fit for Honda ATV - 2016 TRX680FA AC - FOURTRAX RINCON
Fit for Honda ATV - 2017 TRX680FA 2AC- FOURTRAX RINCON
Fit for Honda ATV - 2017 TRX680FA 3AC - FOURTRAX RINCON
Fit for Honda ATV - 2017 TRX680FA AC - FOURTRAX RINCON
Fit for Honda ATV - 2018 TRX680FA 2A - FOURTRAX RINCON
Fit for Honda ATV - 2018 TRX680FA 2AC- FOURTRAX RINCON
Fit for Honda ATV - 2018 TRX680FA A - FOURTRAX RINCON
Fit for Honda ATV - 2018 TRX680FA AC - FOURTRAX RINCON
Fit for Honda ATV - 2019 TRX680FA5 2AC - FOURTRAX RINCON
Fit for Honda ATV - 2019 TRX680FA5 AC - FOURTRAX RINCON
Fit for Honda ATV - 2020 TRX680FA5 2AC - FOURTRAX RINCON
Fit for Honda ATV - 2020 TRX680FA5 AC - FOURTRAX RINCON
Fit for Honda ATV - 2021 TRX680FA5 - FOURTRAX RINCON
Fit for Honda ATV - 2022 TRX680FA5 2A
Fit for Honda ATV - 2022 TRX680FA5 A
Fit for Honda ATV - 2023 TRX680FA5
Fit for Honda ATV - 2024 TRX700FA5 7A
Fit for Honda ATV - 2024 TRX700FA5 A
(Compatibility Chart is for reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitment)
Package Includes:
1 x Stator Coil
1 x Regulator Rectifier
1 x Generator Gasket
(Comes exactly as pictured.)
Note:
Before installing your new stator regulator rectifier;
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors.
Our stator / regulator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.
You will get exactly what you see in pictures, if in doubt do not hesitate to compare our item to your original part.
The product on offer is an accessory or spare part and thus is not an original product of the vehicle manufacturer.
The name of the vehicle manufacturer is stated only as an indication of the determination of the product being offered as an accessory or spare part, to clarify, for which vehicle the product on offer fits.
