10kHz-180MHz Full-Band Coverage Ring Donut Antenna Support Shortwave/Medium Wave Black

$12.78
SKU: I018-A075-BLK
Adding to cart… The item has been added

California Prop65 WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

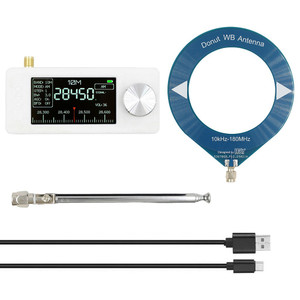

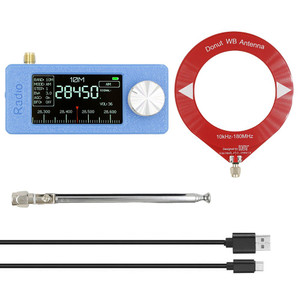

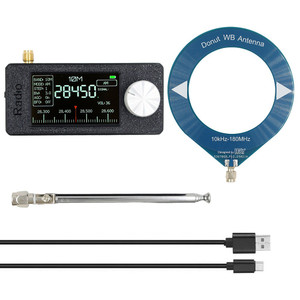

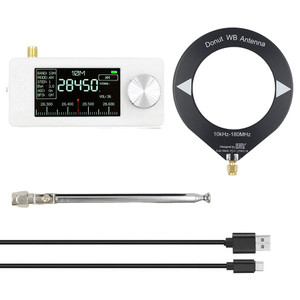

10kHz-180MHz Full-Band Coverage Ring Donut Antenna Support Shortwave/Medium Wave Black

10kHz-180MHz Full-Band Coverage Ring Donut Antenna Support Shortwave/Medium Wave Black

$12.78
SI4732 0.5-108mhz Portable Radio LSB USB AM FM Pocket Mini Radio 1.9inch IPS Screen All Band Radio Receiver with 2pcs Antenna HF SW MW VHF Radio

SI4732 Portable Radio:
Feature:
1. Advanced Technology: The portable radio is powered by the ESP32-S3 main control unit and features a 1.9-inch HD IPS color display, delivering clear and vibrant display quality for an enhanced user experience.
2. Comprehensive Band Support: Equipped with the SI4732 DSP chip, the Pocket Mini Radio supports all broadcast bands, including LSB, USB, AM, and FM modes, ensuring you'll never miss your favorite stations.
3. Long Battery Life: With a built-in 800mAh battery, the FM/AM radio offers over 10 hours of continuous playback, perfect for long trips or extended listening sessions without frequent recharging.
4. Enhanced Reception: The all-band radio receiver comes with a portable loop antenna that covers 9.9 kHz to 108 MHz, providing excellent reception and allowing you to enjoy a wide range of frequencies.
5. 3D-Printed Housing: The HF/SW/MW/VHF radio features a robust 3D-printed PETG housing, ensuring durability and a lightweight design, making it an ideal choice for indoor and outdoor use.

Specification:
Type: SI4732 Portable Radio
Main Controller: ESP-32-S3
Receiving Frequency Band: HF/SW/MW/VHF
Screen: 1.9 inches, 170*320
Charging Interface: TYPE-C (fast charging not available)
Audio Interface: 3.5mm Tri-band Stereo
Battery Capacity: 800mA
Color: Black/Blue/White
Range: FM/AM/LSB/USB
1. FM: 64MHz-108MHz
2. AM: 520kHz-1710kHz
3. SW: 2.3MHz-26.1MHz
4. LW: 153kHz-279kHz

Ring Donut Antenna:
Features:
1. Full-band signal capture
Covering the ultra-wide frequency band of 10kHz-180MHz, the antenna direction can be rotated to adjust, easily capture the best receiving angle, and enhance signal stability.
2. Ready-to-use and super convenient
No complex debugging design, quick installation of the ring structure, and easy operation for novices.
3. Palm-sized and ultra-portable
110mm mini size (about the size of a smartphone), 19g light weight, folding and storage does not take up space, and outdoor use is burden-free.
4. Durable quality
Adopting high-toughness composite material frame + anti-corrosion coating process, it is durable and wear-resistant, suitable for both indoor and outdoor environments.
5. Multi-device intelligent adaptation
Perfectly compatible with Malachite SDR receivers, TEF6686 chip radios, amateur radio equipment, etc., SMA male plug and play

Specification:
Type: Ring Donut Antenna
Net weight: 19g
Receiving frequency band: 10kHz-180MHz
Interface type: standard SMA male connector
Colors: Black/Blue/Red

Package Included:
Option1:
1x Ring Receiving Antenna(Black/Blue/Red)
Option2:
1x Machine (Black/Blue/White)
1x Whip Antenna
1x USB-C Cable
Option3:
1x Machine (Black/Blue/White)
1x Ring Receiving Antenna(Black/Blue/Red)
1x Whip Antenna
1x USB-C Cable
