Raspberry Pi CM5 IO Expansion Board Enclosure Compute Module 5 IO Board Metal Heat Dissipation Enclosure

Features:

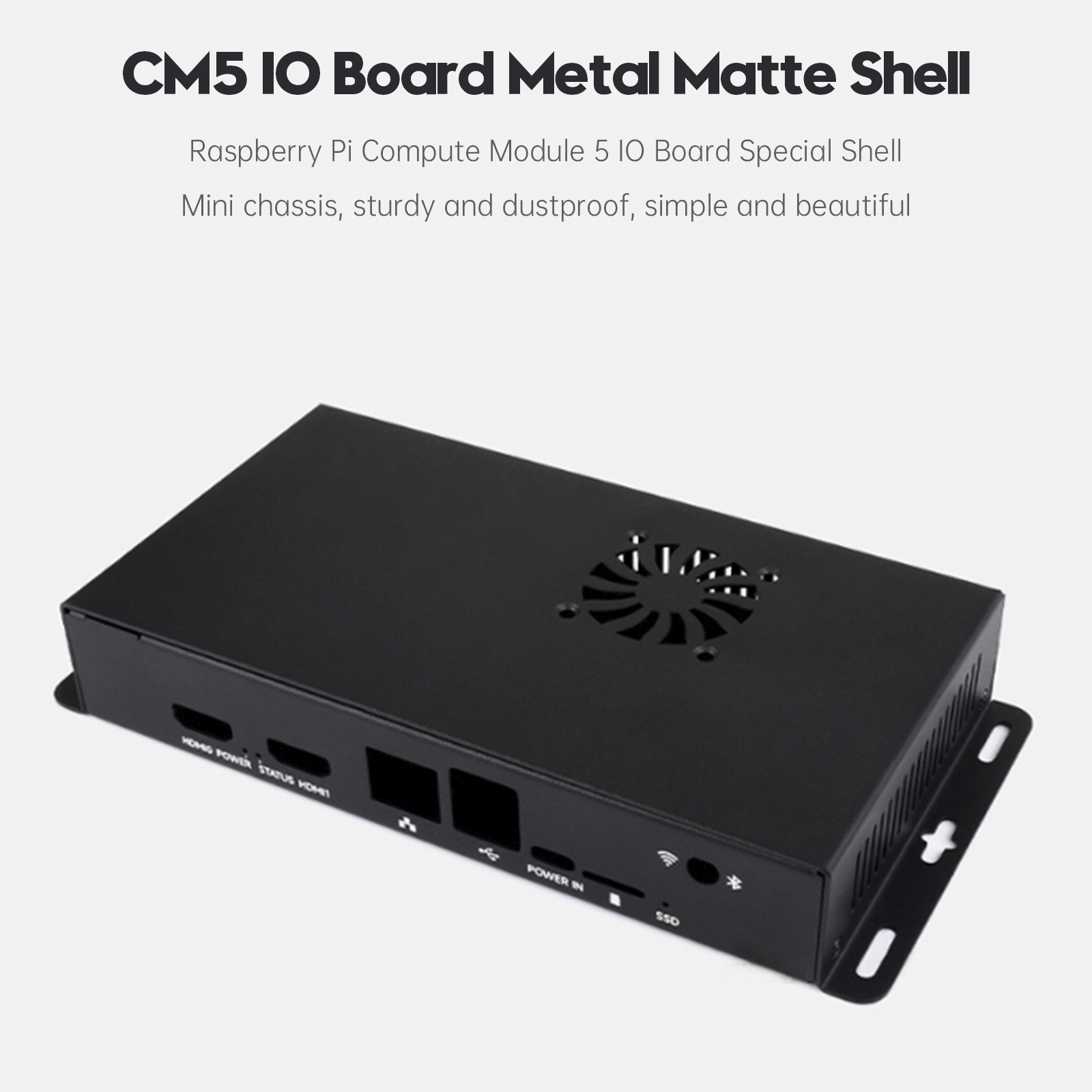

CM5 IO Board metal frosted case
Raspberry Pi Compute Module 5 10 Board dedicated case
Mini case
Sturdy and dustproof
Simple and beautiful

Description:
The internal structure of the chassis is tailor-made to build your own Raspberry Pi CM5 host

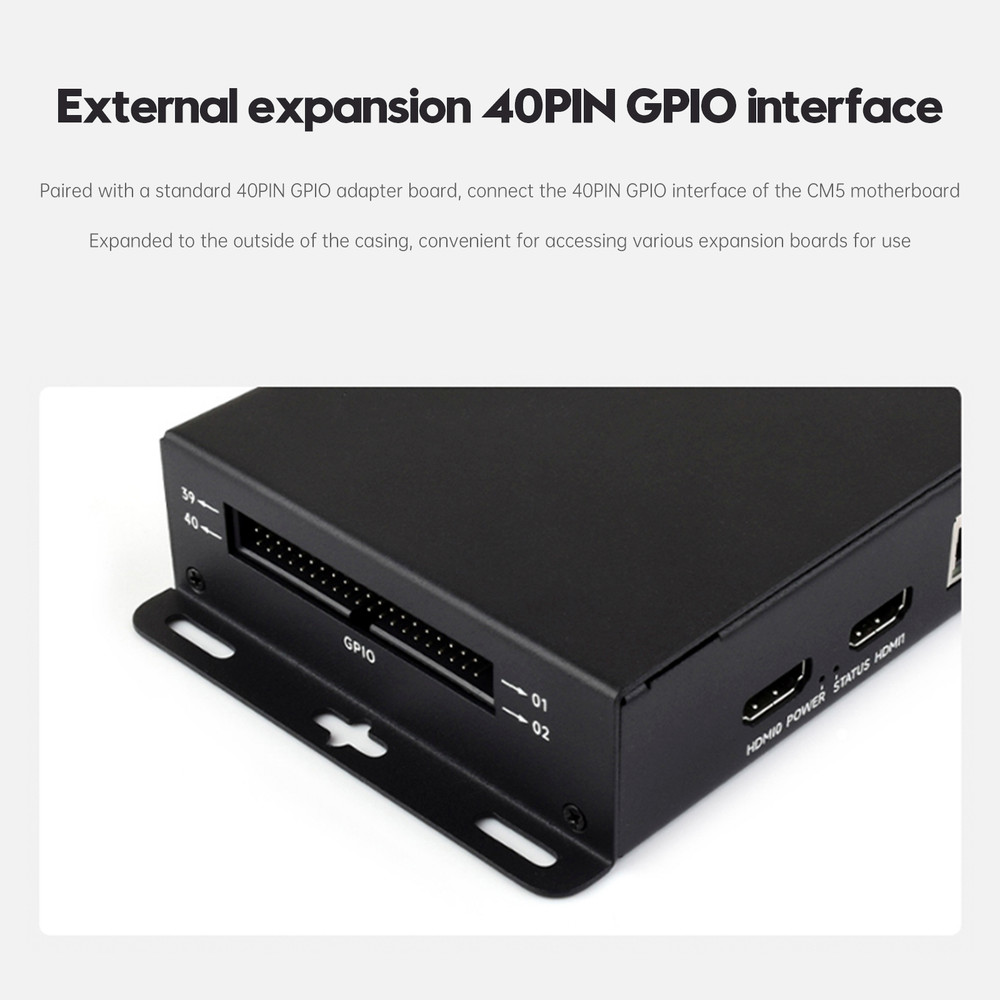

External expansion 40PIN GPIO interface, with a standard 40PIN GPIO adapter board, the 40PIN GPIO interface of the CM5 baseboard is expanded to the outside of the shell, which is convenient for access to various expansion boards
The meticulous hole design ensures that each interface can be highly fitted to the motherboard interface. There is a clear silk screen mark for easy viewing

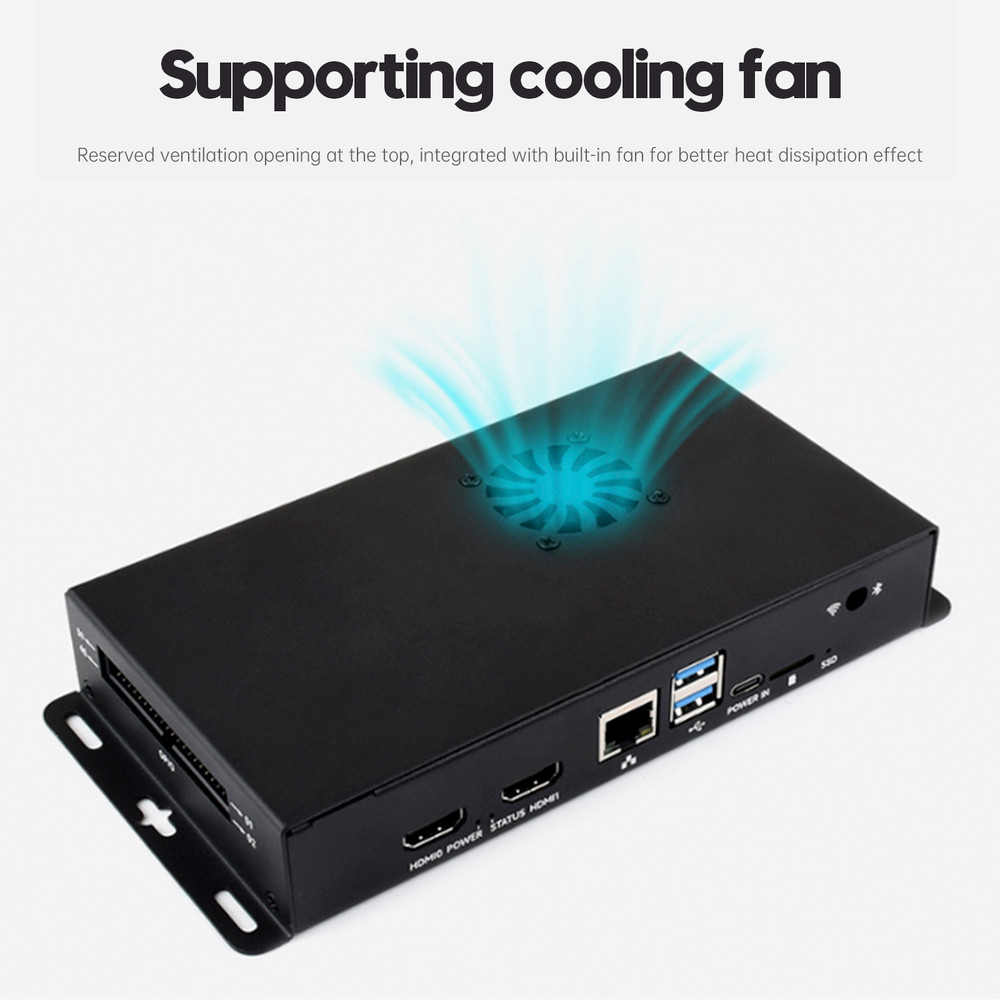

Equipped with a cooling fan, a vent is reserved on the top, and the built-in fan is integrated, which has a better heat dissipation effect

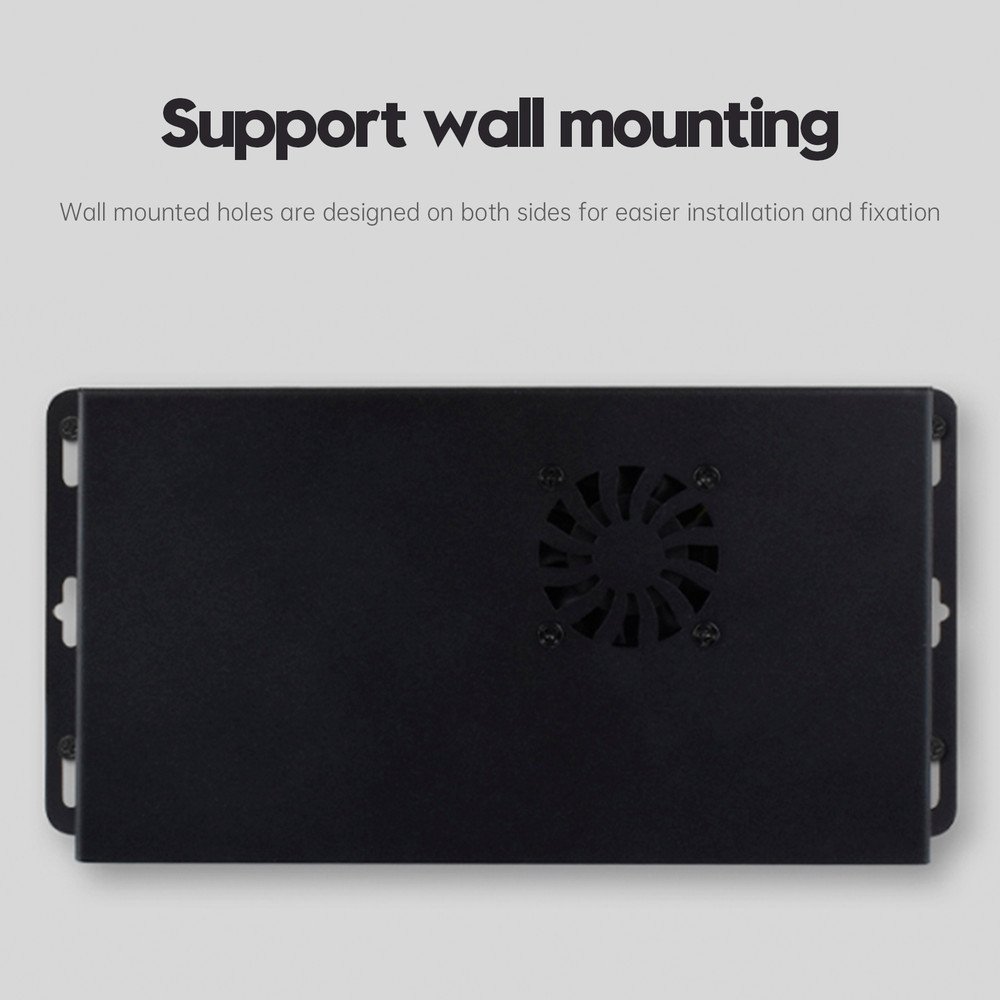

Support wall mounting, with wall mounting holes designed on both sides, which is more convenient for installation and fixing
Application example, suitable for binocular vision or Raspberry Pi applications or other industrial occasions that require PoE network port power supply

Installation steps:
1. After connecting the Raspberry Pi computing module core board baseboard and the GPIO adapter board, use copper columns and screws to fix them.
2. Use screwsâ‘§ to fix the Raspberry Pi computing module core board baseboard and the lower cover of the shell
3. Use screws and nuts⑨ to fix the fan and the upper cover of the shell①, and connect the fan to the fan connector.
4. Use screws to fix the upper and lower covers of the housing.

Package Included:
1x Metal case (upper and lower covers)
1x GPIO adapter board
1x CM5-FAN-4010-5V
1x Button plug
1x Button cap
1x Screwdriver
1x Screw pack
