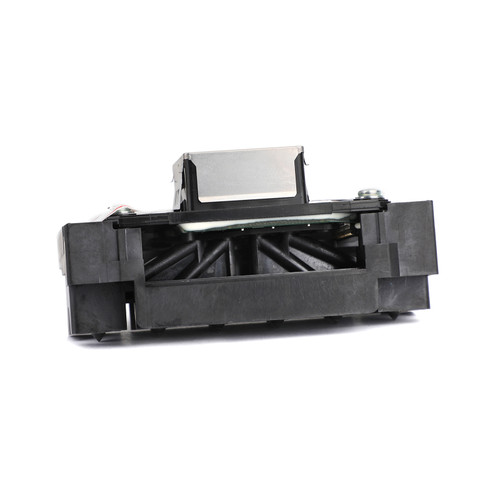

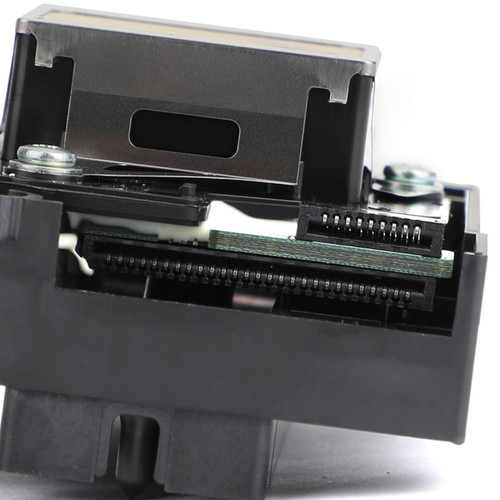

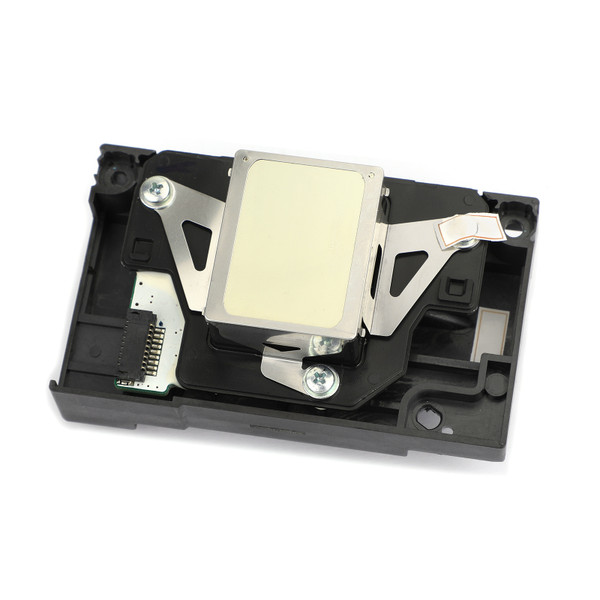

Reufrbished F173050 Printhead for 1390/1400/1410/1430

Feature:
Excellent performance and high quality.
Made of high-quality material, durable, firm and stable for us to use.
This is a cleaned, thoroughly tested and sealed Printhead.
Good stability, long lifespan.
Full color function.
Product Condition : Original Refurbished Printhead ,95% New.
Warranty : One Year Free Warranty , Life-long Service.
Size:80x50mm
OEM code: F173030/F173050/F173060/F173070

Compatible Models:
for epson Stylus Photo 1390/1400/1410/1430/L1800/1500W
for epson Stylus Photo R260/R265/R270/R330/R360/R380/R390
for epson Stylus Photo RX560/RX580/RX590
for epson Stylus Photo D870/G850/G4500/A820/A920

Packing includes:
1 x print head

Note:
1.In print entered please turn off the power of the printer, or it will cause the mainboard chip burned.
After loading the print head, please don't install ribbon overhead 10 pieces of A4 document,
so that make the new needle have a running-in process, and then put the ribbon. I hope you can be careful operation.

2.If the original print head was broken and especially leaked ink, the mainboard has burned possibly,
so please troubleshoot the problem of the mainboard before replacing the print head. In addition,
the F1,F2 fuze wire of mainboard can only be replaced by the original fuze that has same current value and same model.
If replacing fuze that is biger current value and different model, Both printhead and mainboard are possible to be broken.

3.Print head requires lots of attention, It is easy to cause man-made damage if a non-professionals replace printhead blindly.
There is a regulation that printhead is not warranty, and it is delicate and expensive.
please do not make commissioning on the machine, and please treat it with caution.

4.If you are not familiar with the machine, it is recommended that you had better send the print head to a repair station
or find professionals to replace the nozzle, so as to avoid unnecessary losses and unnecessary trouble.

5.Each printhead undergoes on-machine testing before shipment to ensure optimal print quality. Printers using this printhead all come with a built-in continuous ink supply system. After installation, you should first remove the ink from the ink tubes before printing and cleaning, as air can easily get into the ink tubes during installation. Ensure there is no air, and that waste ink flows normally from the waste ink tubes before printing and cleaning.
If all these steps are followed correctly and the printer still has missing needles or channels, instruct the customer to turn off the printer for 8 hours and then turn it back on for cleaning and printing. Do not unplug the power cord (simply turn it off).
This procedure applies to Epson XP600, TX800, and 1390 printers; after installation, you must remove the ink before printing and cleaning.
