Industrial Grade Isolated USB to 2-Way RS485 Serial Port Converter FT2232HL Chip Supports Rail Installation
Features:
Adopting the original FT2232HL chip solution, high-speed communication is stable, reliable and compatible. Supports USB expansion of 2 RS485 channels, which can communicate simultaneously and independently.

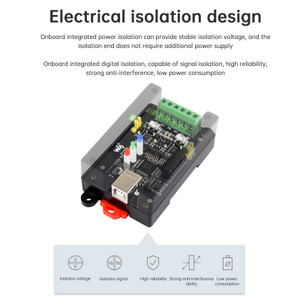

Onboard integrated power isolation can provide stable isolation voltage, and no additional power supply is required for the isolation end.

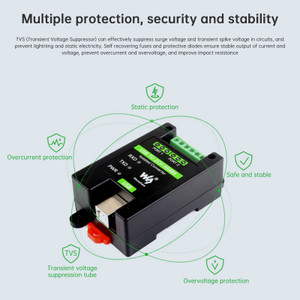

Onboard integrated digital isolation can be used for signal isolation, with high reliability, strong anti-interference and low power consumption. Onboard TVS (transient voltage suppression tube) can effectively suppress surge voltage and transient spike voltage in the circuit, lightning protection and anti-static.
Onboard self-recovery fuse and protection diode can ensure stable output of current and voltage, prevent overcurrent and overvoltage, and improve impact resistance.
Built-in RS485 output terminal 120R resistor, which can be enabled through jumper cap, flexible switching. External 3 LED indicators are convenient for checking power supply and signal receiving and sending status.
Industrial rail-type ABS environmentally friendly shell, compact size, easy installation, high cost performance
Specification:
Type: Industrial-grade isolated USB to RS485 converter
Host interface: USB
Device interface: RS485
USB interface
Working level: 5V
Interface type: USB-B type interface
Interface protection: 200mA self-recovery fuse, isolated output
Transmission distance: about 5 meters
Isolated RS485 interface
Interface type: Terminal block
Direction control: Hardware automatically determines and controls the direction of data transmission
Interface protection: Provides 600W lightning protection, surge and 15KV electrostatic protection (onboard 120R balancing resistor)

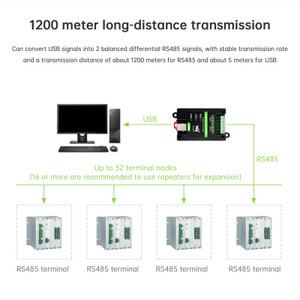

Transmission distance: about 1200 meters (under low rate conditions)
Transmission mode: point-to-many (up to 32 nodes, repeaters are recommended for more than 16 nodes)
Communication rate: 300bps ~3Mbps
Indicator light
PWR: Power indicator light, connected to USB, red light turns on when voltage is detected
TXD: Transmit indicator light, green light turns on when data is sent from the USB port
RXD: Receive indicator light, blue light turns on when data is sent back from the device interface
Usage environment
Temperature range: -15℃ ~70℃
Humidity range: 5%RH~ 95%RH
Operating system: macOS, Linux, Android, Windows 11/10/8.1/8/7
Product appearance

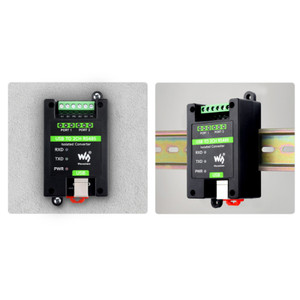

Casing: Rail-type ABS environmentally friendly casing, suitable for 35mm DIN rail

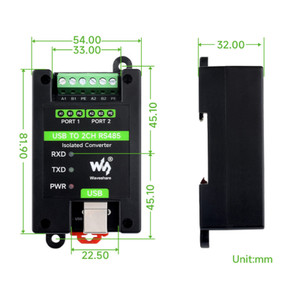

Dimensions: 81.9 x 54.0 x 32.0mm
Package Include:
1x USB TO 2CH RS485
1x USB cable type A male to type B male, about 1.2 meters
1x Screwdriver
