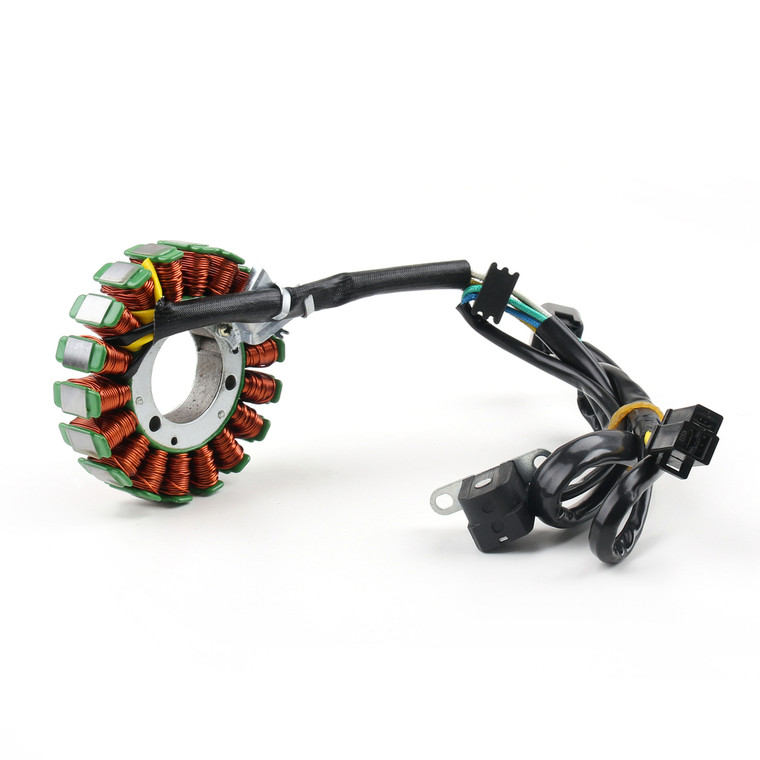

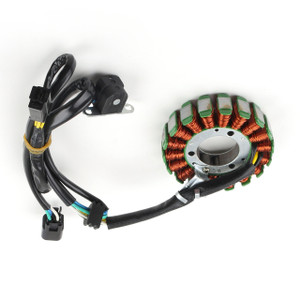

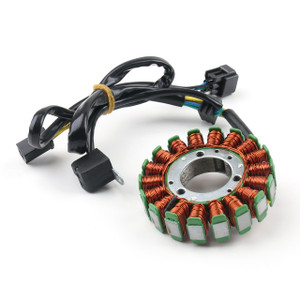

Magneto Generator Engine Stator Coil For Suzuki DRZ250 '01-'07 DRZ400 DRZ400E DRZ400SM 2000-2016 Kawasaki KLX400 R/SR 2003-2004
FEATURES:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.
Highest grade copper windings, resistant to 200 degrees Celsius.

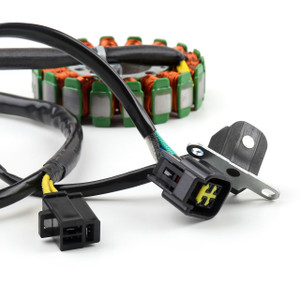

Pick up pulsar coil included.
Connector included.
All products shipped are tested.
Installation instruction NOT included.
SPECIFICATIONS:
Condition: Aftermarket 100% Brand New
Quanity: 1PC
Type: Generator Stator Coil
OEM Replacement Part Number:
For Suzuki 32101-29F00
For Suzuki 32101-29F10
For Suzuki 32101-13E00
For Suzuki 32101-13E02
For Suzuki 32101-13E03
For Kawasaki 21003-S007
Dimensions :
Interior diameter : 35mm / 1.38"
Exterior diameter : 93mm / 3.65"
Thickness : 9mm / 0.36"
Other specifications :
Number of wires: 7
Number of pins: 7
Number of plugs: 2
Number of fixation holes: 3
FITMENT:
For Suzuki DRZ250 2001-2007
For Suzuki DRZ400 2000-2013
For Suzuki DRZ400E 2000-2007
For Suzuki DRZ400SM 2000-2016
For Kawasaki KLX400 KLX400R 2003-2004
For Kawasaki KLX400 KLX400SR 2003-2004
PACKAGE INCLUDED:
1x Generator Stator Coil
NOTICE:
Before installing your new stator
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
